Dual USB 40W Solar Panel 10A for Car Yacht RV Light Charging
Brand TEEJOIN
Product origin China
Delivery time 3-7days
Supply capacity 100000000000
For charging cell phones, MP3s, tablets or other USB-charged devices. Dual USB female ports for easy charging of devices via USB charging cable. You can place the panel in the sun and use it to charge your devices directly. Perfect for outdoor riding, mountain climbing, hiking, camping, traveling, etc.

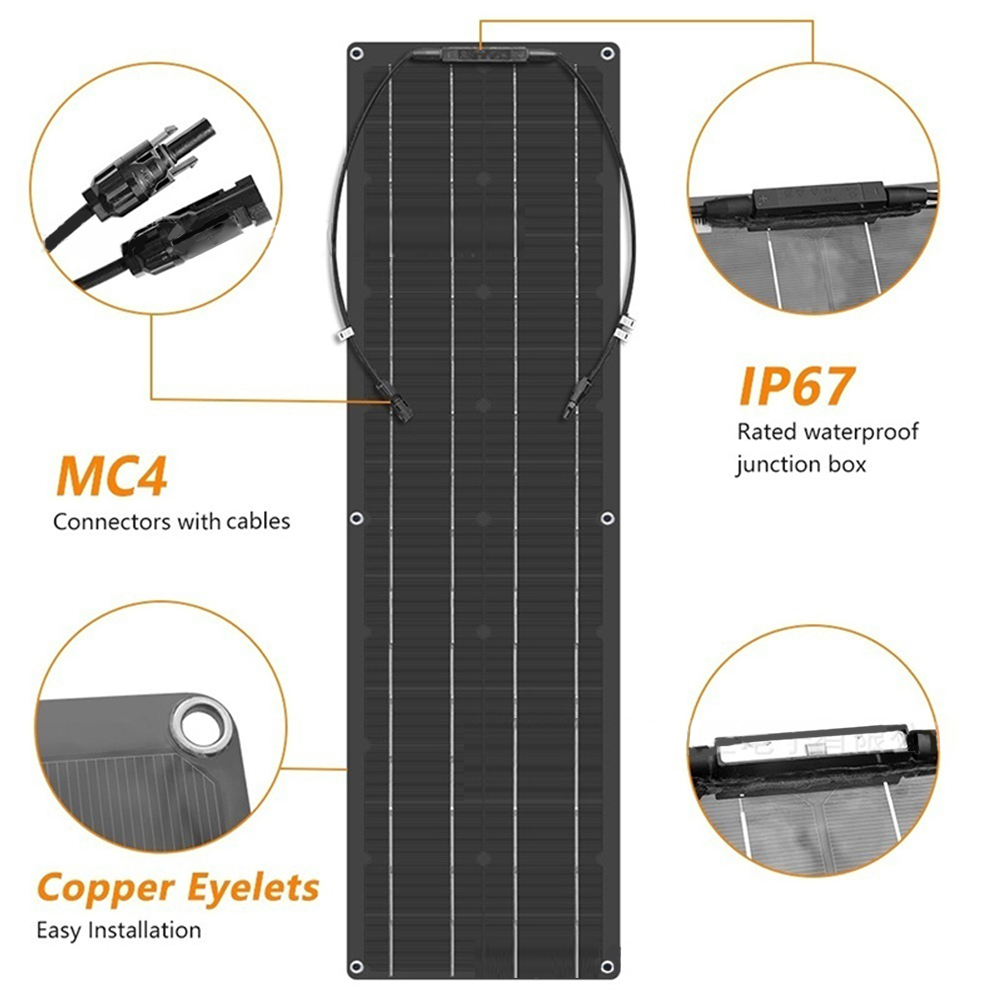

Dual USB 40W Flexible Solar Panel 10A for Rooftop and RV
40 Watt 10A Flexible Solar Panel Specification
40 Watt Flexible Solar Panels are Suitable for：
Dual USB 40W Solar Panel with 10/20/30/40/50A Dual USB Solar Panel Regulator Controller etc. for Car Yacht RV Light Charging
Solar Controller: 1.
Built-in industrial microcontroller.
2.Fully 4-stage PWM charging management.

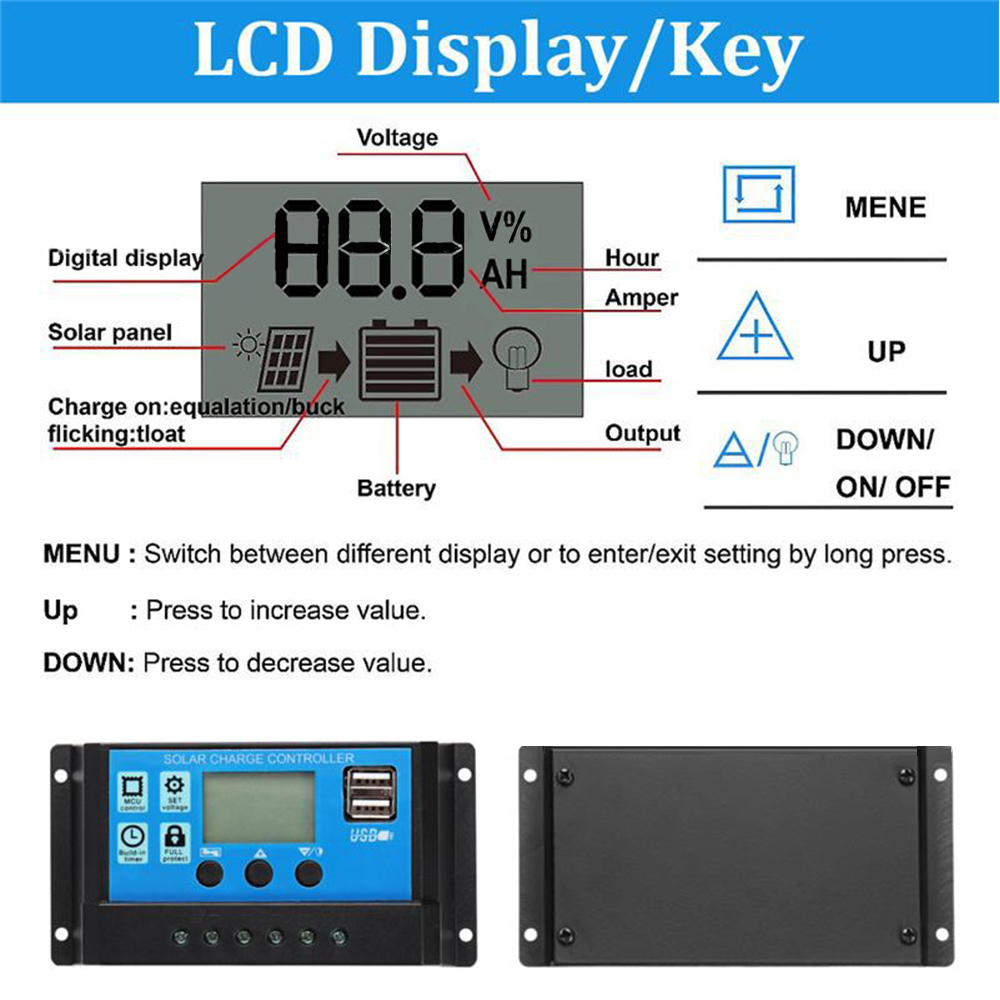

3.One key setting, digital display, automatic memory function.
4.Dual mosfet reverse current protection, low heat generation.
5.Built-in short circuit protection, open circuit protection, reverse protection, overload protection.
Specification:
40W Flexible Solar panel: High Efficiency mono silicone
| Power(Pmax) | 40W |
| Output Tolerance | ± 3 |
| System Voltage | 700V DC |
| Open Circuit Voltage(Voc) | 20V |
| Short circuit current (Isc) | 3.33 |
| Supply Voltage(Vmp) | 18V |
| Supply Current(Imp) | 2.77A |
| Battery Efficiency | 21% |
| Conversion rate: | 19.6-20 |
| Operating Temperature (NOCT) | 45±2°C |
| Temperature range | -40℃～+80℃ |
| Battery Quantity | 32pcs |
| Weight | 1100g |
| Size | 1060*277*3 mm |
| Color | Black |
| Standard Test Conditions: | lrradiance 1000w/m^2, Temperature 25℃, AM=1.5 |

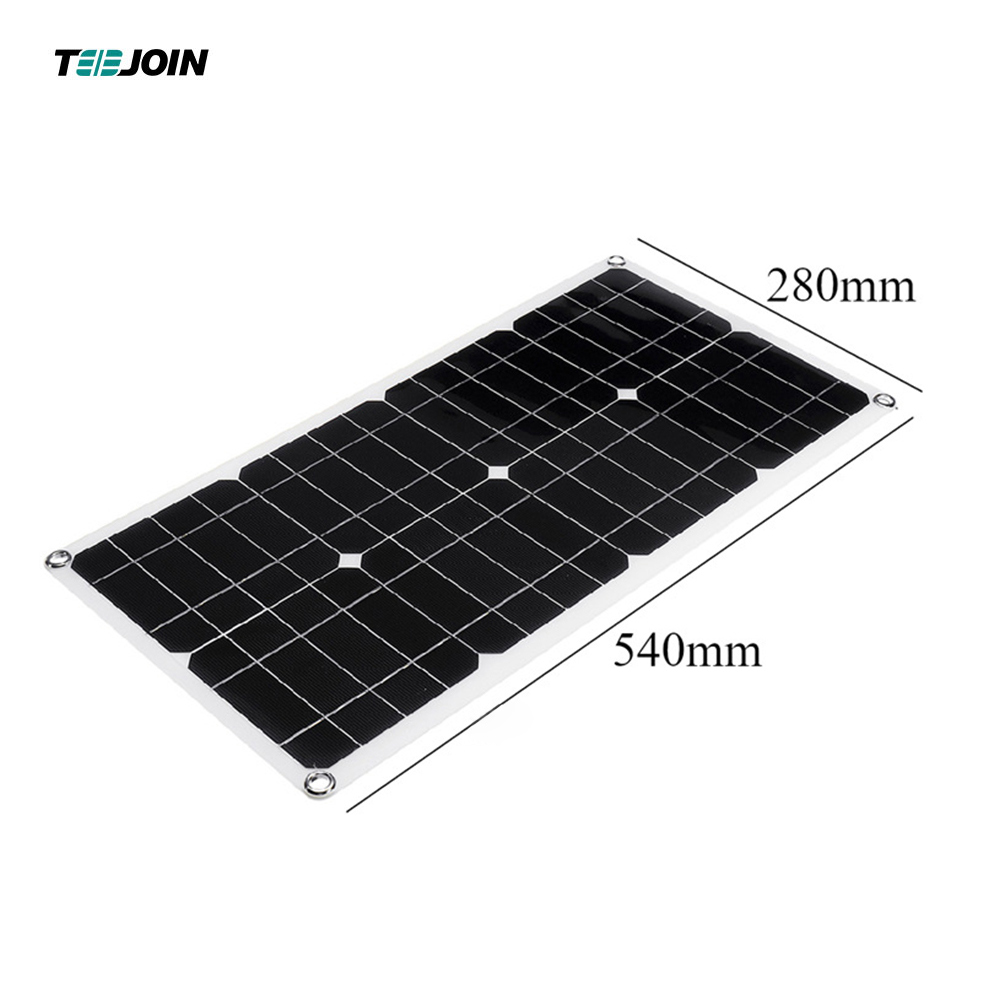

| Size: | 540 * 280 * 2.5mm |
| Waterproof rate: | IP65 |
| Number of USB ports: | Dual |
| Material: | monocrystalline silicon battery |
| Suitable for: | cycling, mountaineering, hiking, camping, traveling, etc. |

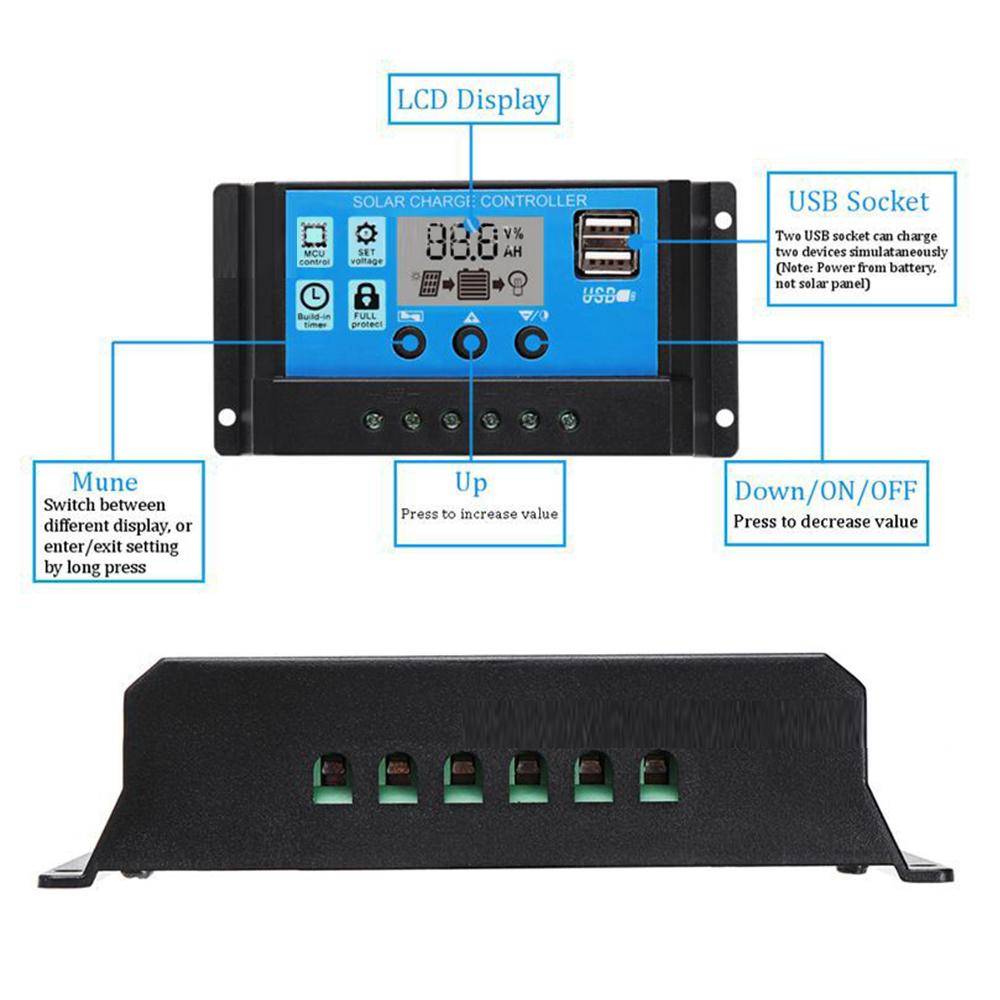

Solar Controller:
Model: PWM | Buck charging: 28.8 |
| Float charging: 27.4V | USB output: 5V / 3A |
| Self-consumption: <10mA | Discharge stop: 21.4V |
| Voltage: DC 12V / 24V | Maximum solar input: <50V |
| Current: 10A | Discharge reconnect: 25.2V |
| Rated operating current: ≤20A | Operating temperature: -35℃~60 |
| Output voltage: 12V / 24V auto voltage differentiation | |
Timer and light sensor for solar light system (only for off-grid photovoltaic solar system)
- For 10A 12V photovoltaic system: 120W solar panel, 12V lead-acid battery, maximum input voltage 21V.
- For 10A 24V PV systems: 240W solar panel, 24V lead-acid battery, max. input voltage 42V.
40W Flexible Solar Panel 10A Dual USB
40W Solar Flexible Panel Description:
The 40W Solar Flexible Panel kit is a versatile and efficient solar power solution, ideal for a variety of applications, including recreational vehicles (RVs), boats, and off-grid power systems. This kit offers flexible configurations to meet your energy needs, providing everything you need to harness solar power effectively.
Safety Instructions: 1.
Ensure that the battery voltage is sufficient for the controller to recognize the battery type prior to initial installation.
2.Battery cables should be as short as possible to minimize loss.
3. The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL (not for NiMH, Li-Ion or other batteries).
4. The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

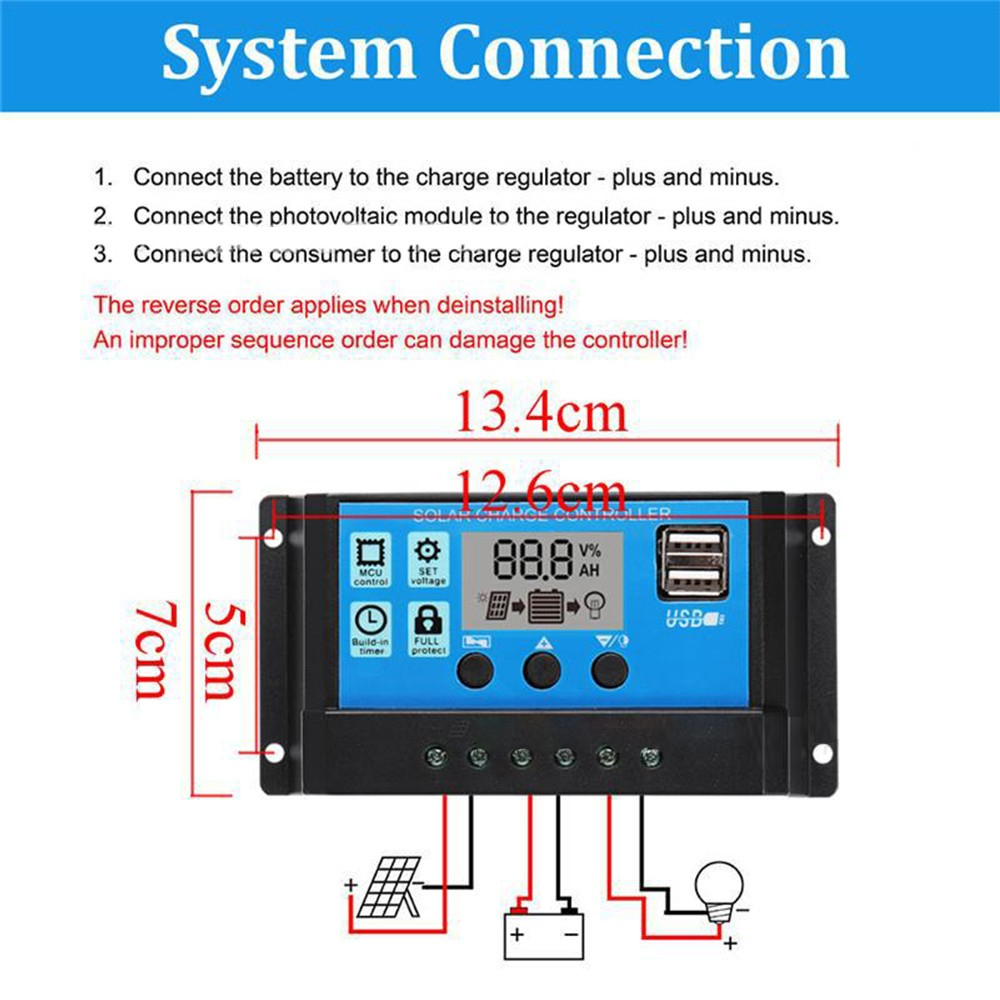

System Connections: 1.
Connect the battery to the charge regulator - plus and minus. Display 1 if a 12V battery is detected and 2 if a 24V battery is detected.
2. Connect the PV module to the regulator - plus and minus.
3. connect the consumer to the charge regulator - plus and minus.
Caution:
Please allow 0-2mm error due to manual measurement. Please make sure you don't mind before bidding
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thanks!

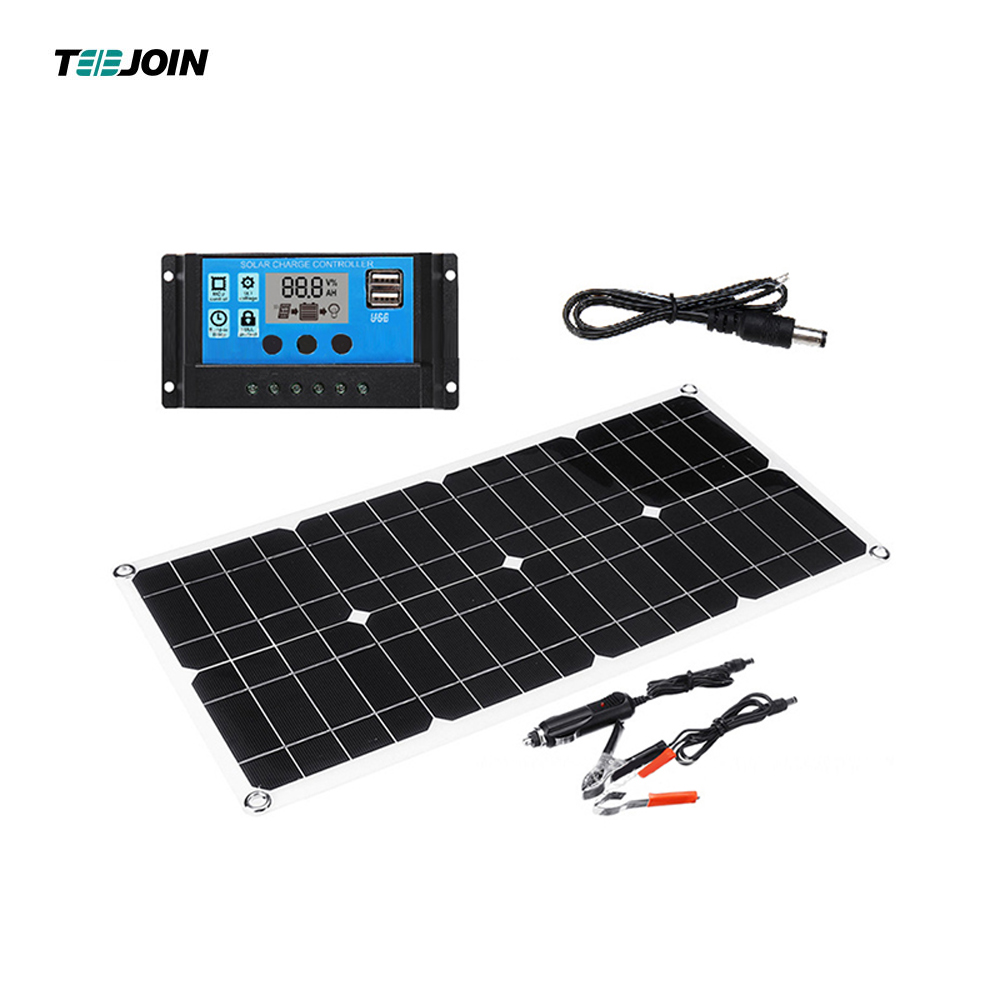

Package Includes:
1X 40W solar panel
1X solar controller (10/20/30 / 40A)
1X 30cm DC male cable

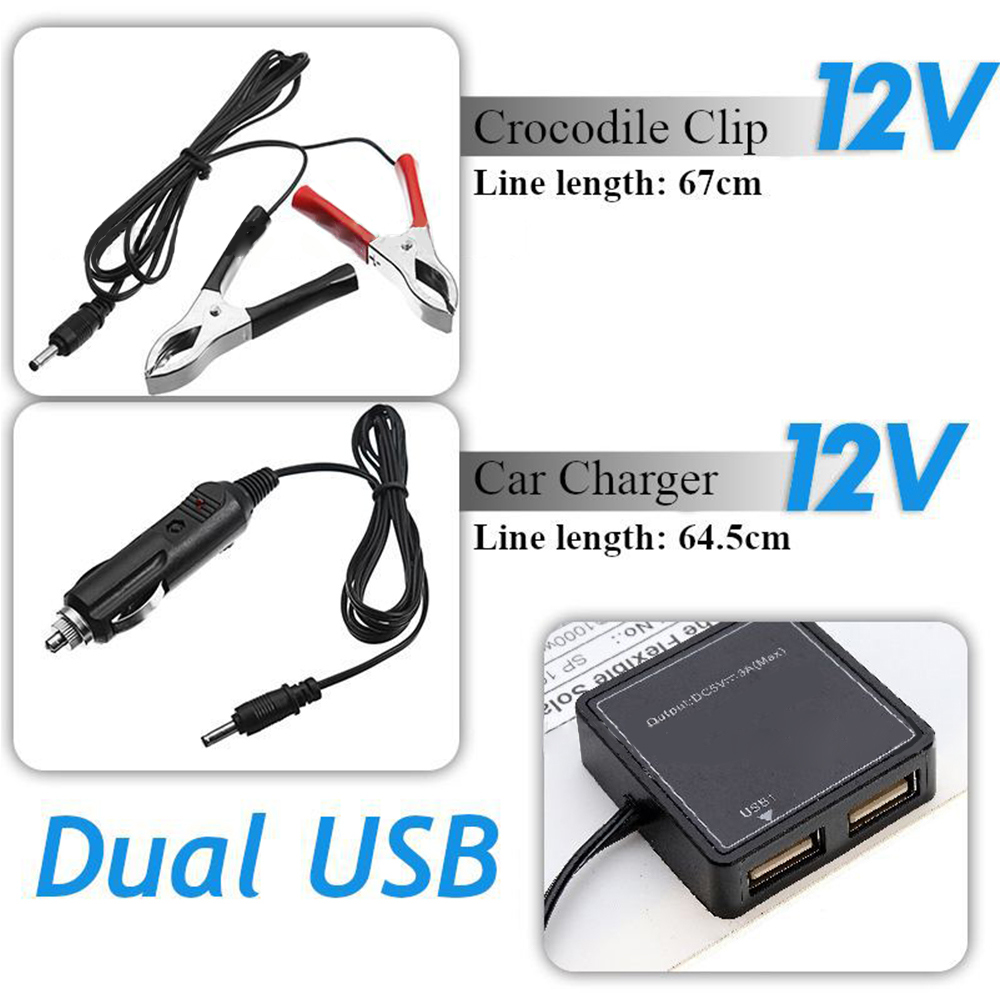

1X Alligator Clip
1X Car Charger
1X User Manual
