Foldable mini 12v 80w Mono solar panel 20w flexible solar panels
Brand TEEJOIN
Product origin China
Delivery time 3-7days
Supply capacity 100000000000
We are manufacturer of Solar Panel in China, if you want to buy Flexible Solar Panels,Portable Solar Panels,Sunpower Solar Panels ，SOLAR ENERGY System Please contact us.Contact us online today to customize the solar panel design you want.

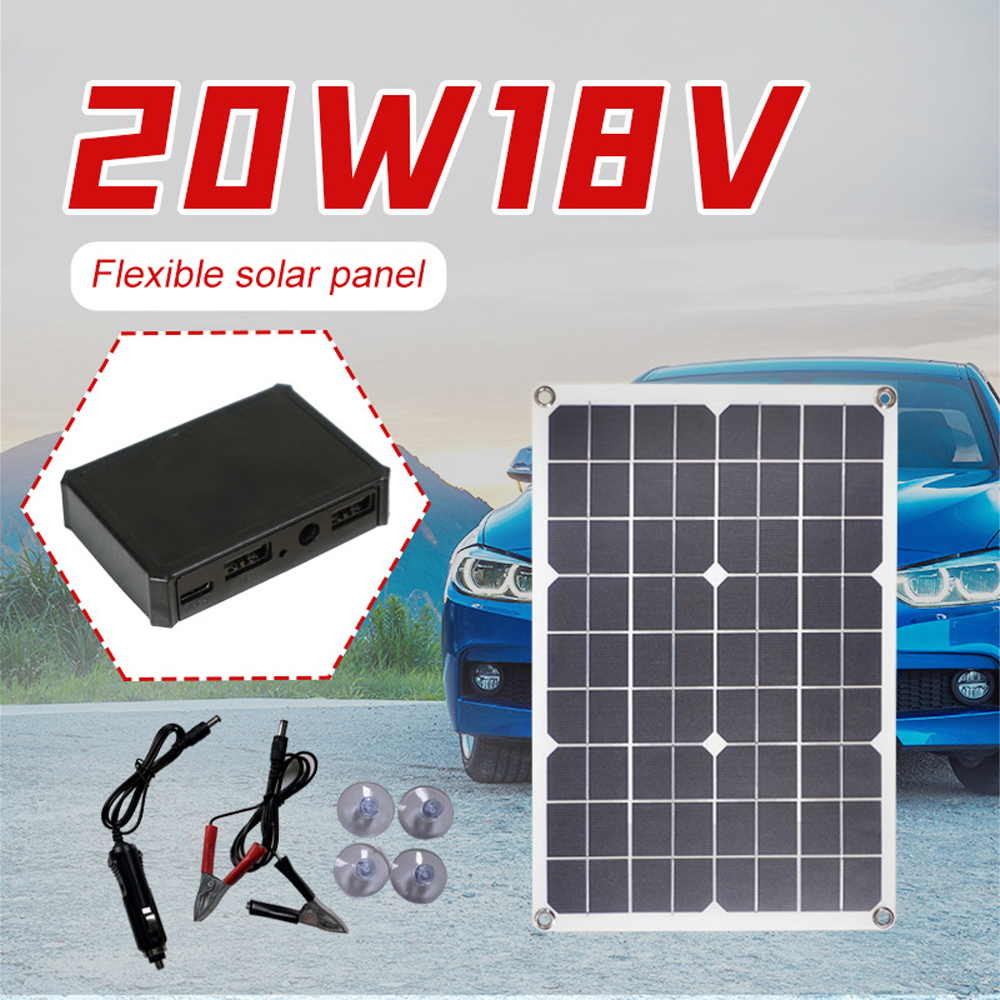

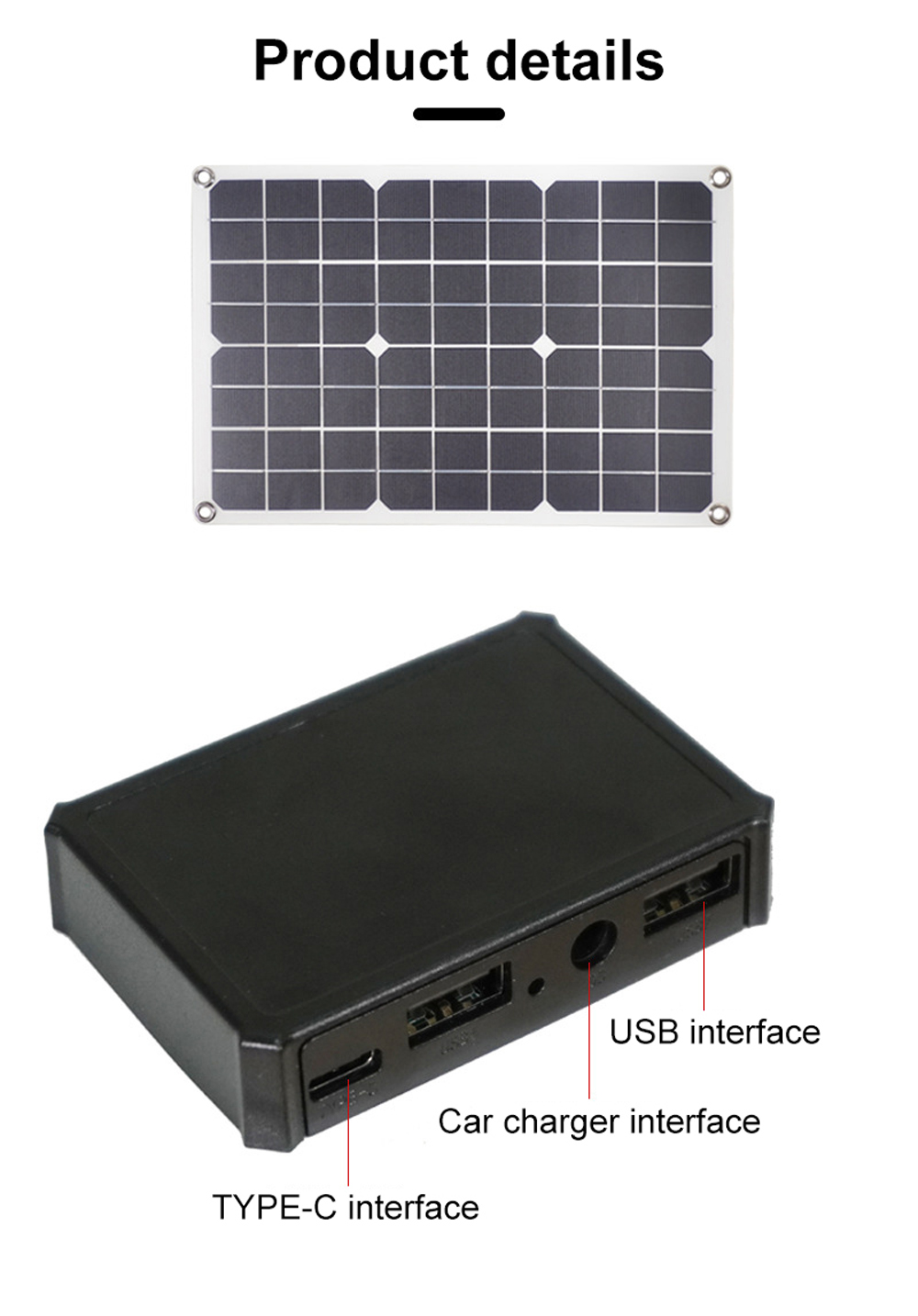

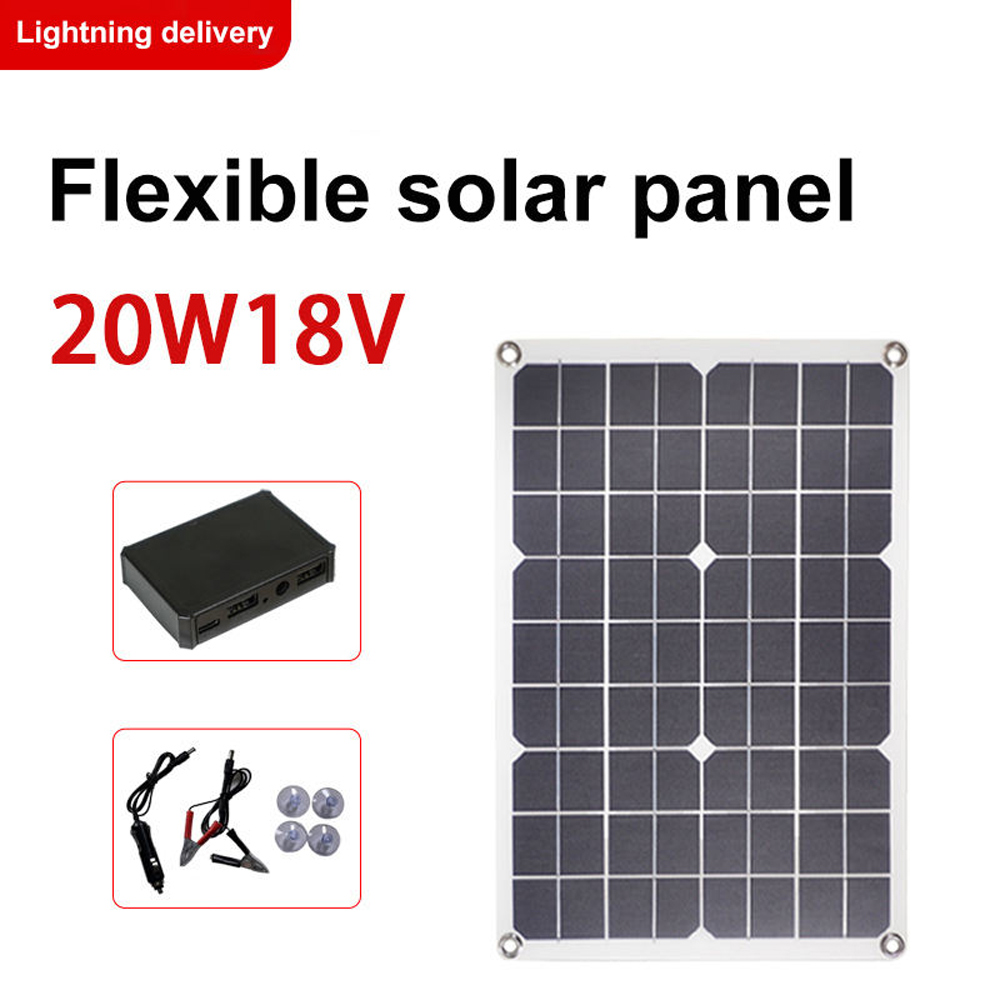

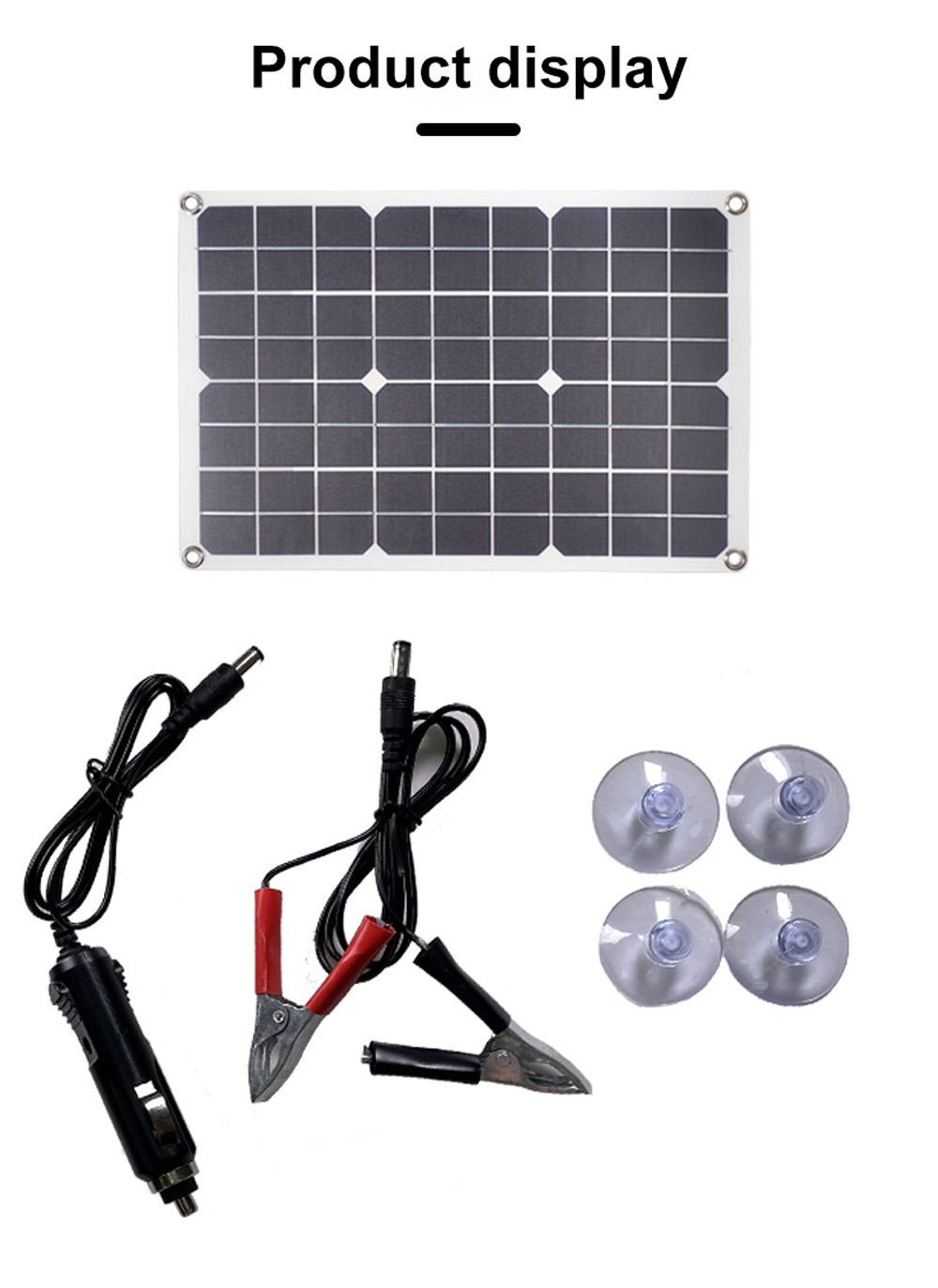

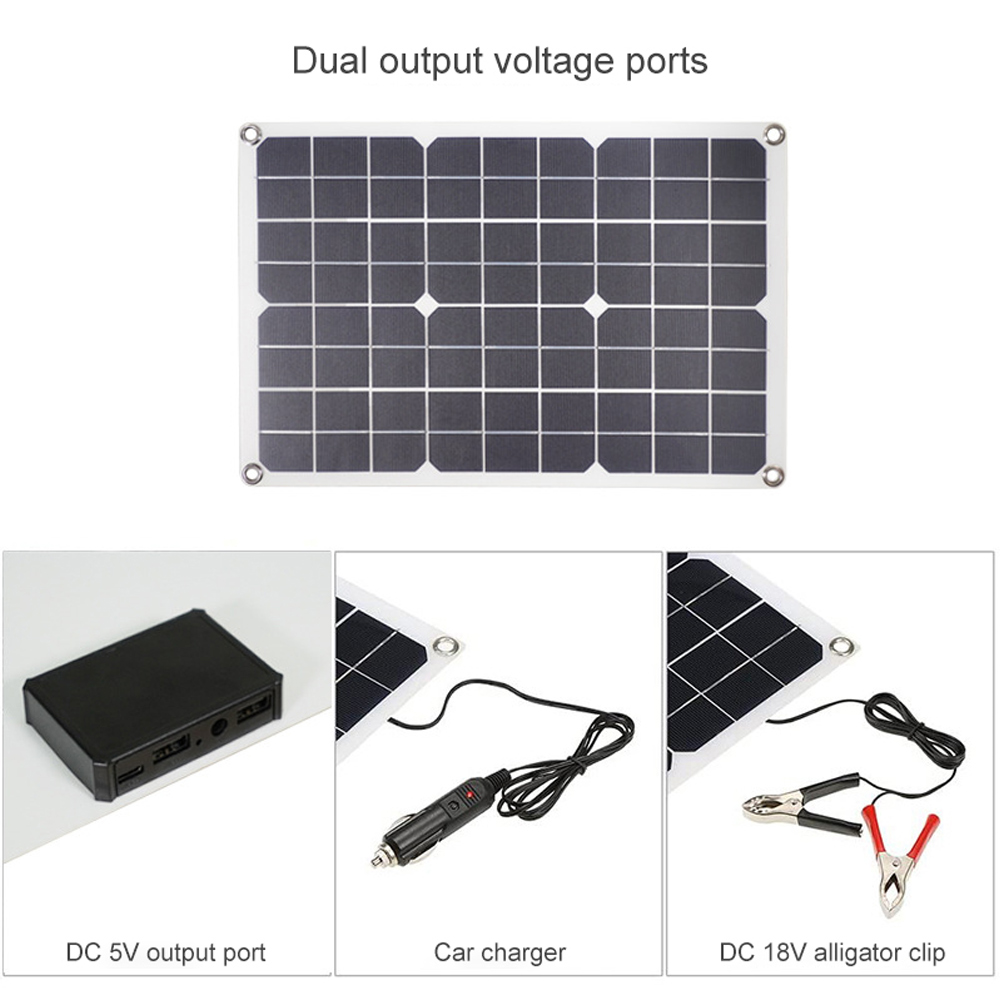

20W 18V Flexible Solar Panel for RV
20W 18V Flexible Solar Panel Specification
20 Watt 18V Flexible Solar Panels are Suitable for：
Flexible SOLAR Panel Light，Thin design,Ultra Flexible,Customizable,Convenient Installation,High Efficiency And Reliability,Lead Free
Light，Thin design
20Watt Flexible SOLAR Panel 0.5kg weight, 2.5mm thickness, match various requirements for
low-load projects
Ultra Flexible

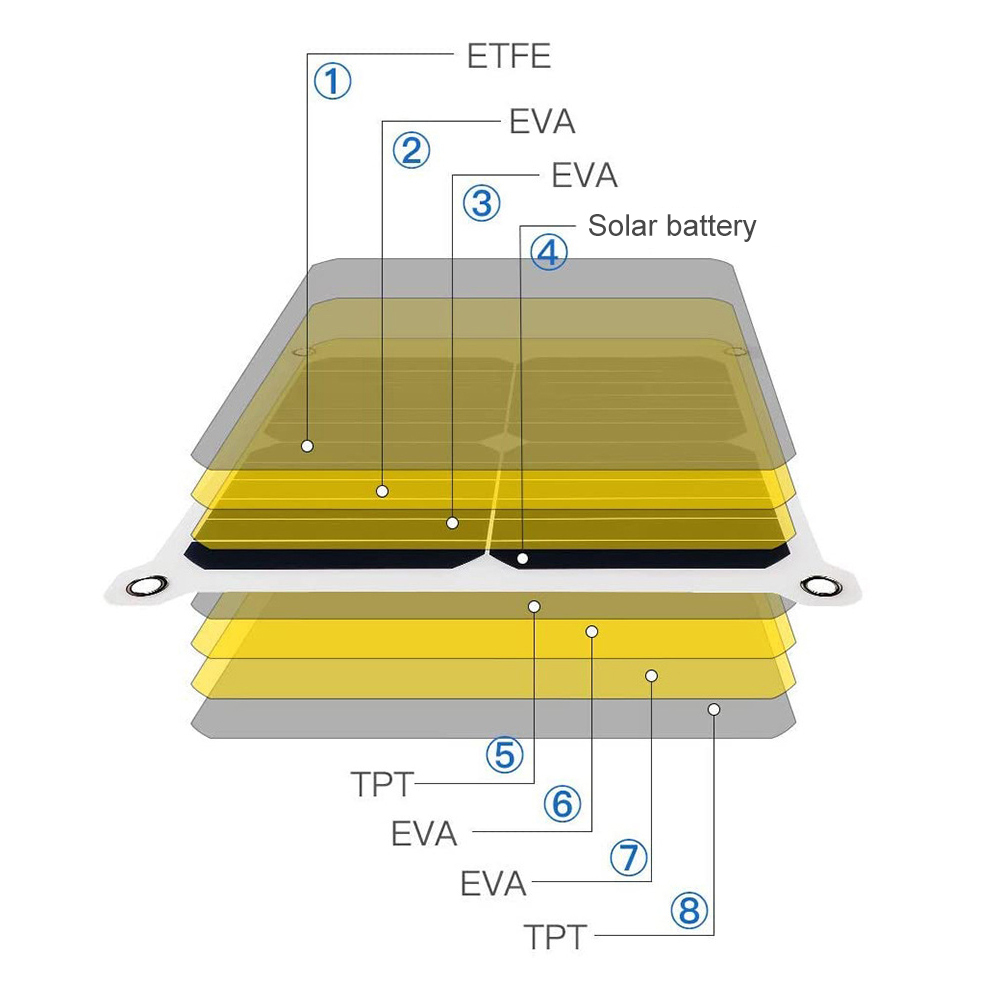

Ultra-thin silicon wafers with advanced organic polymer encapsulation
materials, minimum bending radius reach 0.30m，fit all kinds of curved
surface perfectly
Customizable Solar Panel
Customized design for different scenarios
Convenient Installation
Easy installation and convenient transportation with lower cost
High Efficiency And Reliability
Busbar-free design increases cell conversion efficiency，more power
output can be achieved at low irradiance conditions
Lead Free

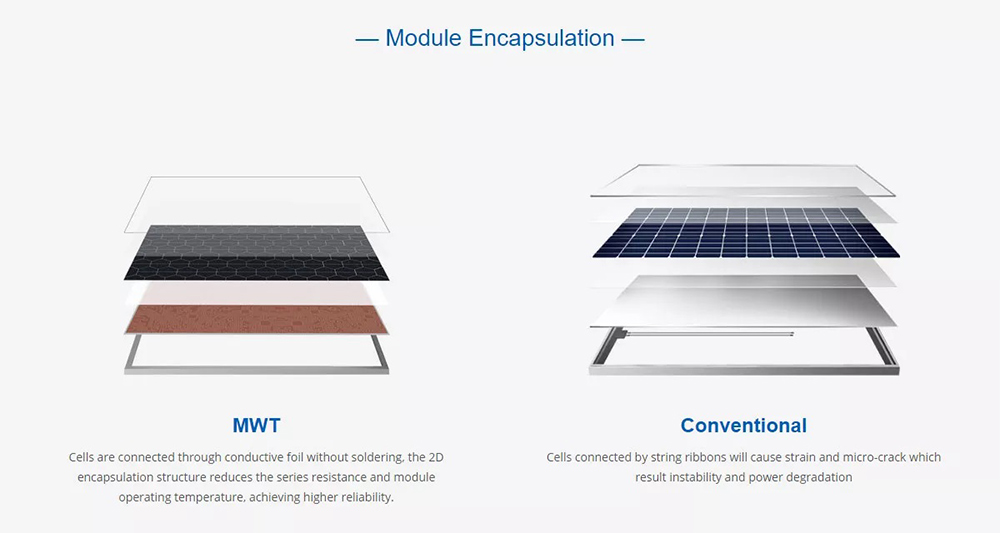

Eco-friendly PV design achieves lead-free MWT module without soldering materials

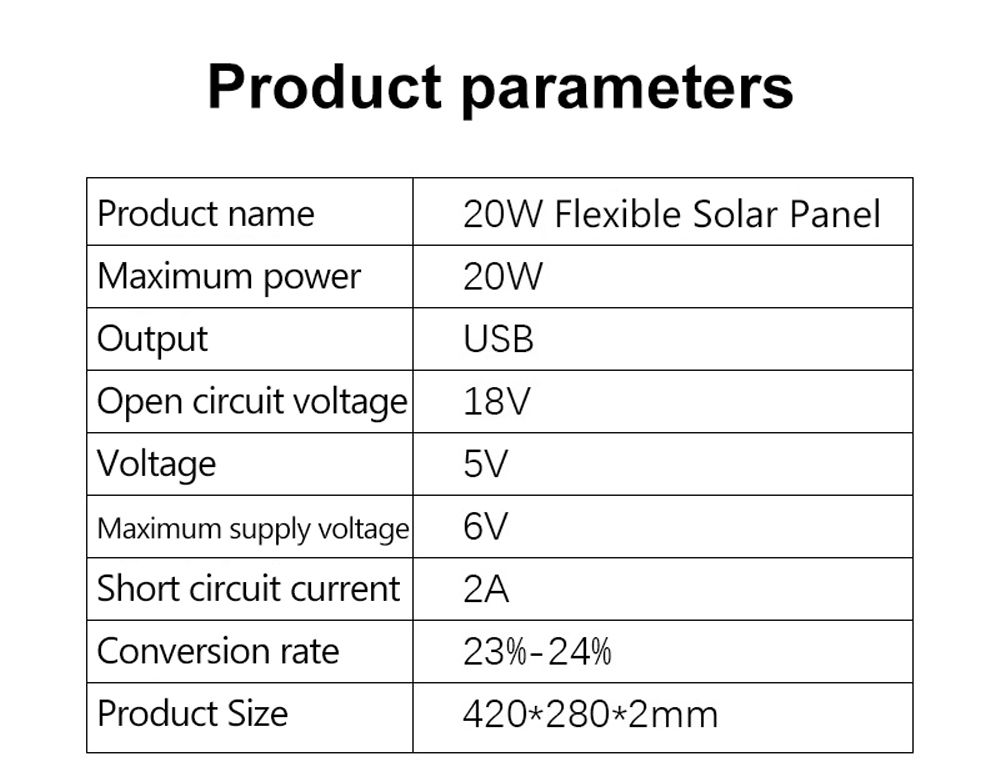

| 20w flexible solar panel | |
torlerance 0~+5w | Max working voltage（Vm）：6V |
| Max working current（Im）5A | Open circuit voltage（Voc）18V |
| Short circuit current（Isc）2A | efficiency（ηm）23%-24% |

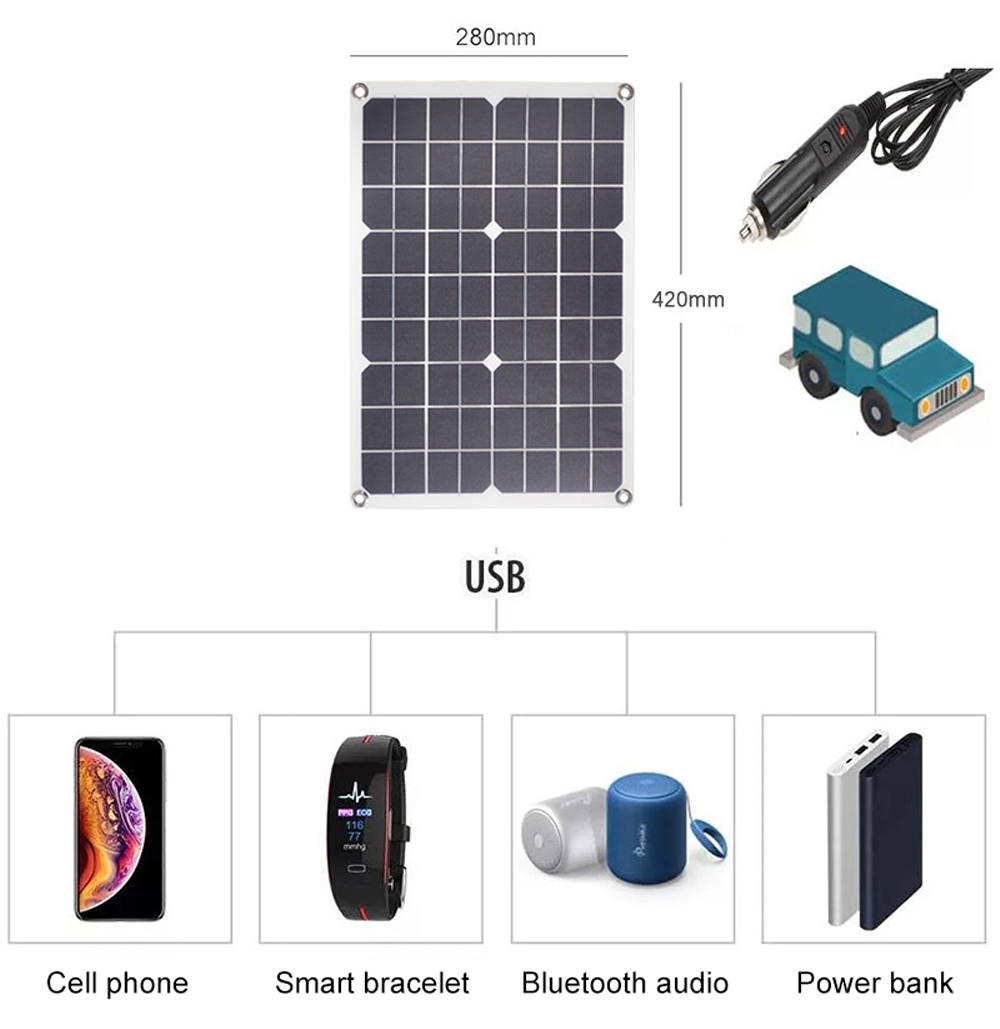

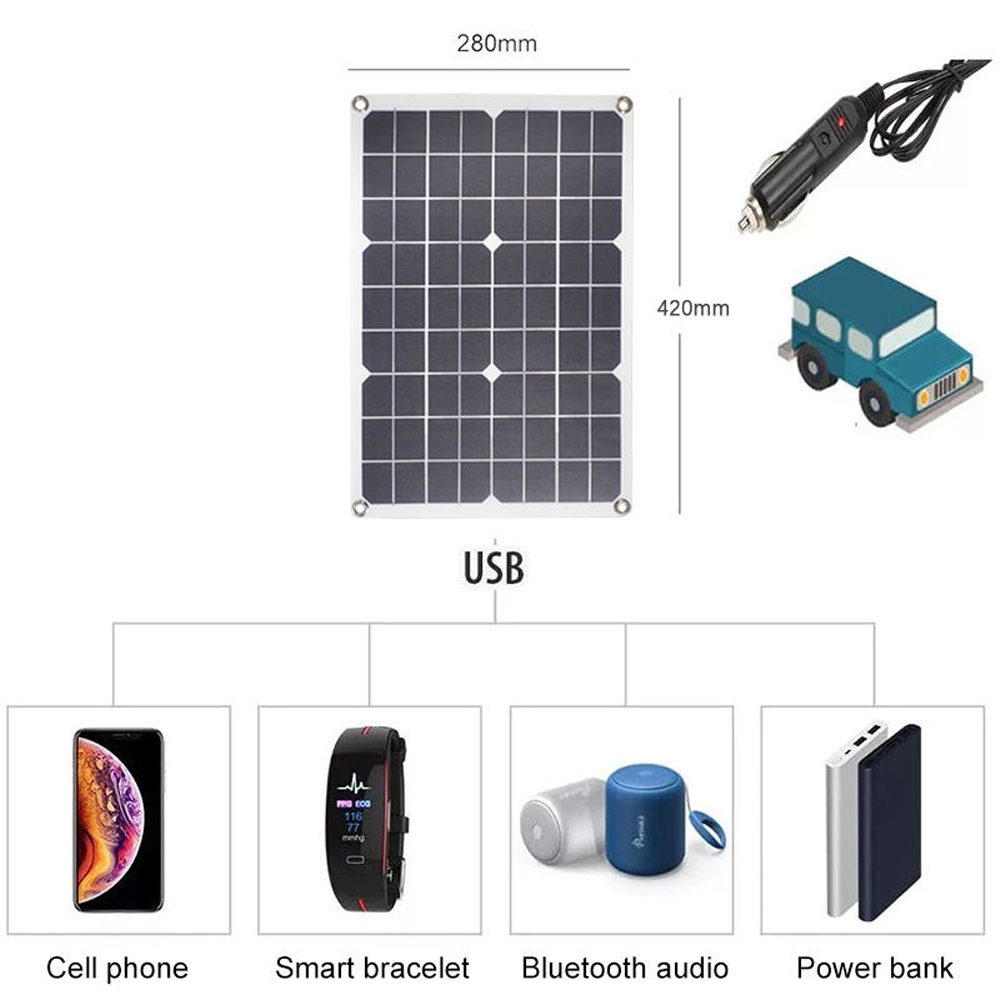

| Size: 420×280×2mm | Weight: 0.5kgs |
| Solar cell: 30(10*3)/mono | Encapsulation material: EVA/POE |
| Junction box: IP67 | |

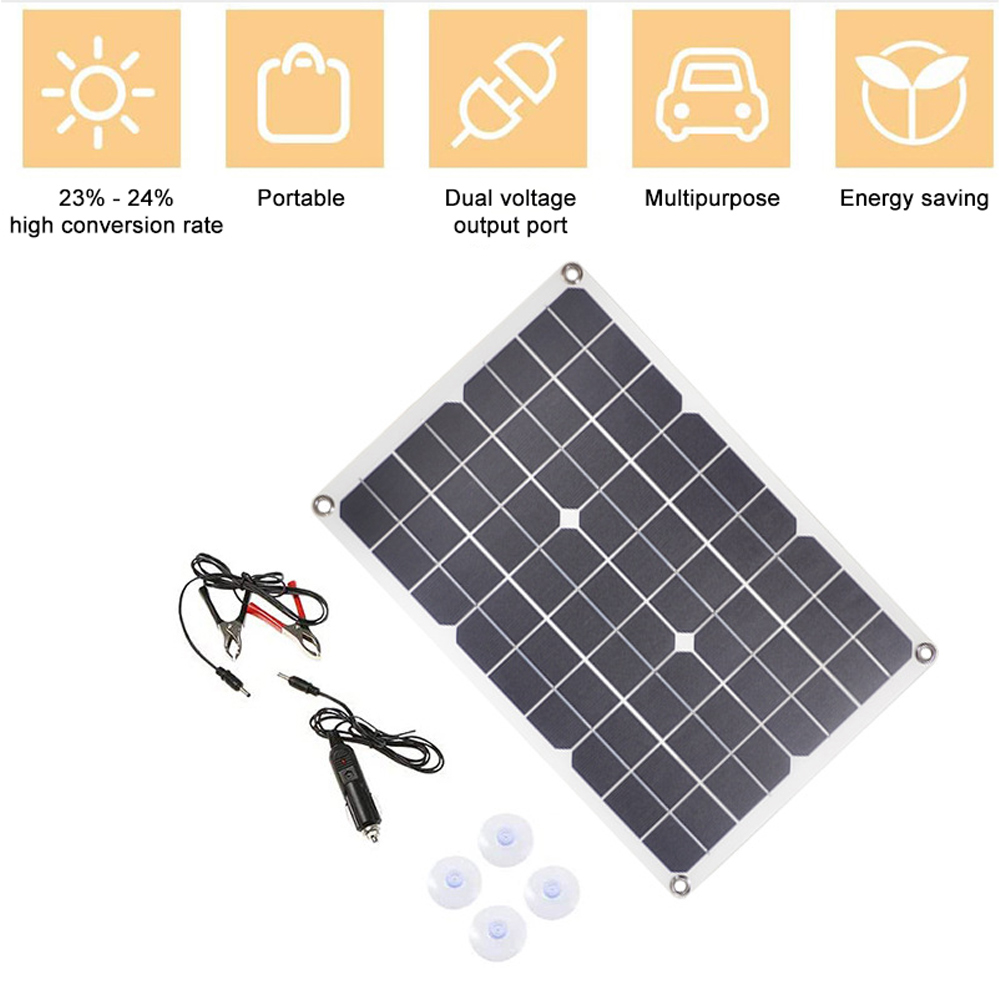

Flexible, and can be properly bent to use a wider range of applications.High conversion efficiency, good output efficiency, low light effect, light weight, easy to carry, strong applicability.With SUNPOWER chip, can be used for car ,home, boat, motorcycle, etc.
* It can bend 360 degrees
*Wider application scenarios
*Light weight,flexible,Common applications includes RV, camper, SUV, marine, Boat residential rooftop, curved service etc.
These new flexible solar panel use the latest technology to increase the efficiency(up to 20.5%) of these monocrystalline solar panels.
flexible solar panel size | power | material | |
545*356mm | 35W | PET/ETFE | |
544*520MM | 50W | PET/ETFE | |
1065*520MM | 100W | PET/ETFE | |
1810*290MM | 85W | PET/ETFE | |
2010*368MM | 130W | PET/ETFE | |
1639*699MM | 220W | PET/ETFE | |
Specification
Temperature factory | Mechanical capacity | |||
Solar cell operating temperature（NMOT） | 43±2℃ | Size (L ×W × H) | 1190*540*2.5MM | |
Power temperature factory | -0.36%/℃ | Weight | 2kg | |
Voltage temperature factory | -0.28%/℃ | Back material | background（white） | |
Current temperature factory | 0.06%/℃ | Solar cell | 166*166mm | |
Operating condition | Encapsulation material | EVA | ||
Max system voltage | DC1000V(TUV) | frame | no | |
max fuse rated current | 15A | Junction box | no | |
Operating temperature range | -40℃～+85℃ | cable size | / | |
Maximum Power Pmax | 100W | |||
Maximum Power Voltage（Vmp） | 18V | |||
Maximum Power Current（Lmp） | 5.58A | |||
Open Circuit Voltage（Voc） | 21.24V | |||
Short circuit current（lsc） | 3.12A | |||
cell efficiency | 20.5% | |||
dimension | 1190*540*2.5MM | |||
weight | 2KG | |||
Guangdong Teejoin Solar Technology Co., Ltd | |||||
specification | Item name | flexible mono solar panel | Doc no. | SPP-10-TE-XXX | |
doc | SPPXXXNH12S | version no. | A/0 | ||

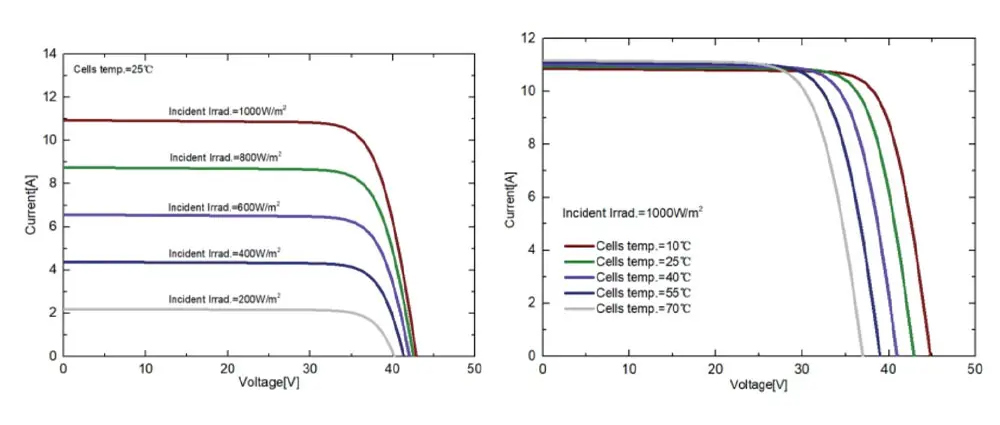

I-V curve | |||||
Irradiance I-V curve（SPP33NH12S） | Operating temperature I-V Curve（SPP33NH12S） | ||||
Applications for 250 Watt Flexible Solar Panel:

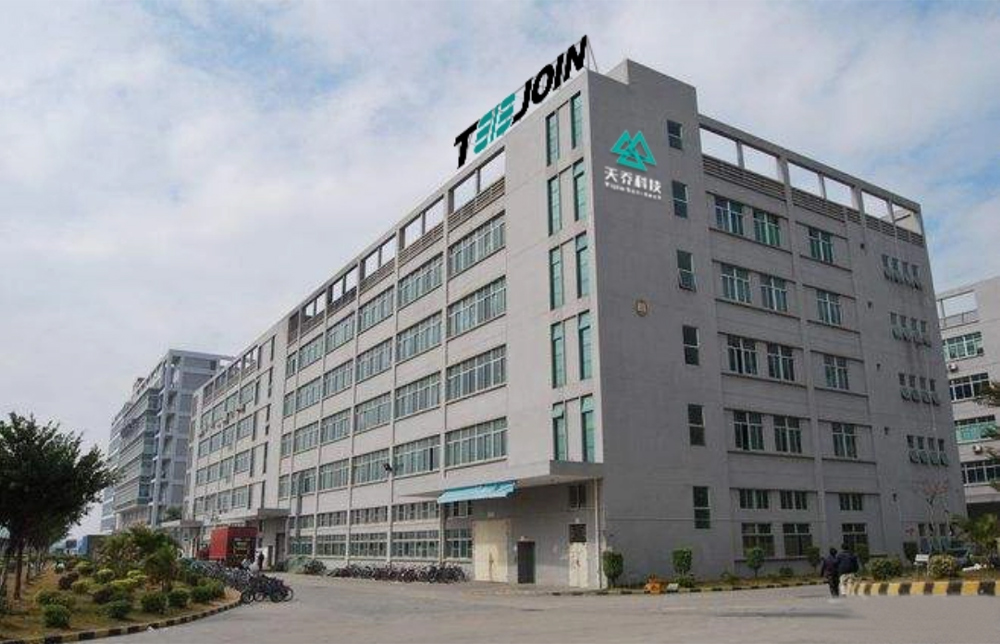

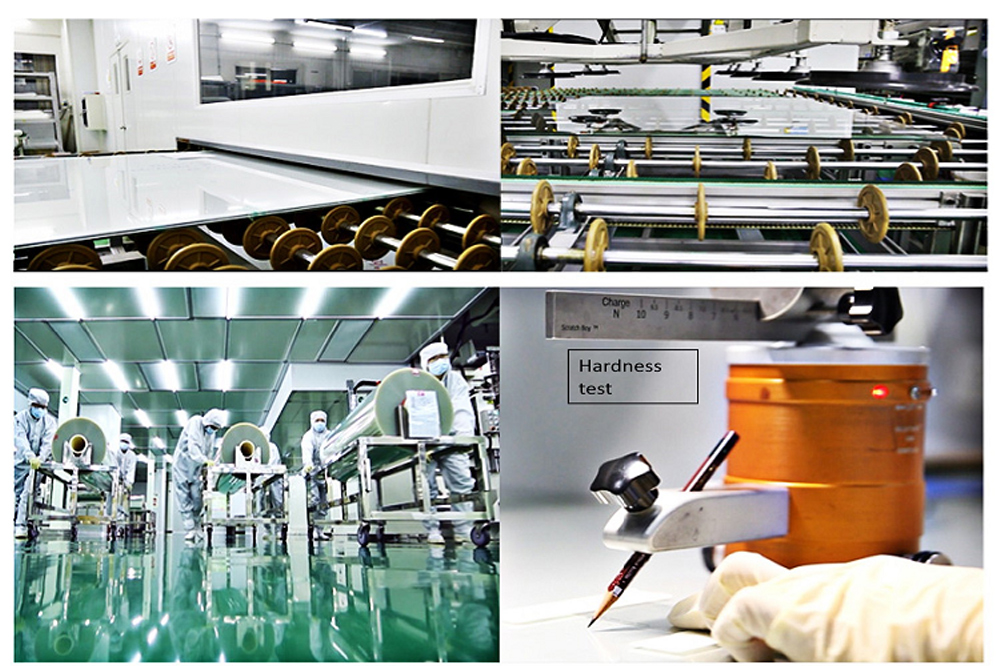

Guangdong TEEJOIN Solar Power Technology Co. is a professional solar power manufacturer in China. We have been in solar power field for more than15 years, built complete production chain of manufacturing all kinds mono & poly crystalline glass solar panels, fordable & flexible panels, solar cells, on/off solar power system, Lithium storage battery, solar street light, solar application products, support all kinds of OEM and ODM production. TEEJOIN has set up 5 factories as production group. TEEJOIN Solar Power Technology Company products have been certified with TUV, CE, ROHS,IEC61215, ISO9001, GCC,received a wide recognition and good reputation from our clients. TEEJOIN is our brand go to the world go forward hand in hand together build cooperation relationship and friendship with our customers and partners. Our team go into actions to encourage and advocate the people to use low-carbon and energy saving products to protect our living environments.We have devoted professional technology team and production line to service for all of the world according to the clients requirements to make the full satisfaction and green comfortable environment.
