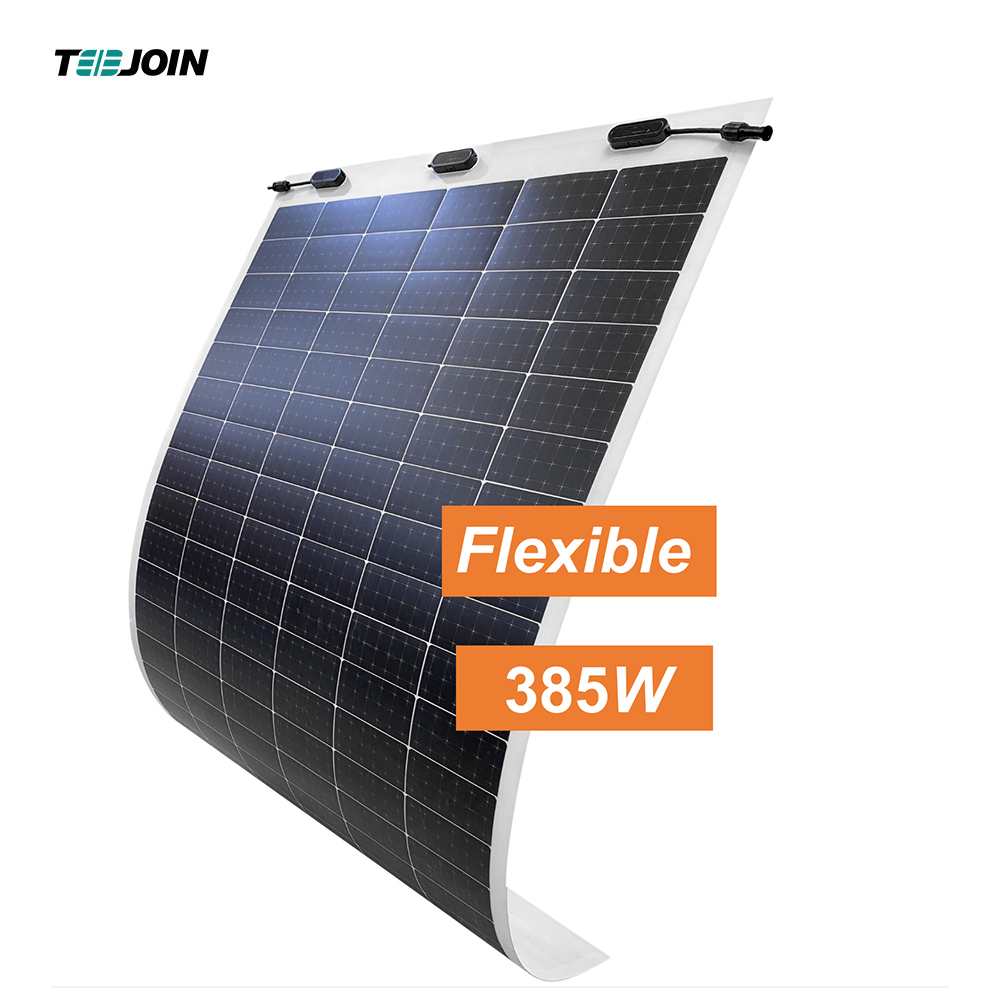

RV or Marine Portable Flexible Solar Panel Custom
Brand TEEJOIN
Product origin China
Delivery time 3-7days
Supply capacity 100000000000

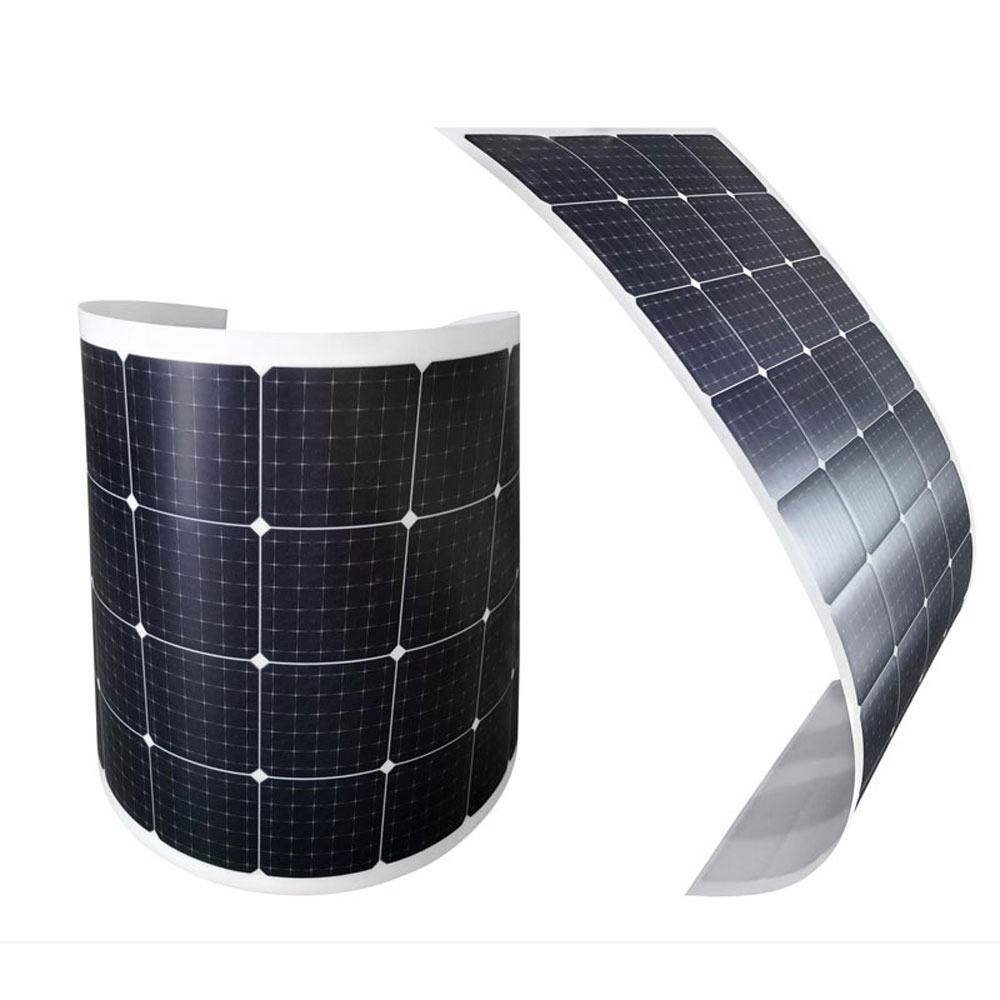

Flexible solar panels, also known as thin-film solar panels, are a type of solar panel that uses lightweight and flexible materials, such as thin layers of photovoltaic material, to convert sunlight into electricity. Flexible solar panels are commonly used in applications where weight, portability, and versatility are important, such as on boats, RVs, backpacks, and portable solar chargers. They are also used in building-integrated photovoltaics (BIPV), where solar panels are integrated into the architecture of buildings.

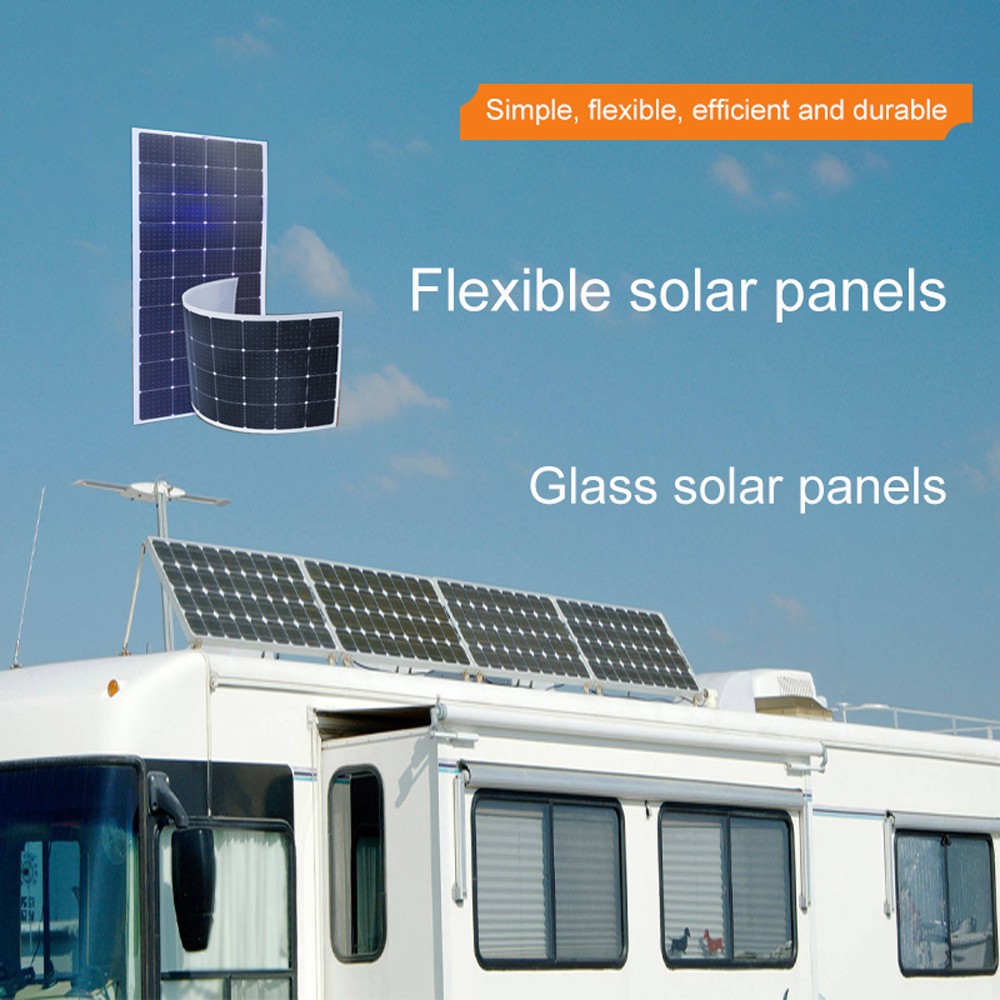

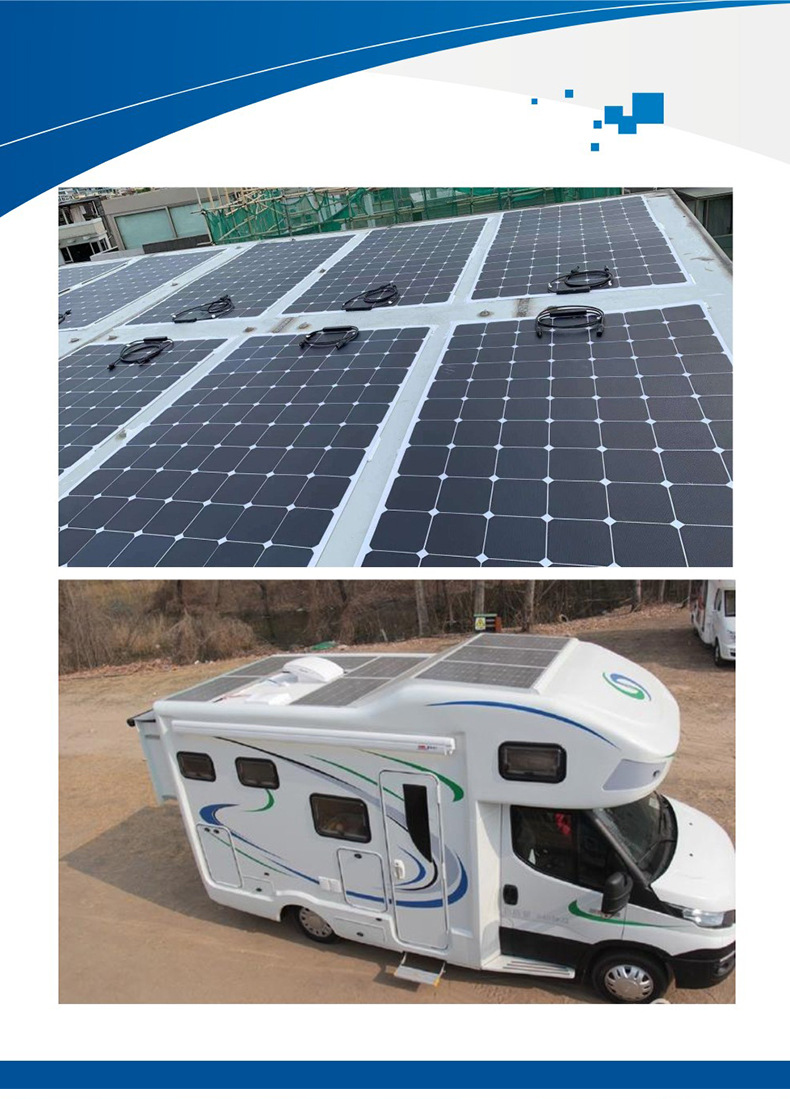

250W Flexible Solar Panel for RV
250W 12A Flexible Solar Panel Specification

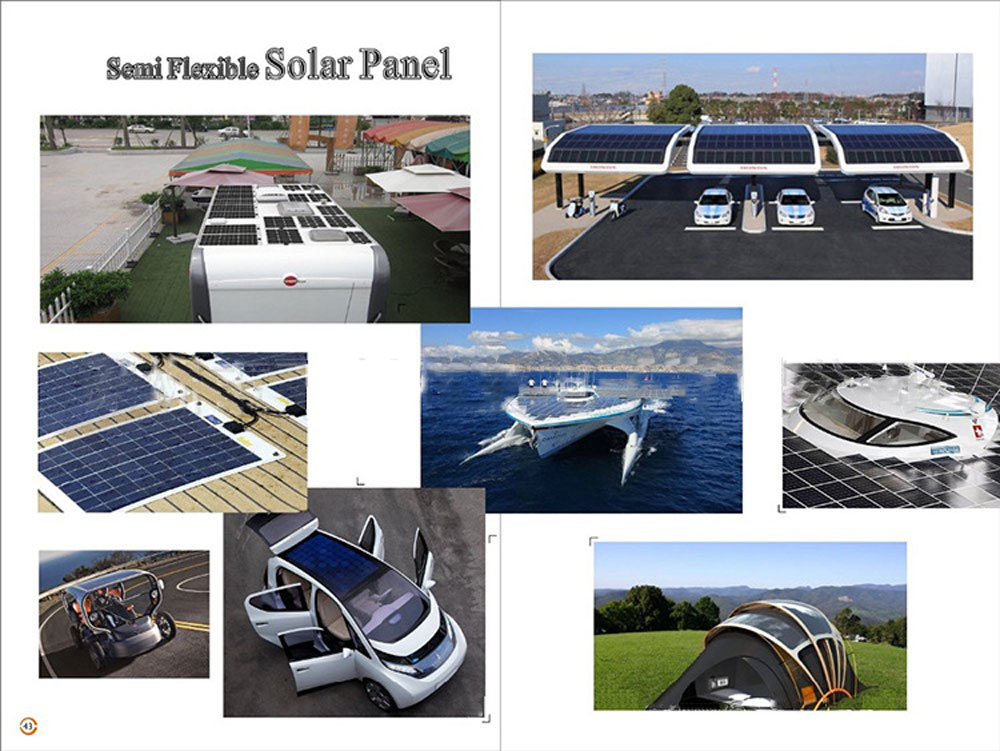

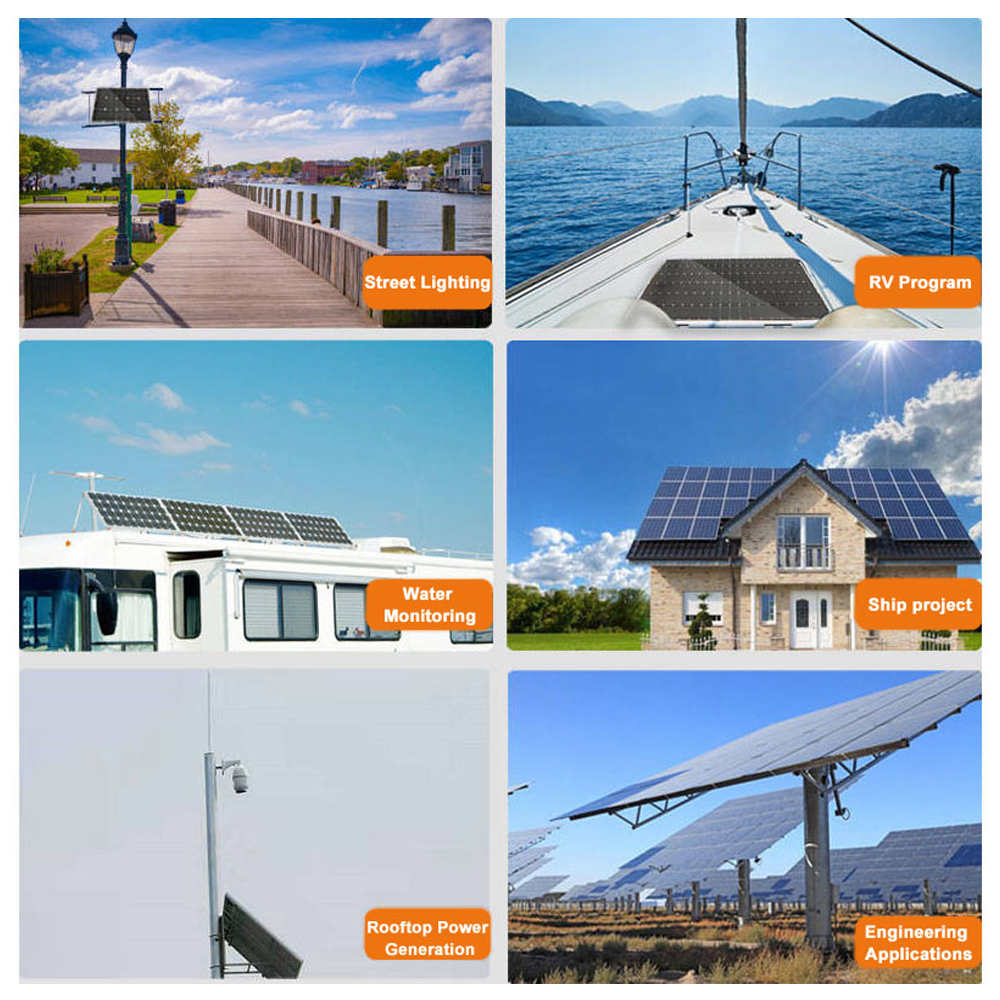

250 Watt Flexible Solar Panels are Suitable for：

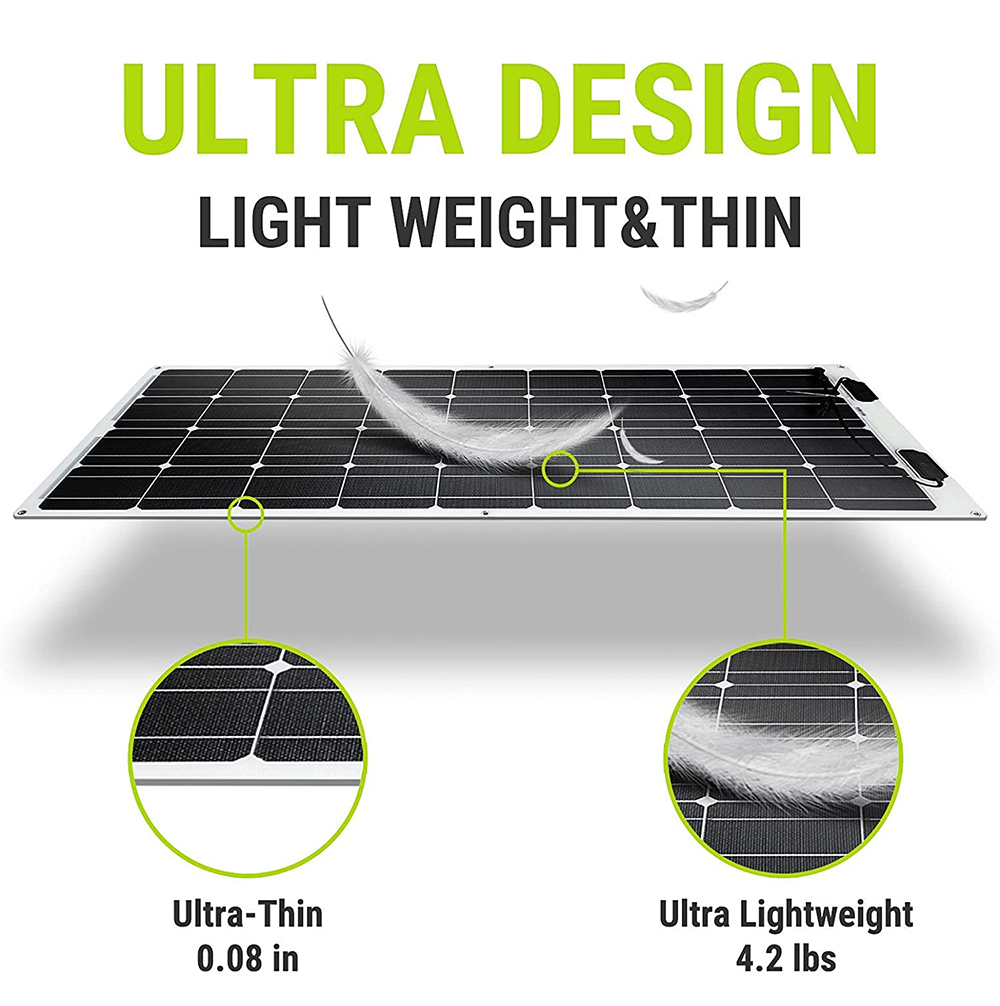

Flexible SOLAR Panel Light，Thin design,Ultra Flexible,Customizable,Convenient Installation,High Efficiency And Reliability,Lead Free
Custom 100W 200W 300W 400W Flexible Solar Panel | |

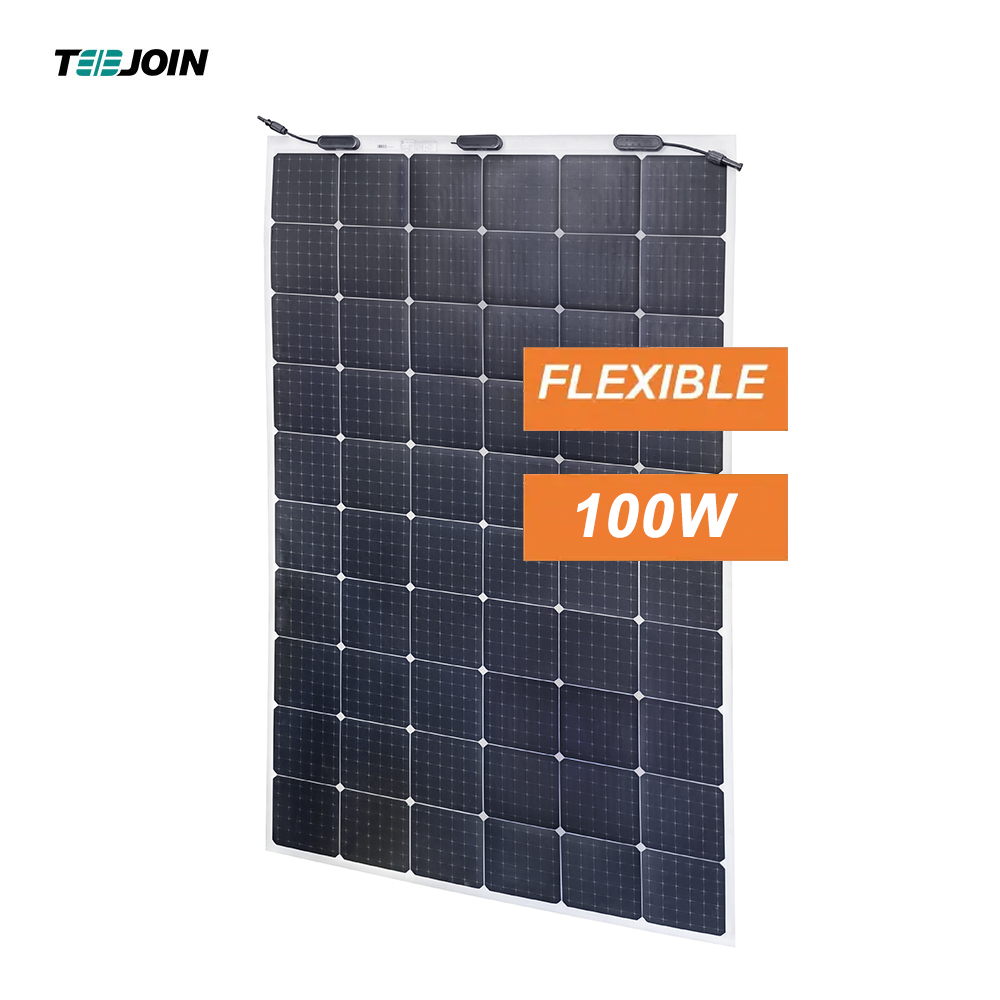

100W Flexible Solar panel | |
torlerance 0~+5w | Max working voltage（Vm）20.23 |
| Max working current（Im）4.96 | Opening voltage（Voc）24.31 |
| Short circuit current（Isc）5.22 | efficiency（ηm）21% |
| Size: 1065×520×1.4mm | Weight: 1.4kg |
| Solar cell: 36(12*3)/mono/ | 162.75*81.375mm / φ223mm |

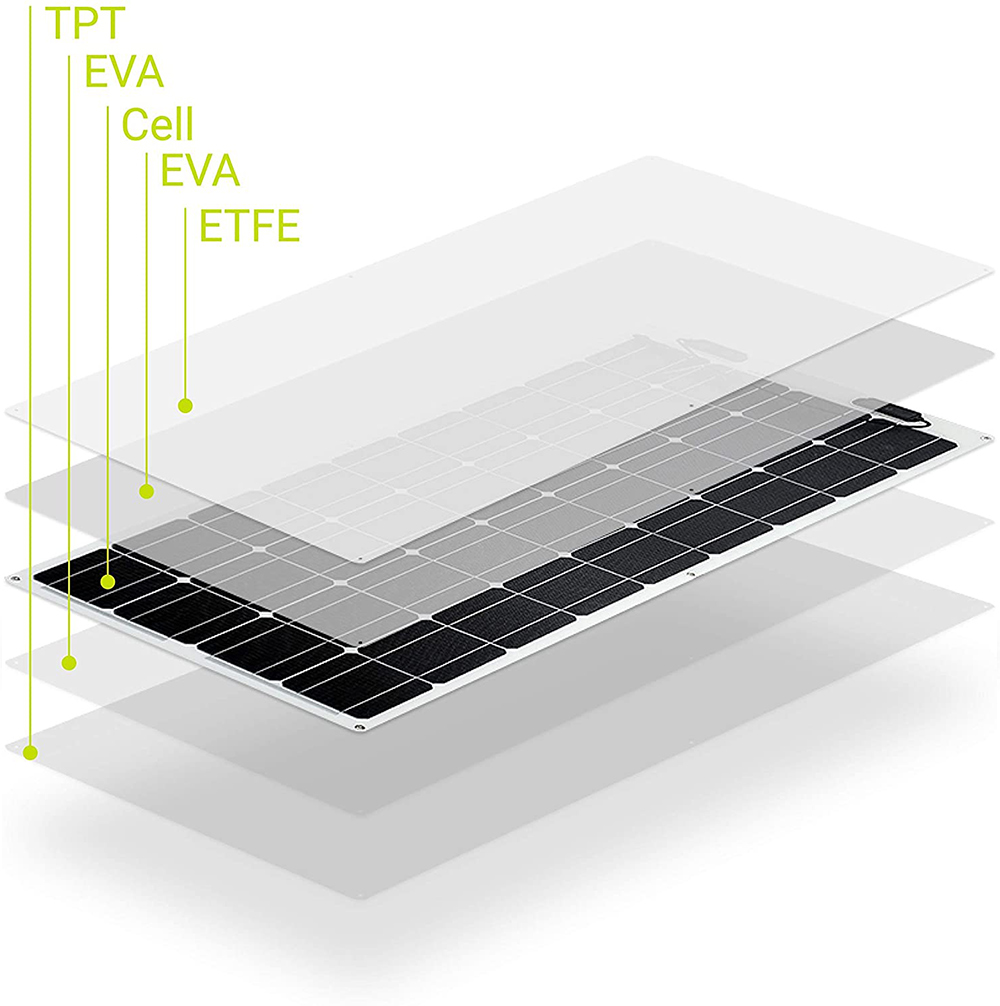

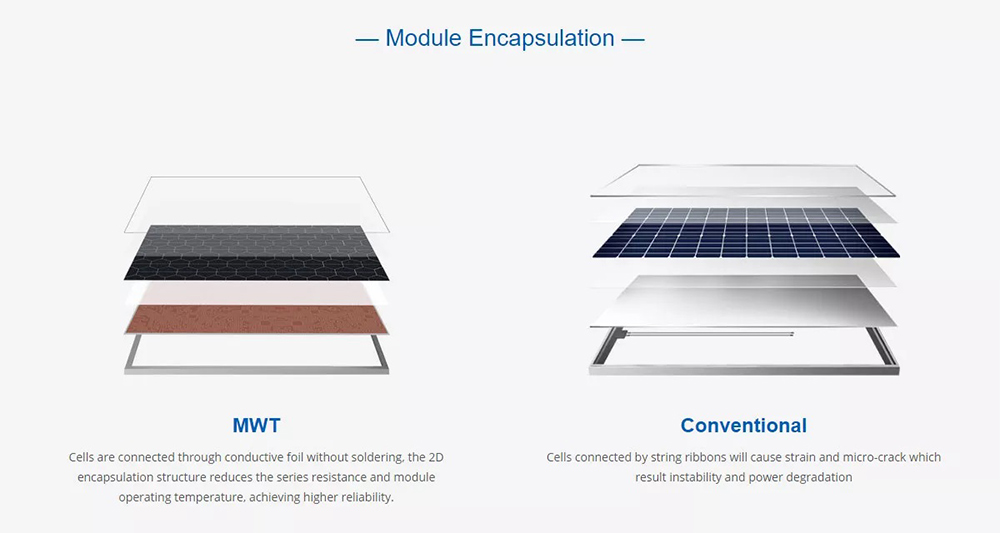

| Encapsulation material: EVA/POE | Junction box: IP67 |

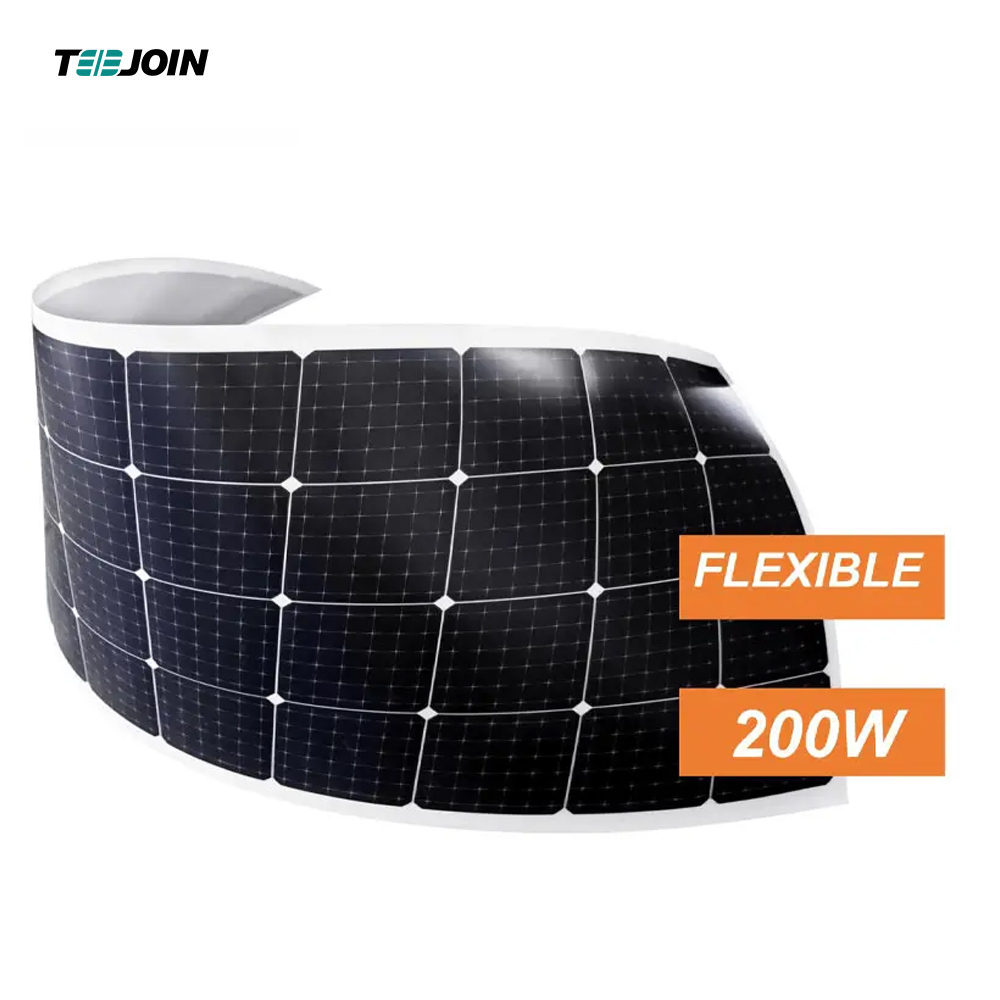

200W Flexible Solar panel | |
torlerance 0~+5w | Max working voltage（Vm）20V |
| Max working current（Im）12A | Opening voltage（Voc）24.3V |
| Short circuit current（Isc）13A | efficiency（ηm）21% |
| Size: 1639×699×1.4mm | Weight: 2.5kg |
| Solar cell: 36(12*3)/mono/ | 162.75*81.375mm / φ223mm |
| Encapsulation material: EVA/POE | Junction box: IP67 |

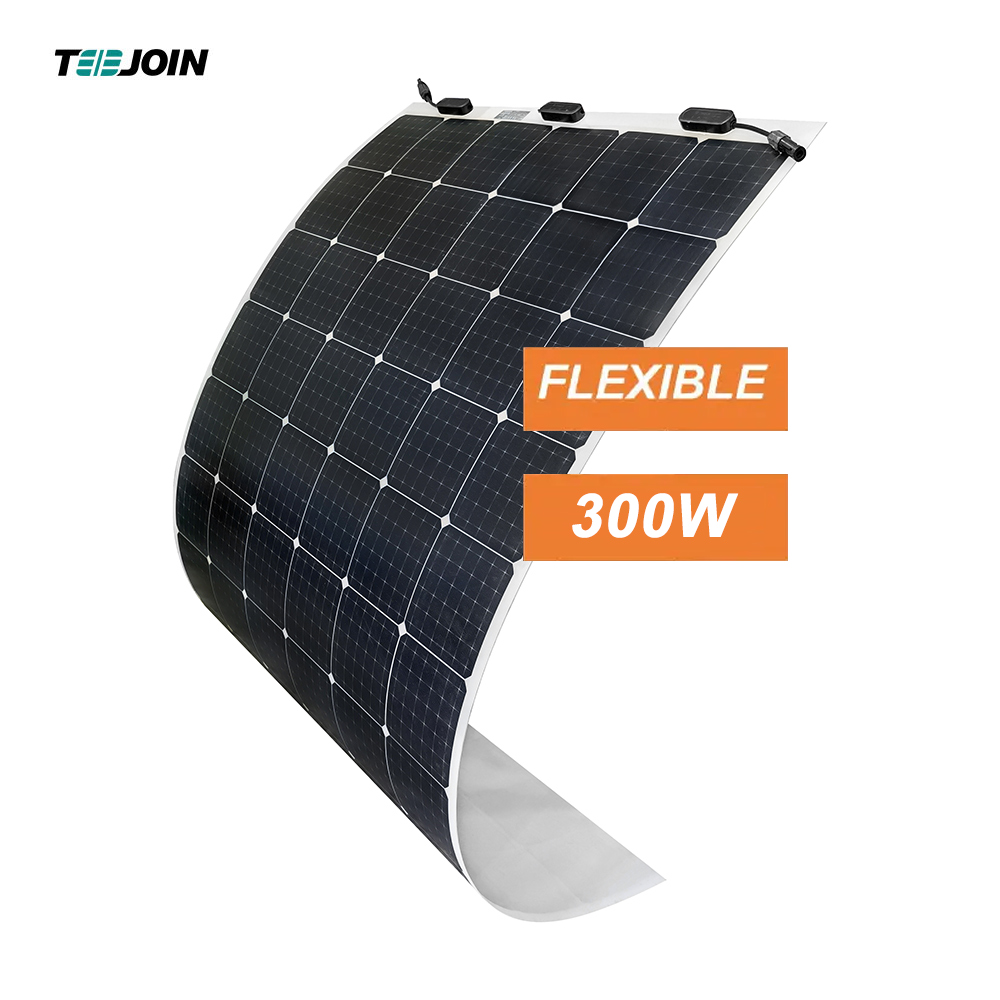

300W Flexible Solar panel | |
| 315W Flexible Solar Panel | Power:315W |
torlerance 0~+5w | Max working voltage（Vm）33V |
| Max working current（Im）9.55A | Opening voltage（Voc）40.1V |
| Short circuit current（Isc）9.9V | efficiency（ηm）21.2% |
| Size: 1660×990×1.4mm | Weight: 4.9/6.3kg |
| Solar cell: 120(20*6)/mono/half cell | Encapsulant: POE |
| Junction box: IP68 | Cable: 4mm |

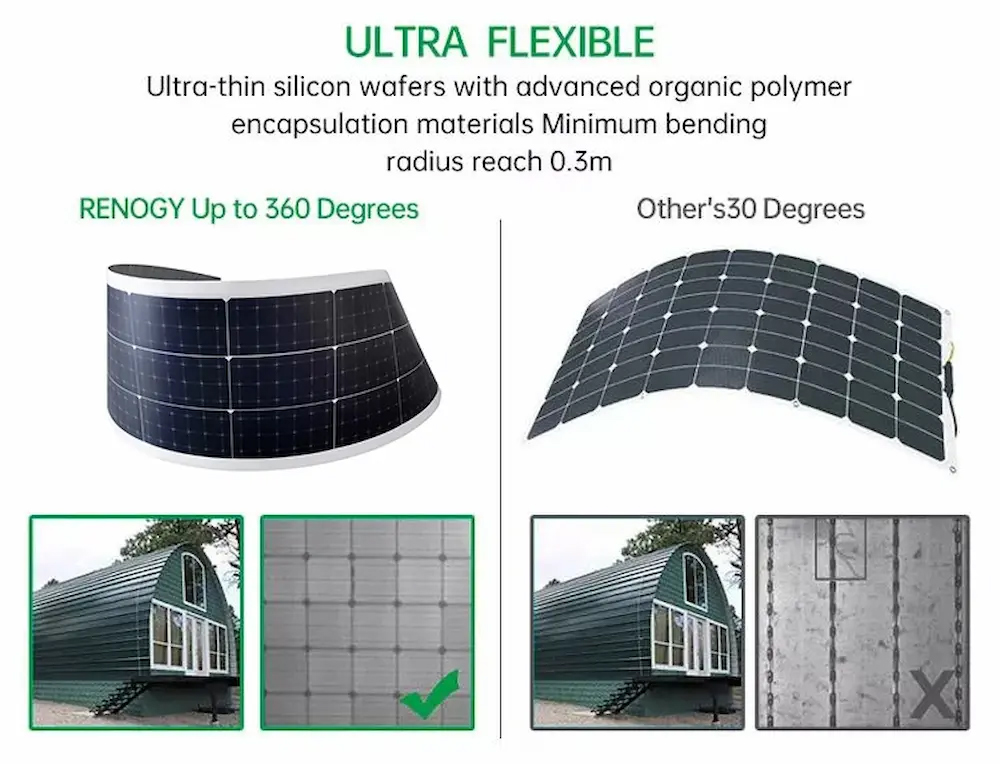

| Bending radius: 0.3m | Connector: MC4 Compatible |
| Package: 46pcs per pallet, 1104pcs | 40HQ |

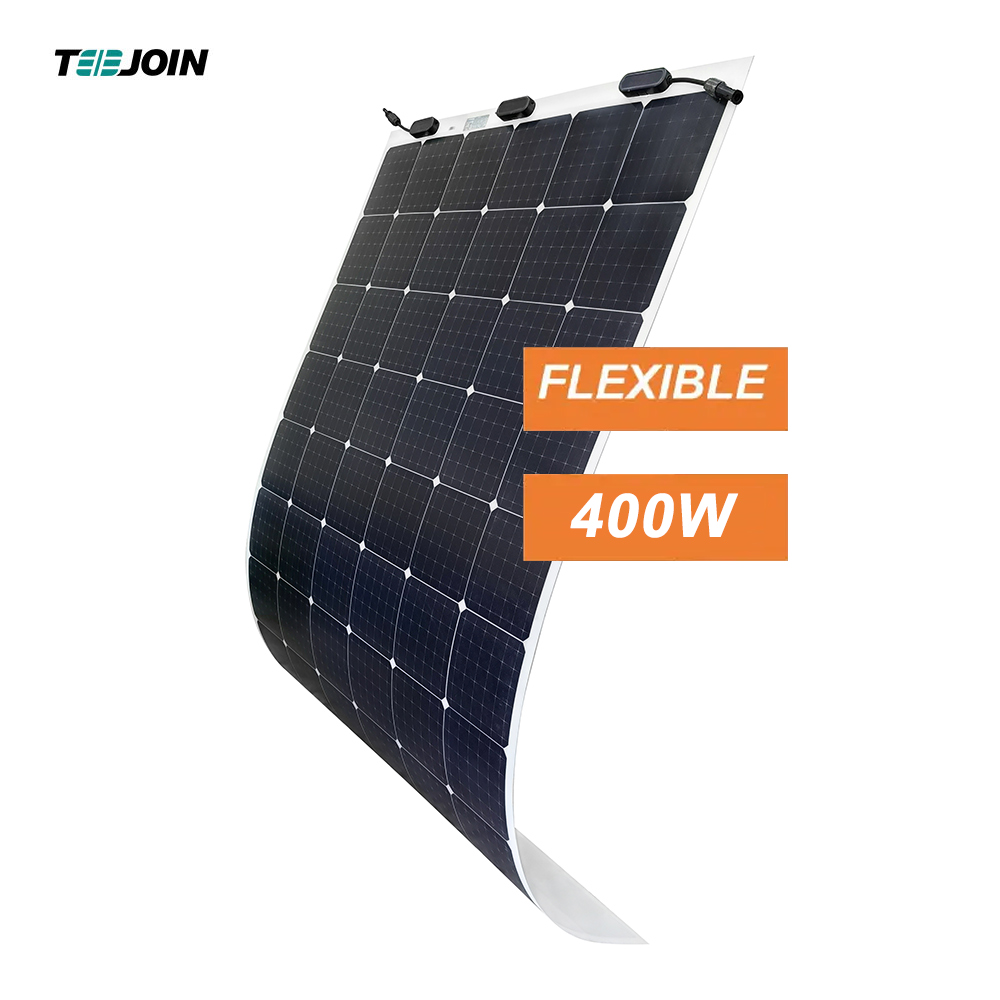

400W Flexible Solar panel | |
| Maximum power：400W | Output：XT60+DC+Type-c+USB(QC3.0) |
torlerance 0~+5w | Open circuit voltage：12V/18V/custom |
| Max working current（Im) : 10A/12A/18A/custom | Open voltage:43.2V /Custom |
| Short circuit current (Isc) : 12V/Custom | efficiency（ηm）21.8% |
| Size: 1840×1040×1.7mm/custom | Weight: 4.9/6.3kg |
| Solar cell: 120(21*6)/mono/half cell | Encapsulant: POE |
| Junction box: IP68 | Cable: 4mm |
| Bending radius: 0.3m | Connector: MC4 Compatible |
| Package: 46pcs per pallet, 1104pcs | 40HQ |

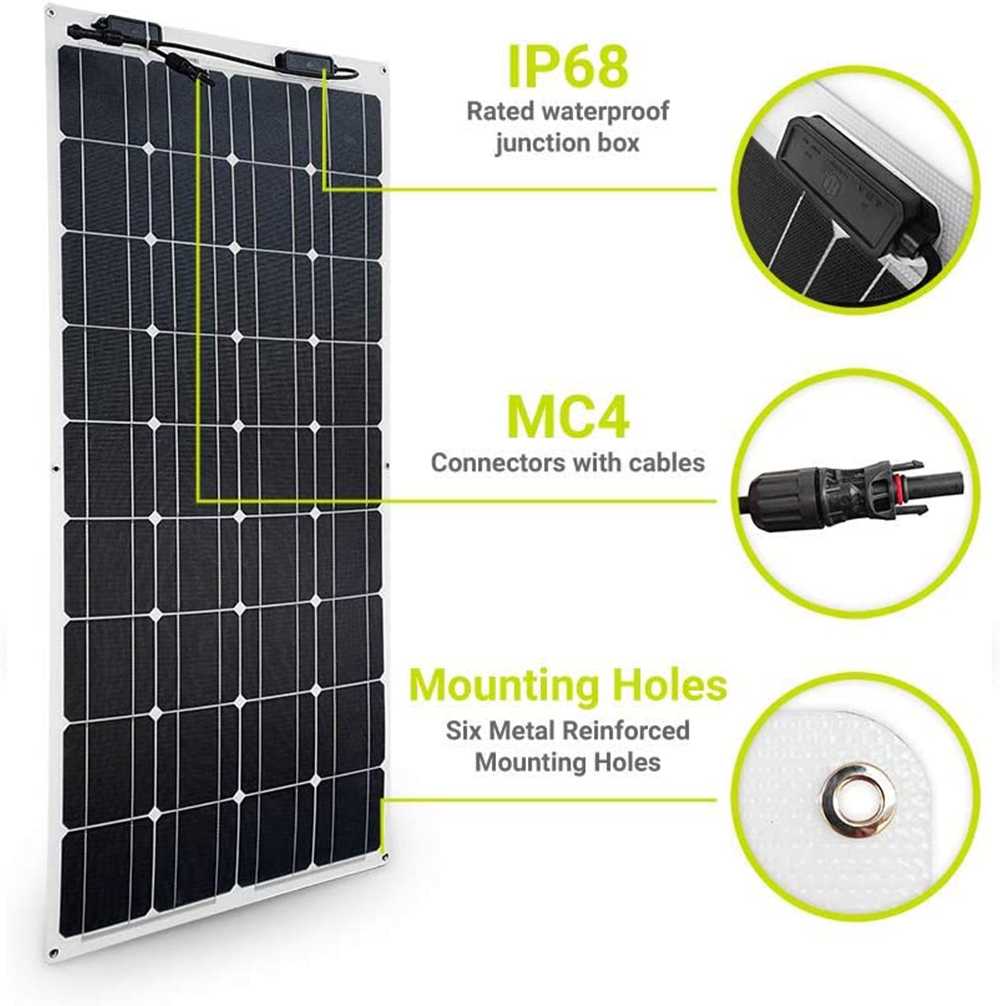

The maximum power of this flexible solar panel customized product is 400W, and the output interface includes XT60, DC, Type-c and USB(QC3.0). The open circuit voltage is 12V/18V/customized, open circuit current is 43.2V/customized, short circuit current is 12V/customized, and the efficiency is 21.8.The size can be customized, and the solar cells are 126pcs(21*6)/monocrystalline/half cell. The encapsulation material is POE, the junction box is IP68 grade waterproof, the cable diameter is 4mm, the bending radius is 0.3m, the connector is MC4 compatible connector.
With a maximum power output of up to 400W, this customized flexible solar panel features advanced solar cell technology and high efficiency design. Its multiple output interfaces include XT60, DC, Type-c and USB (QC3.0) to meet the charging needs of different devices. With customizable open-circuit voltage and open-circuit current parameters, it is suitable for various application scenarios. High-quality materials and processes are used, such as POE encapsulation materials and IP68-rated waterproof junction box, to ensure the stability and durability of the product. The overall size can be customized according to the demand, suitable for a variety of installation environments. It is a powerful and stable solar charging solution.

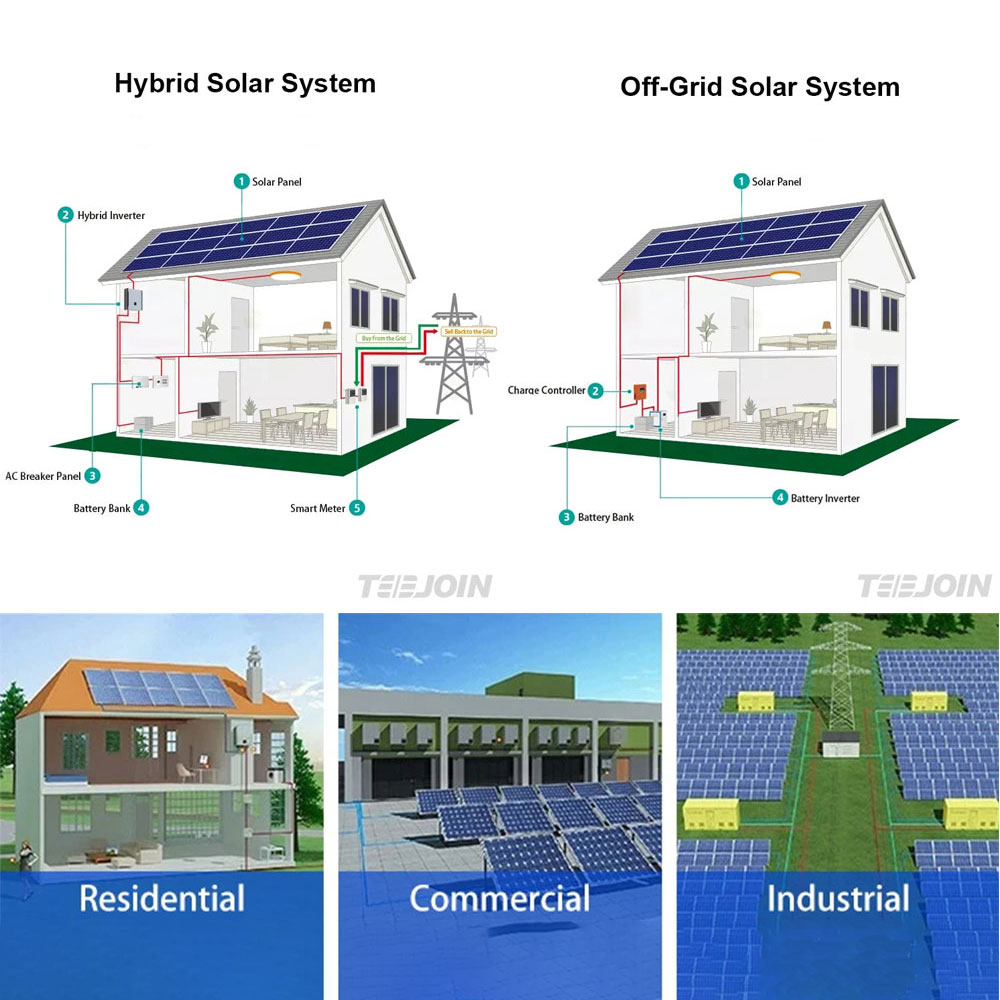

Solar Flexible Panel Projects
Solar Flexible Panel for farms

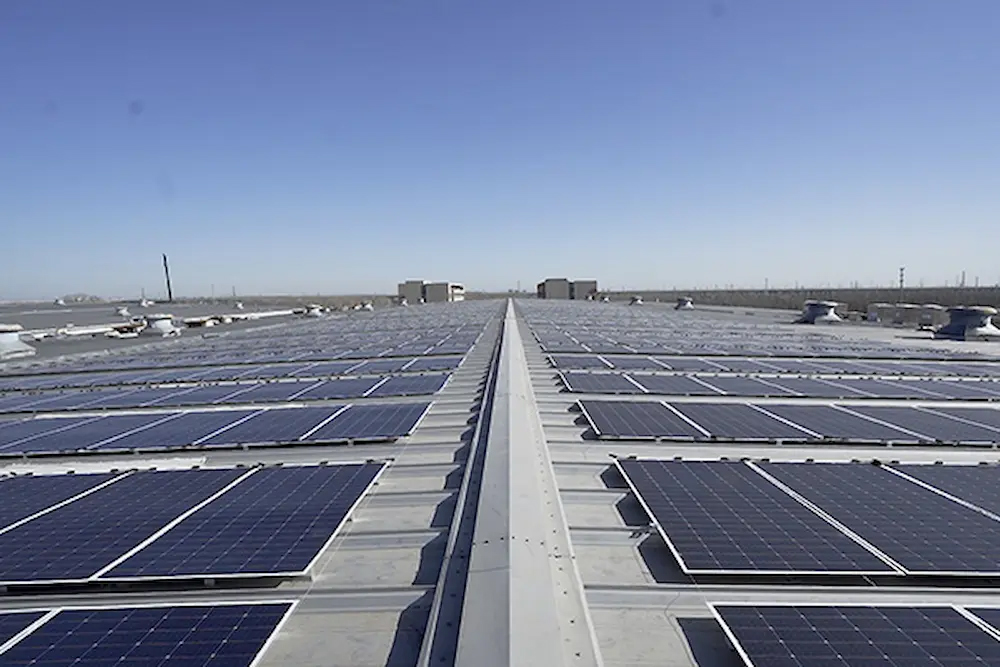

Solar Flexible Panel for Commercial Power Generation
Solar Flexible Panel for plant power generation

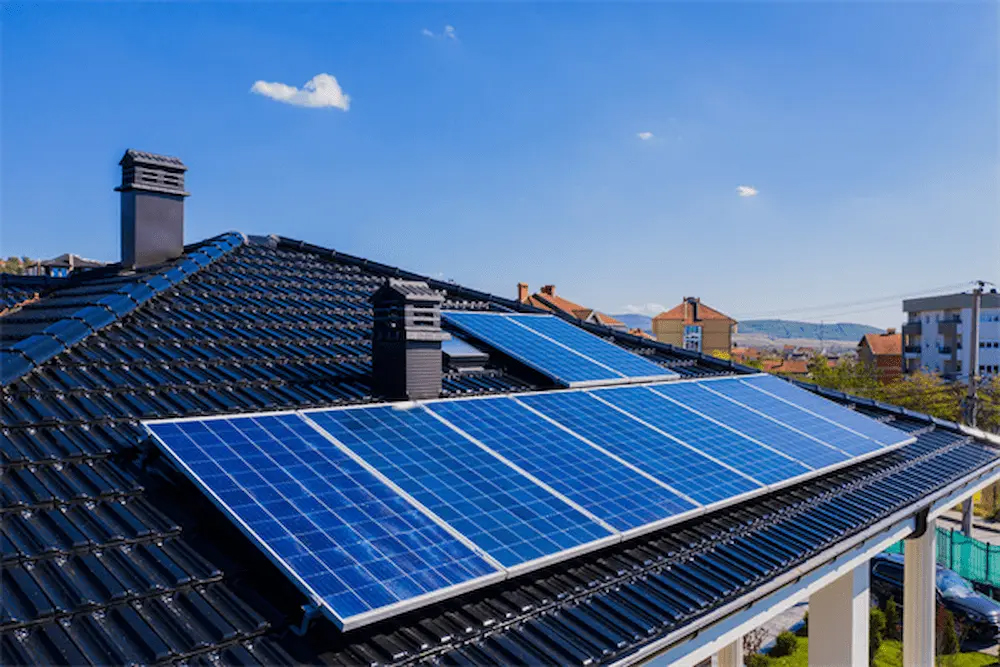

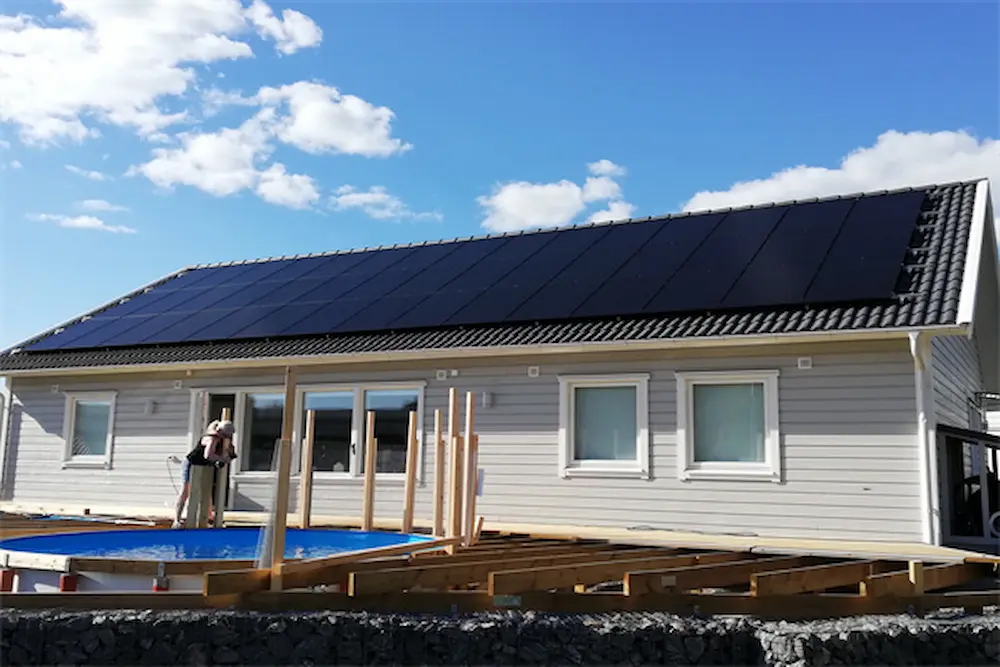

Solar Flexible Panel for power generation in residential buildings

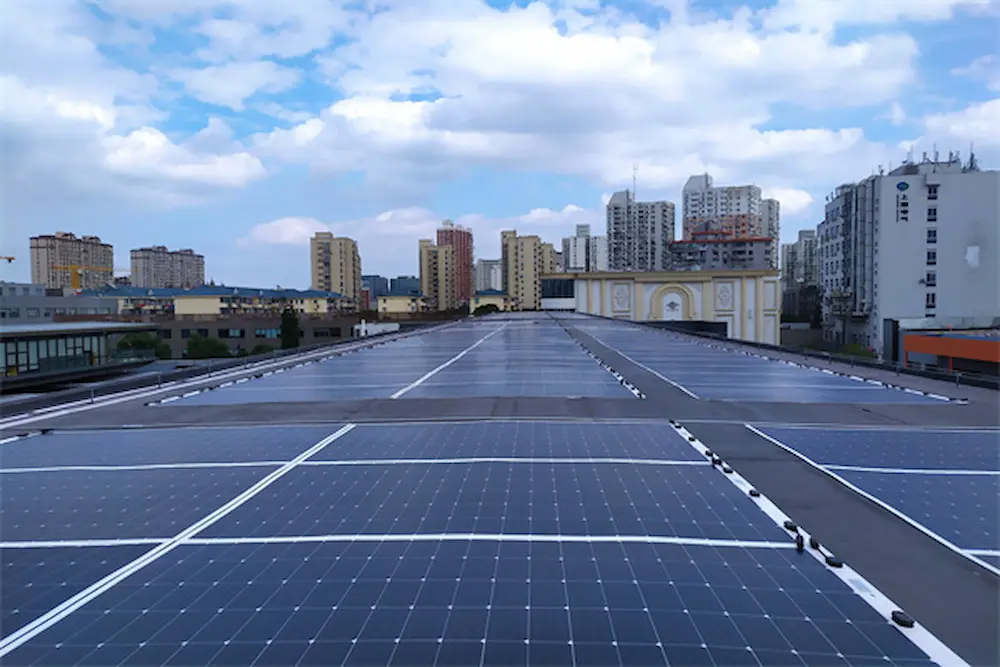

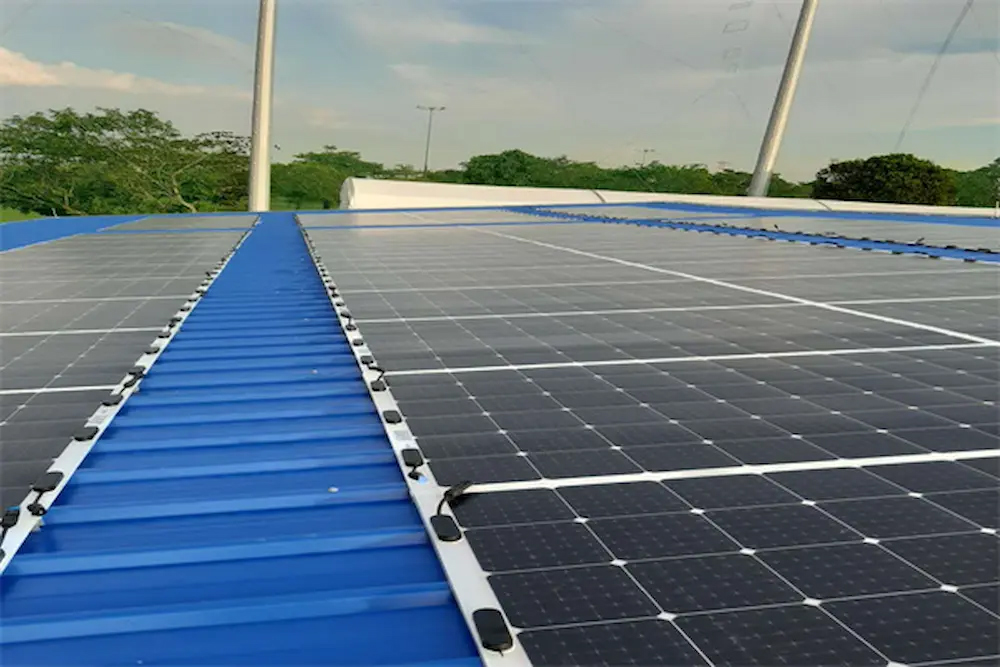

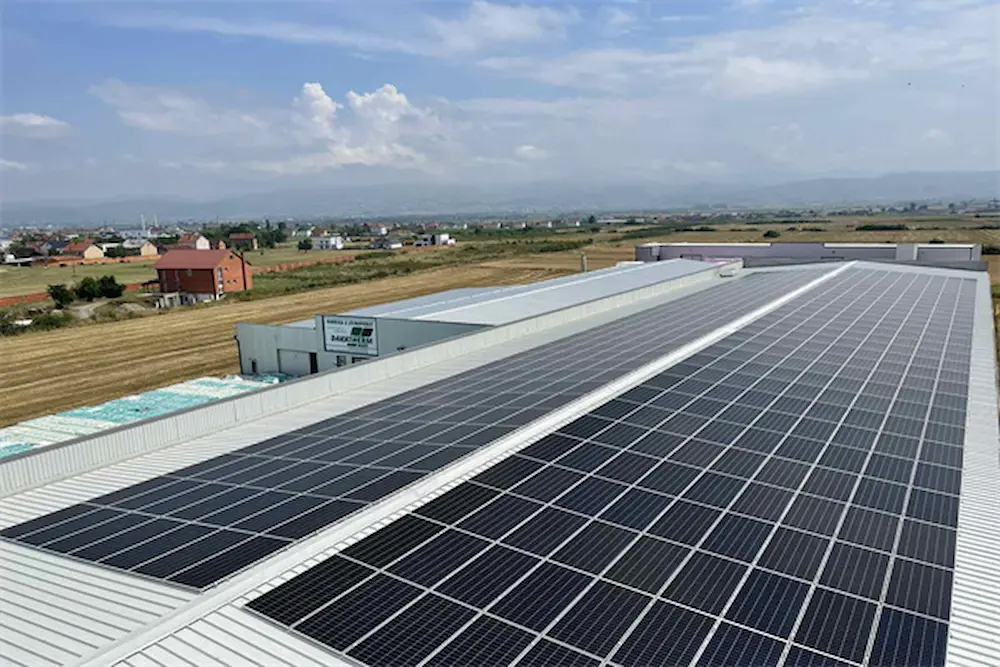

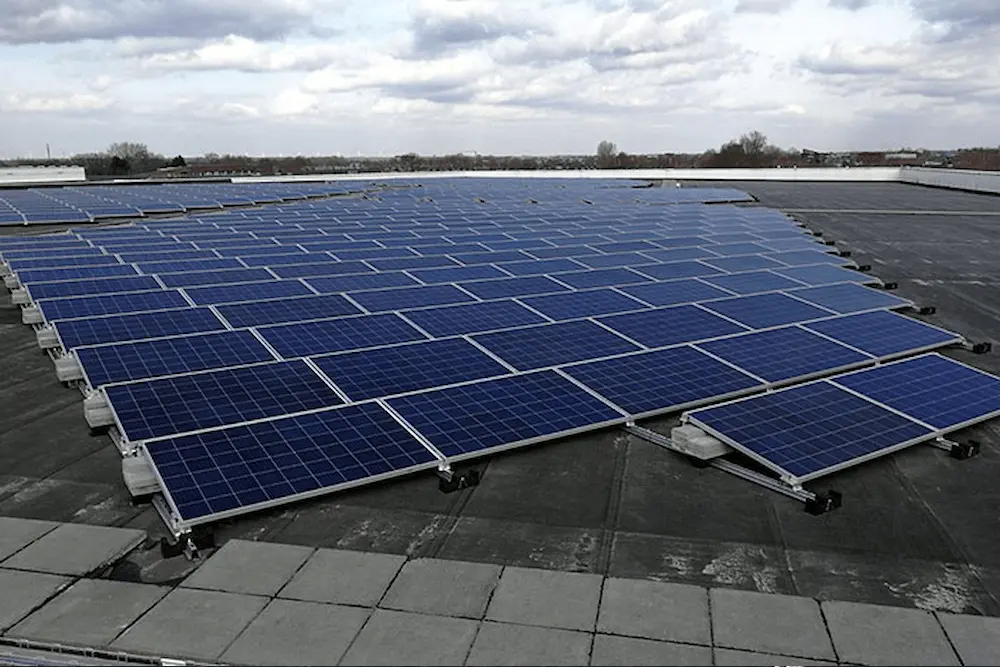

Solar Flexible Panel for Rooftop
Solar Flexible Panel Power Project

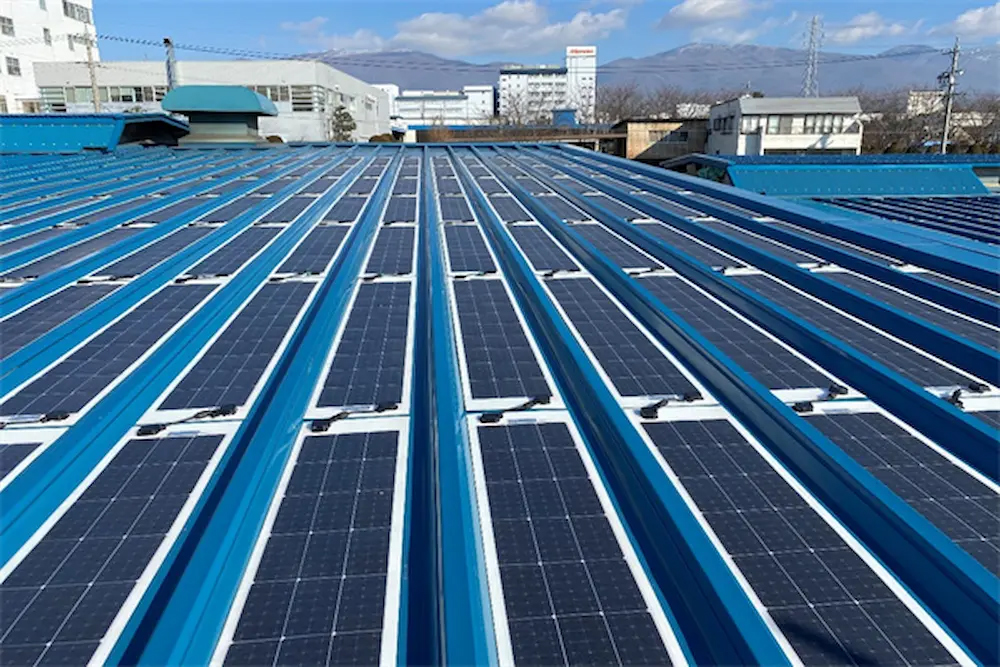

Solar Flex Rooftop Power Generation

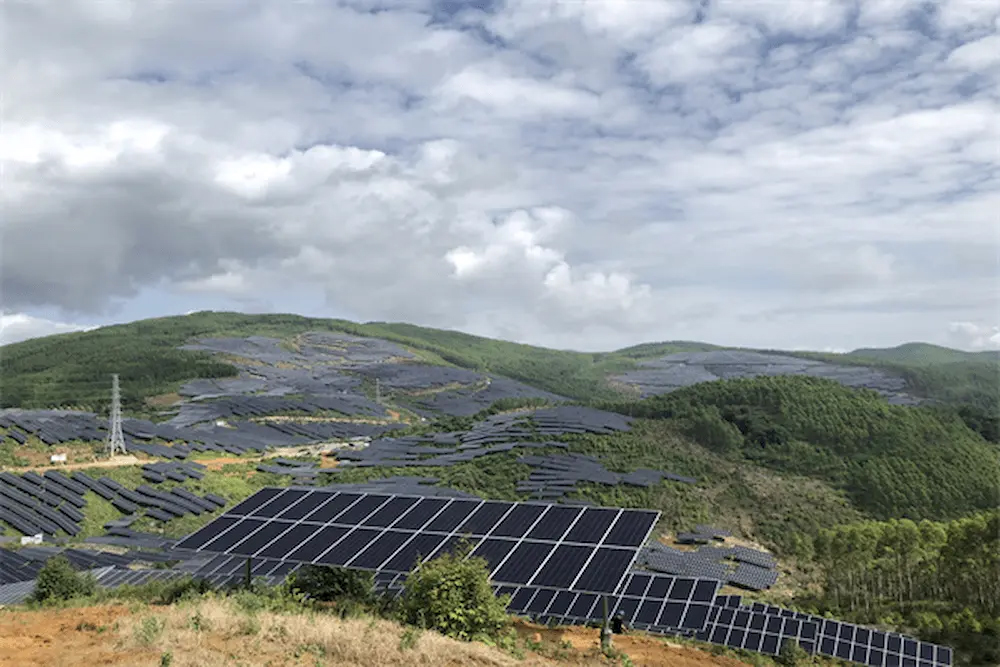

Solar flex panels for remote rural power generation

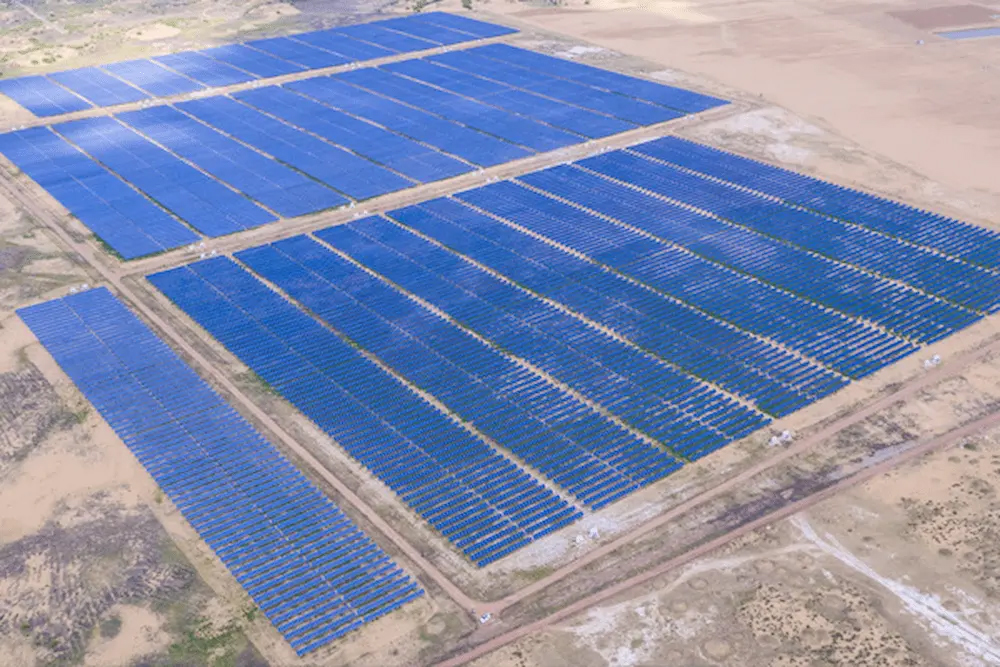

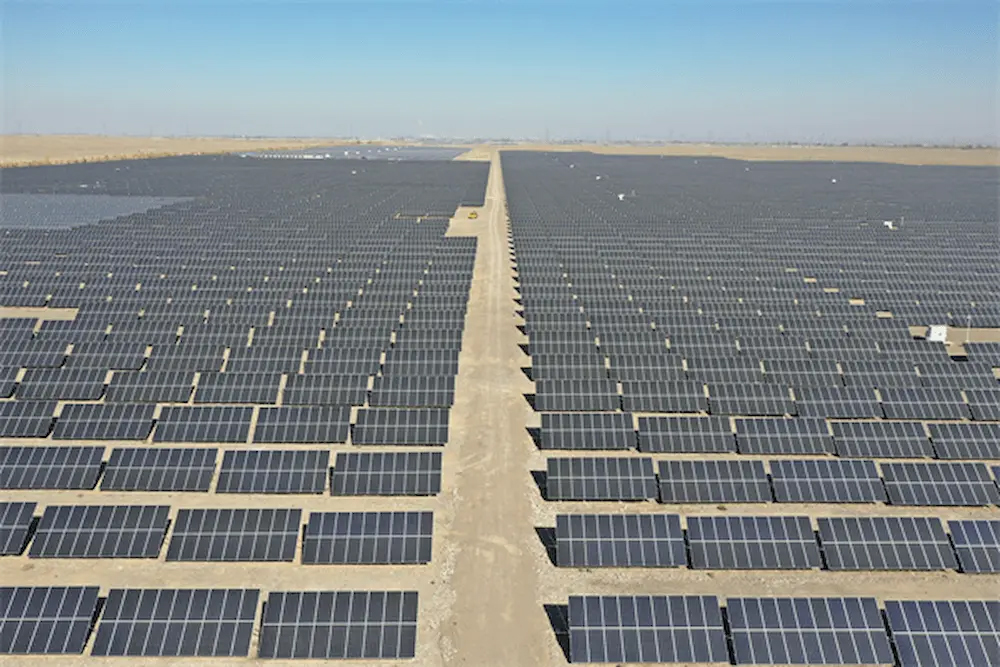

Solar Flex Panel Desert Power
Solar Flexible Panel Desert Power Project

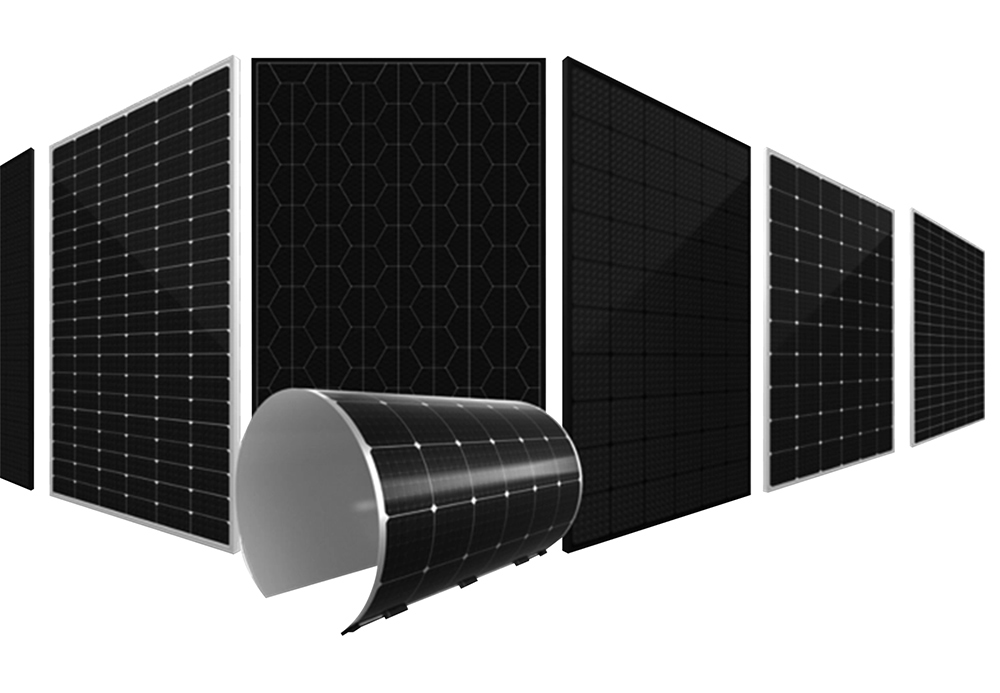

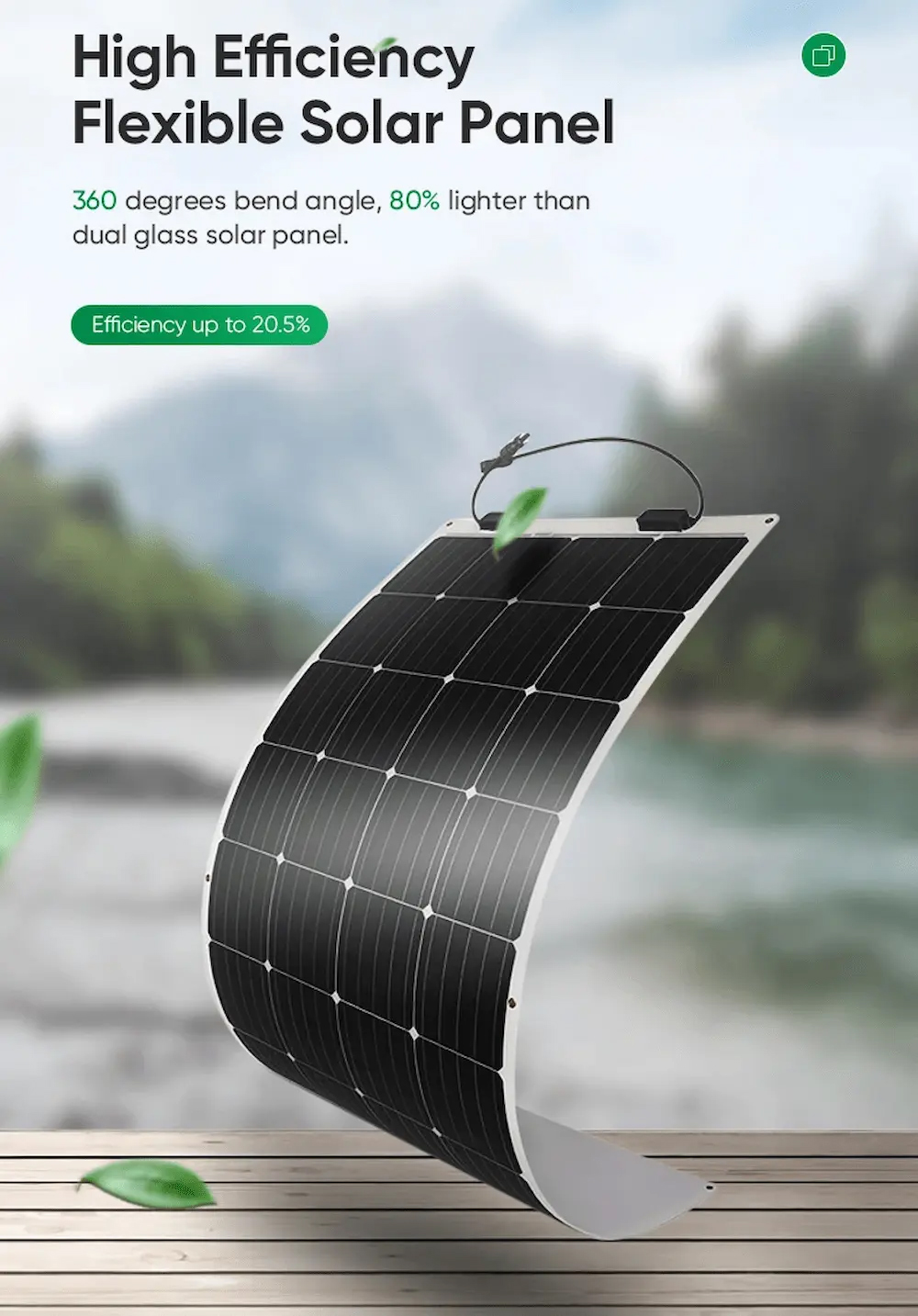

30Watt - 400 Watt Flexible Solar Panel:
The 400 Watt Flexible Solar Panel is designed for versatility and efficiency, making it an ideal solution for various applications. Its lightweight and flexible design allows for easy installation on a range of surfaces, expanding its usability in numerous environments.
Suitable for a variety of applications, such as outdoor activities, camping, boats, etc., this flexible solar panel has a high energy conversion rate and is lightweight and portable, making it an ideal green energy solution.
