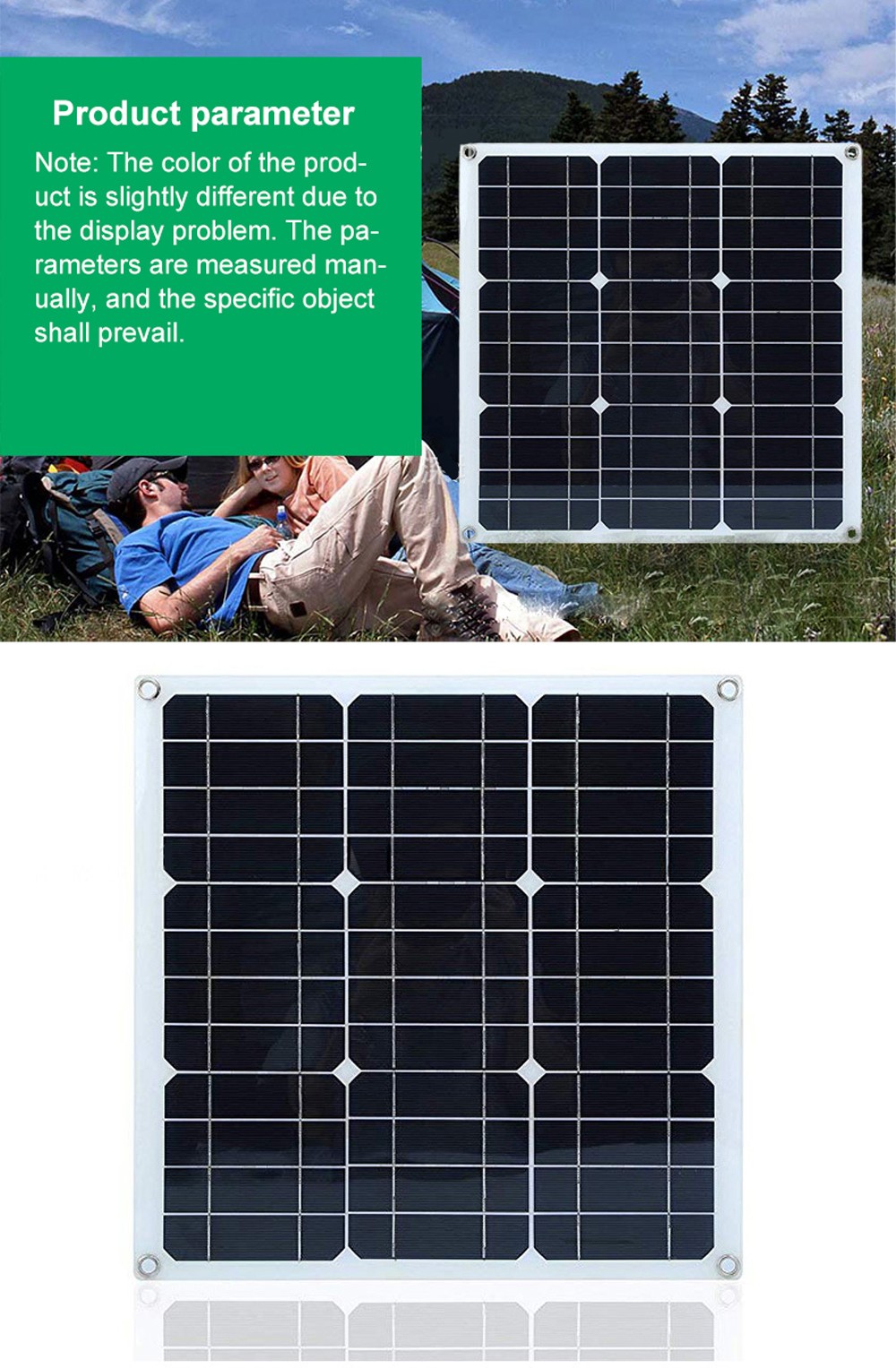

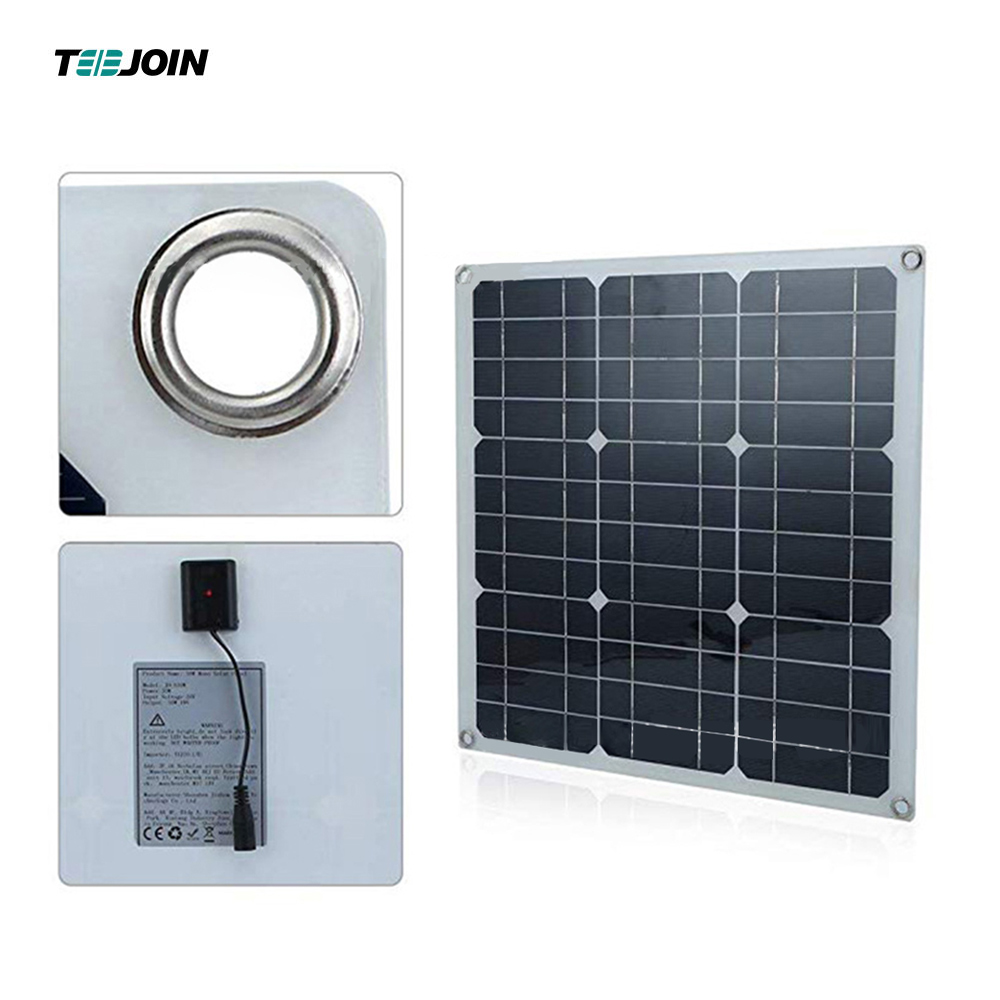

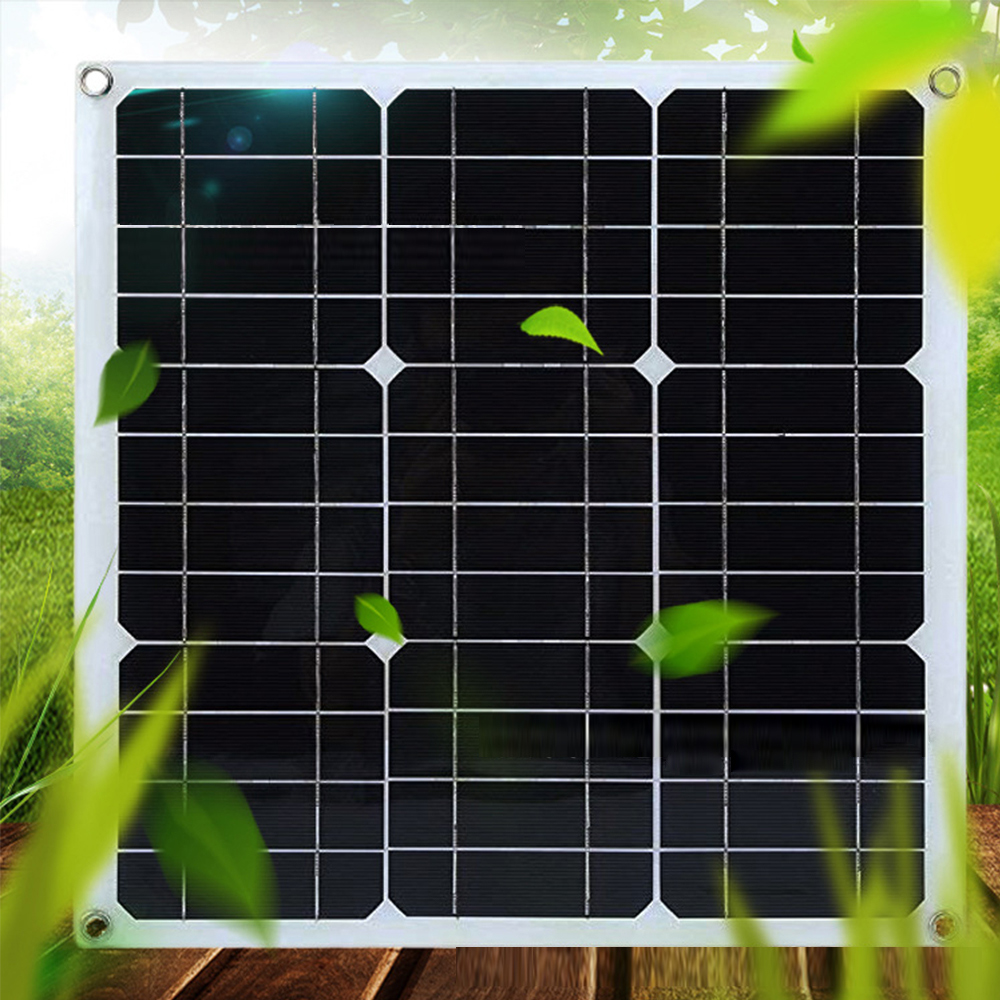

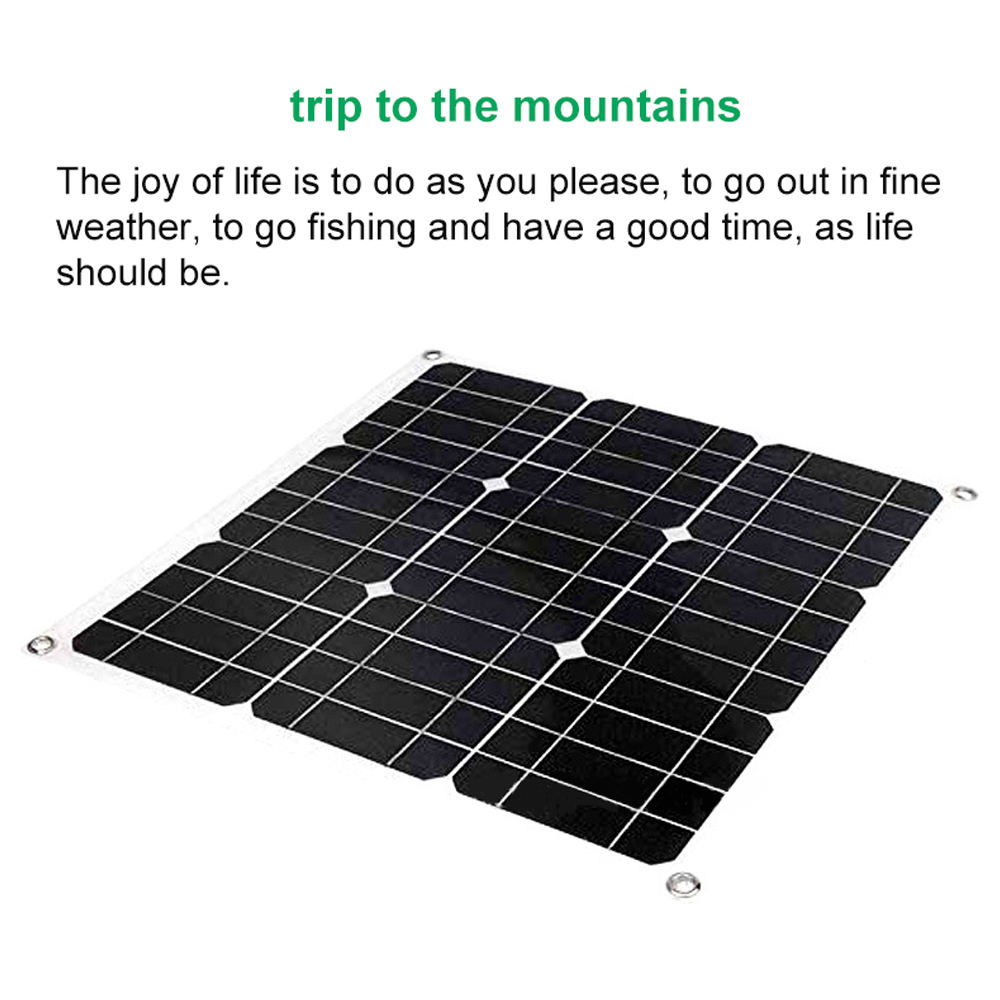

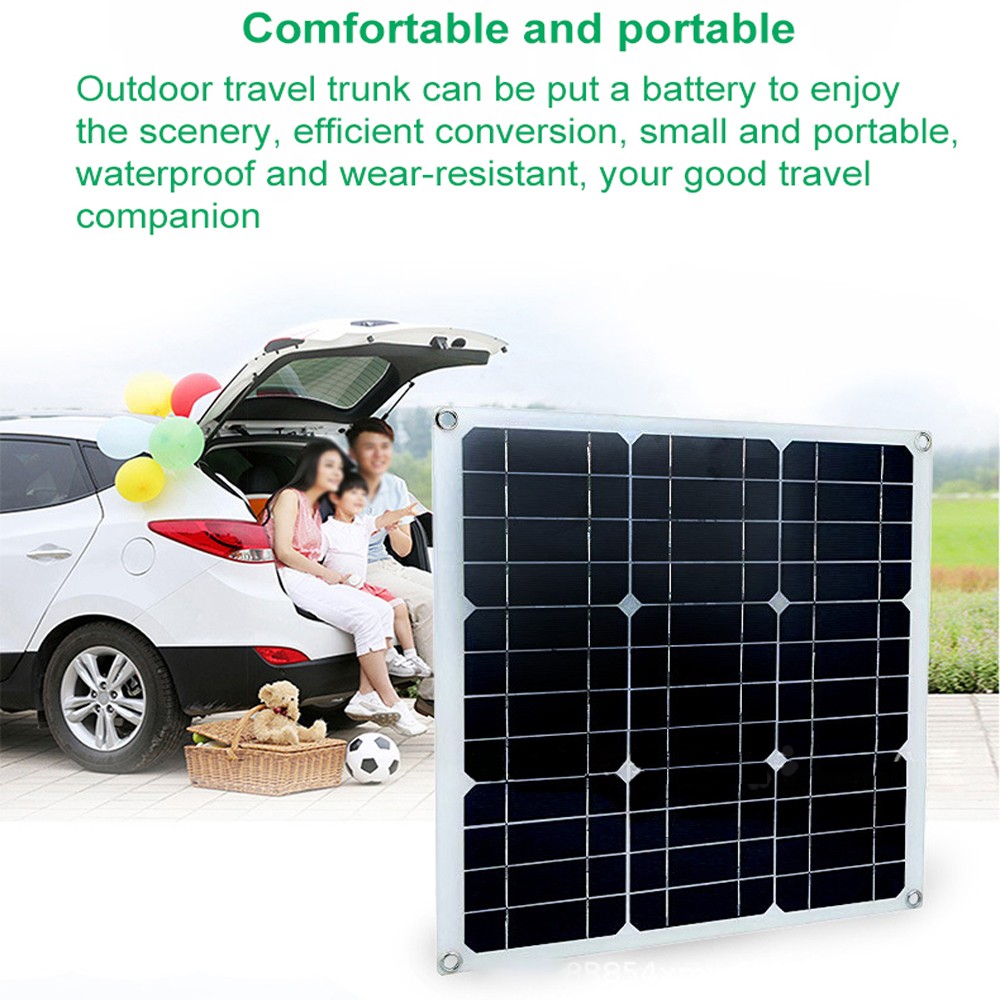

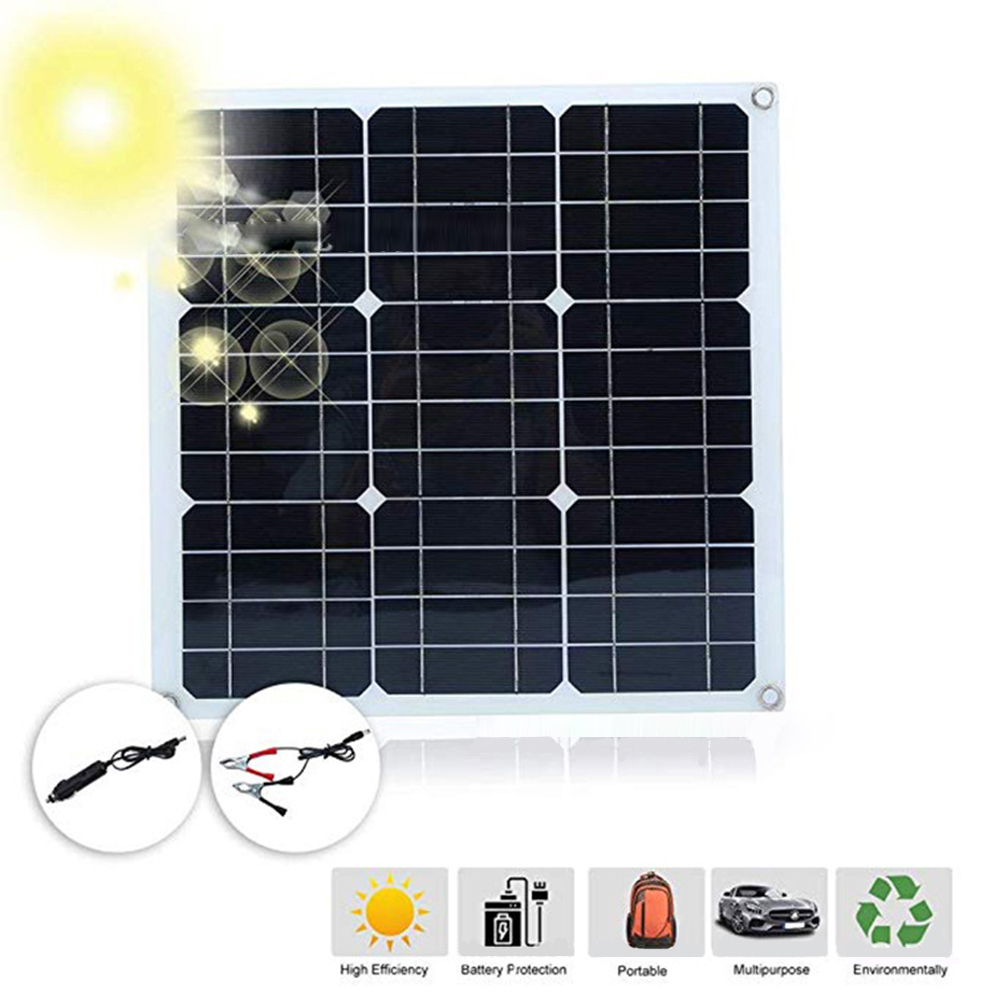

Mono Flexible Solar Panel 30W for Garden Shed or Farm
Brand TEEJOIN
Product origin China
Delivery time 3-7days
Supply capacity 100000000000

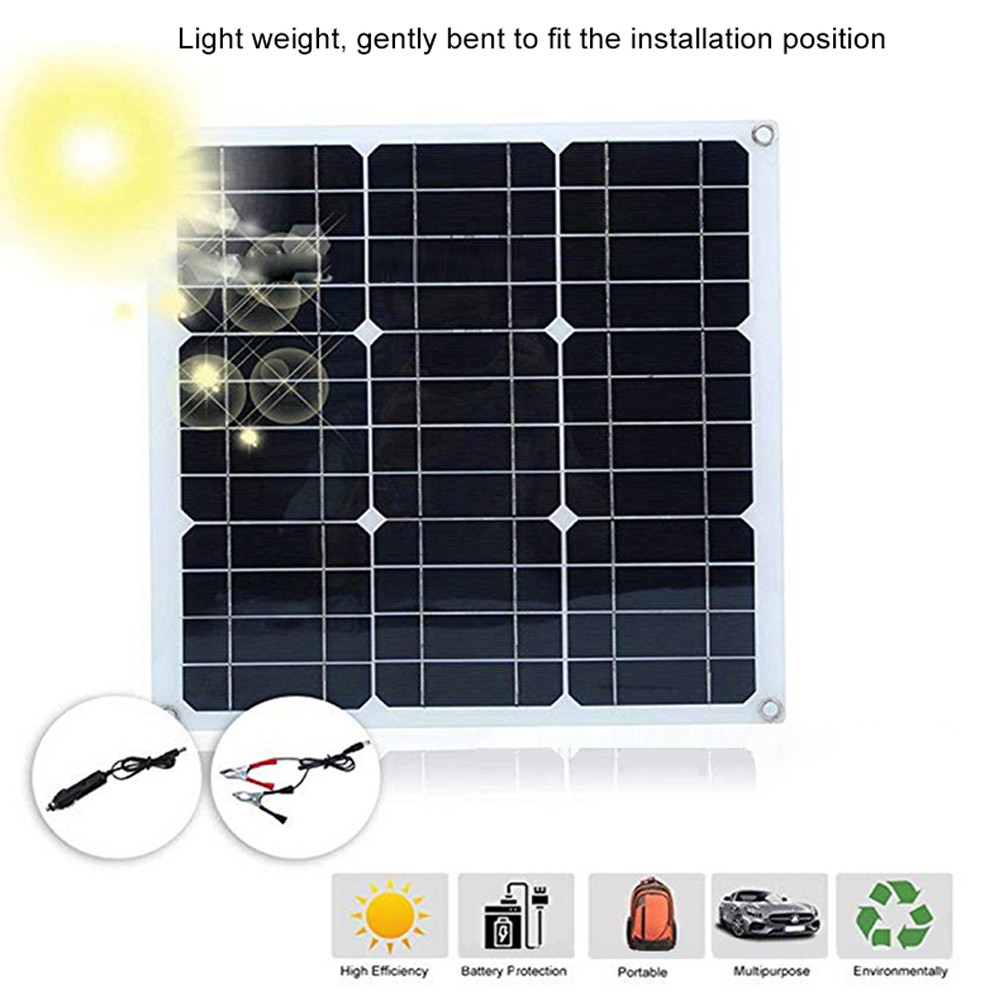

Flexible Solar Panel Features: Solar Panel provides proper power for 12v TVs, laptops, lamps, refrigerators and other running equipment. Flexible boards, light weight, easy to install Applicability. Ideal for RVs, boats, tight spaces or crowded areas.
Dual USB 40W Flexible Solar Panel 10A for Rooftop and RV
30 Watt 10A Flexible Solar Panel Specification
30 Watt Flexible Solar Panels are Suitable for：

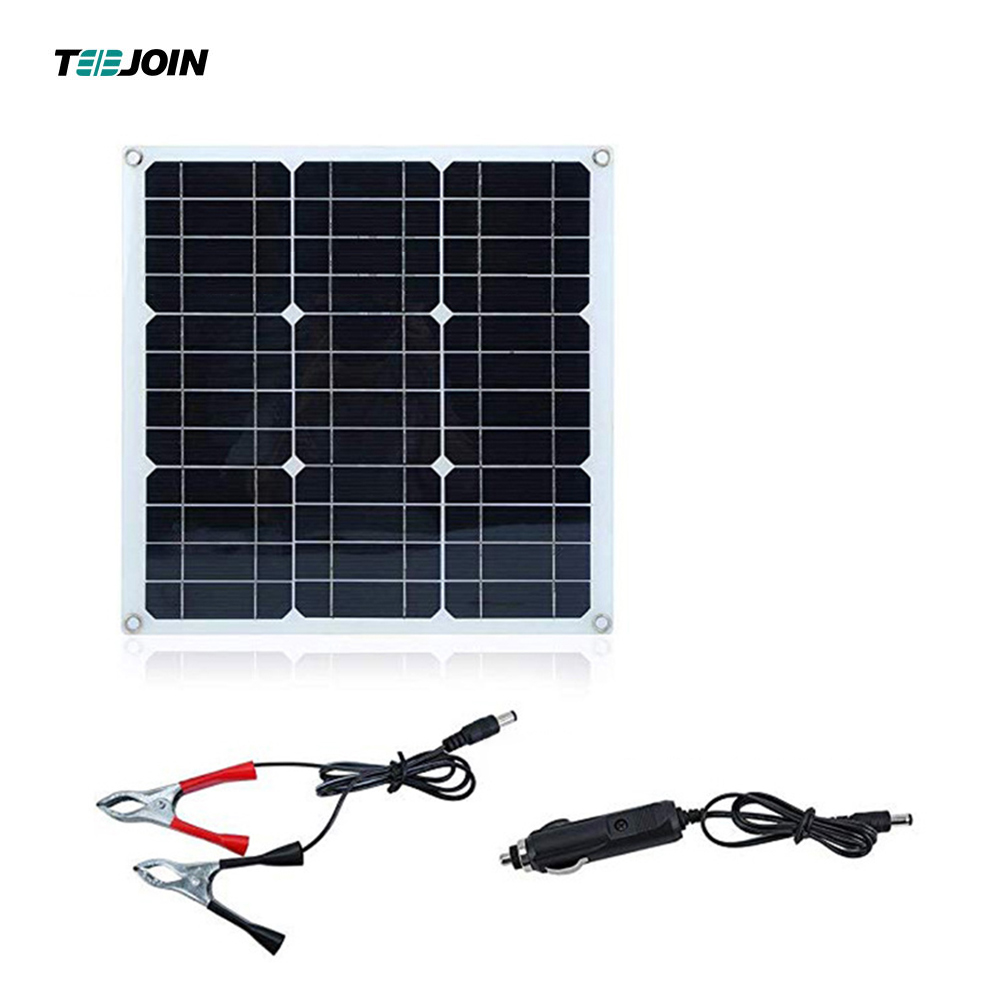

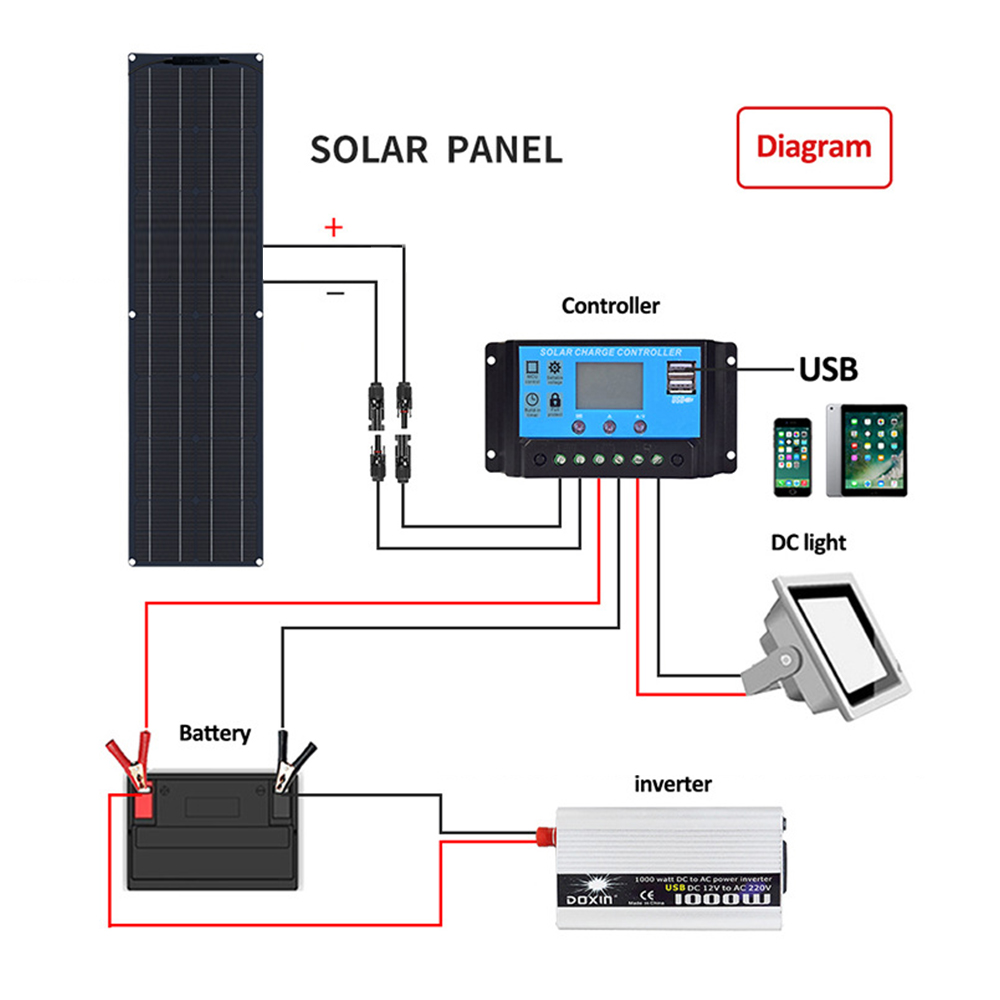

30W Solar Panel with 10/20/30/40/50A Dual USB Solar Panel Regulator Controller etc. for Car Yacht RV Light Charging
Specification:

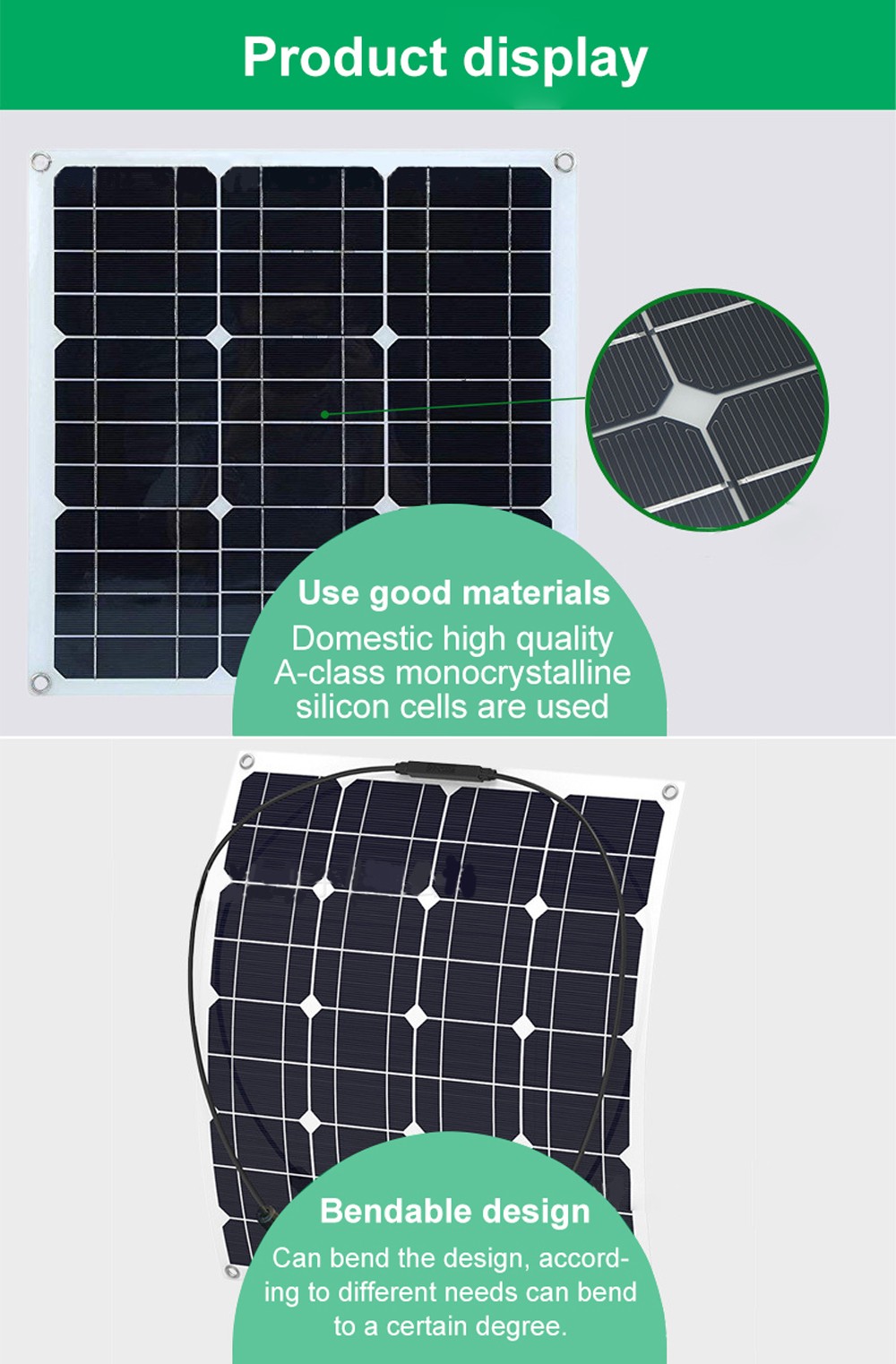

30W Flexible Solar panel: High Efficiency mono silicone
| Product name | 30watt Flexible Solar Panel |
| Power (Pmax): | 30W±0.25W |
| Operating voltage (Vmp): | 18V±0.3V |
| Operating current (Imp): | 1.6A±0.15A |
| Short-circuit current (Isc): | 1.8A±0.15A |
| Open circuit voltage (Voc): | 20V±0.8V |
| Voltage temperature coefficient: | (0.06510±0.15)%/°C |

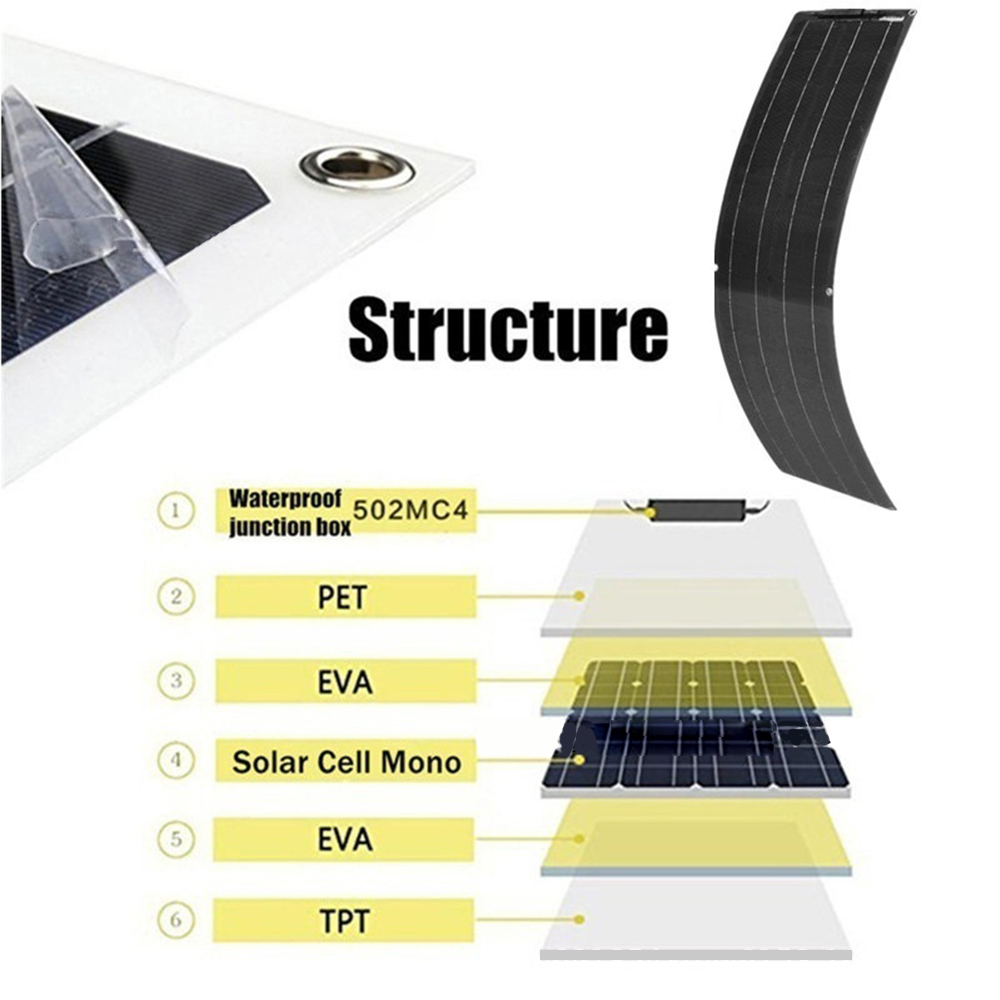

| Material | PET EVA and monocrystalline silicon wafers |
| Current TCR: | - (160±10) mA/°C TCR Power: - (0.5±0.05)%/°C |
| System Voltage: | 20V |
| Ambient Temperature: | -40°C~85°C |
| Air Resistance: | 50psi (2400pascals) |
| Snow Resistance: | 113psi (5400pascals) |

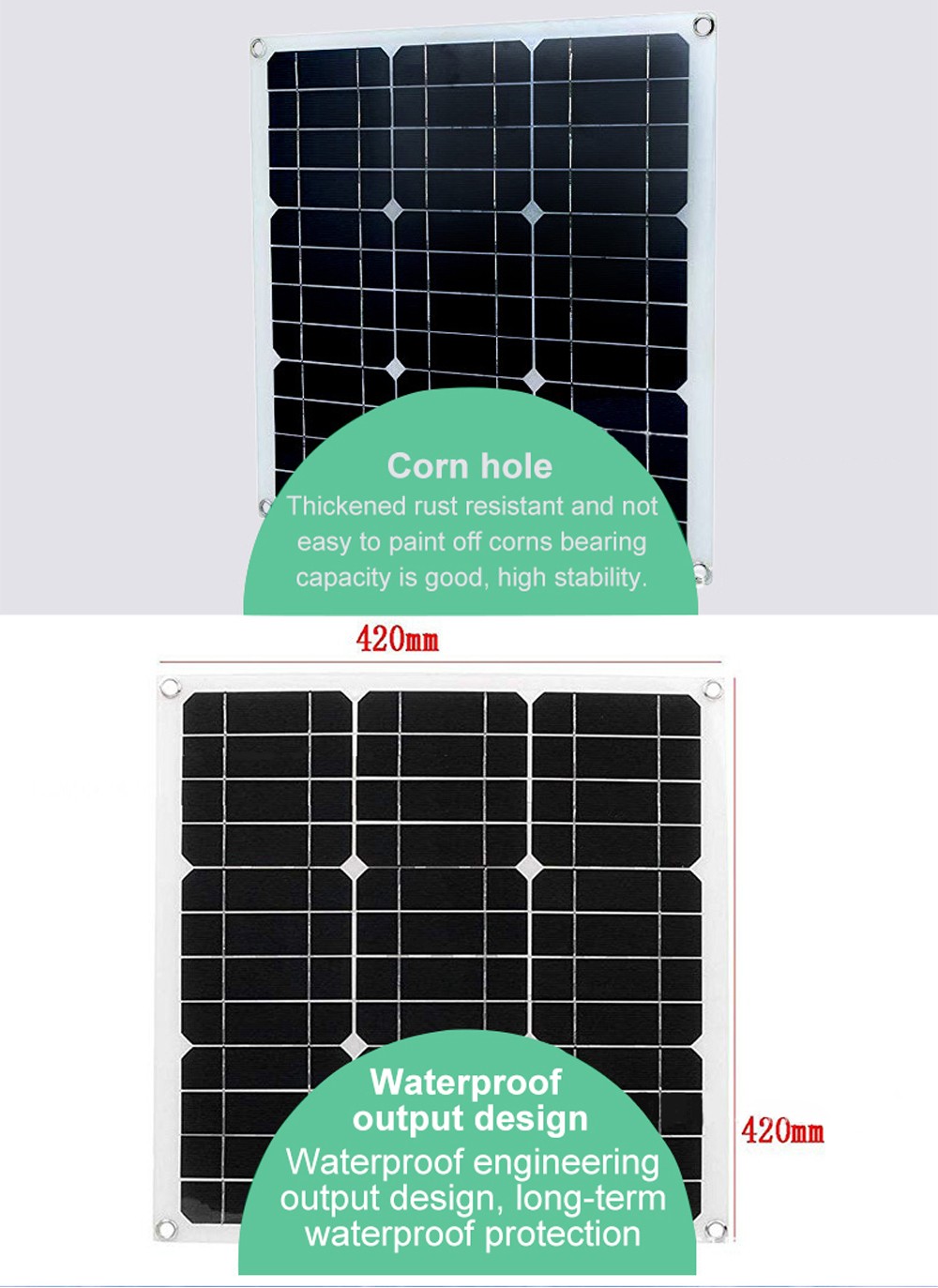

| Product size: | 420 * 420 * 2.5MM |
| Package size: | 435 * 435 * 30MM |
30W Flexible Solar Panel 10A Dual USB
30W Solar Flexible Panel Description:
The 40W Solar Flexible Panel kit is a versatile and efficient solar power solution, ideal for a variety of applications, including recreational vehicles (RVs), boats, and off-grid power systems. This kit offers flexible configurations to meet your energy needs, providing everything you need to harness solar power effectively.
The 30-watt Flexible Solar Panel is a versatile and portable solar panel suitable for gardens and farms. Constructed with PET, EVA, and monocrystalline silicon wafers, it ensures efficient energy conversion. With a rated power of 30 watts, operating voltage of 18V, operating current of 1.6A, and short-circuit current of 1.8A, this solar panel is designed to perform reliably.
The open circuit voltage varies with temperature at (0.06510±0.15)%/°C. Operating at a system voltage of 20V, it can withstand ambient temperatures ranging from -40°C to 85°C. Measuring 420 * 420 * 2.5mm, this lightweight and compact panel is ideal for outdoor use, providing a convenient power source for your outdoor activities.
