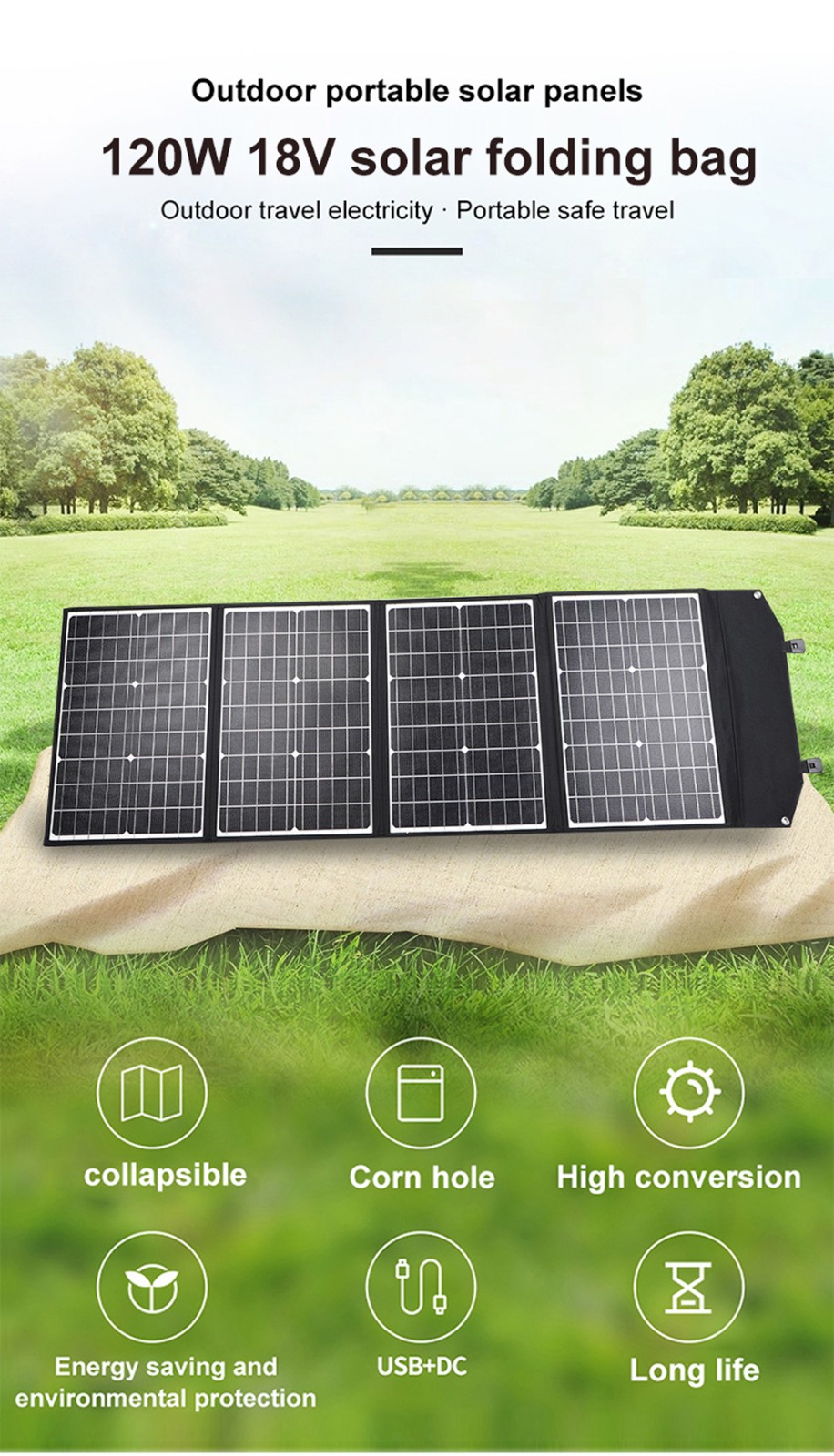

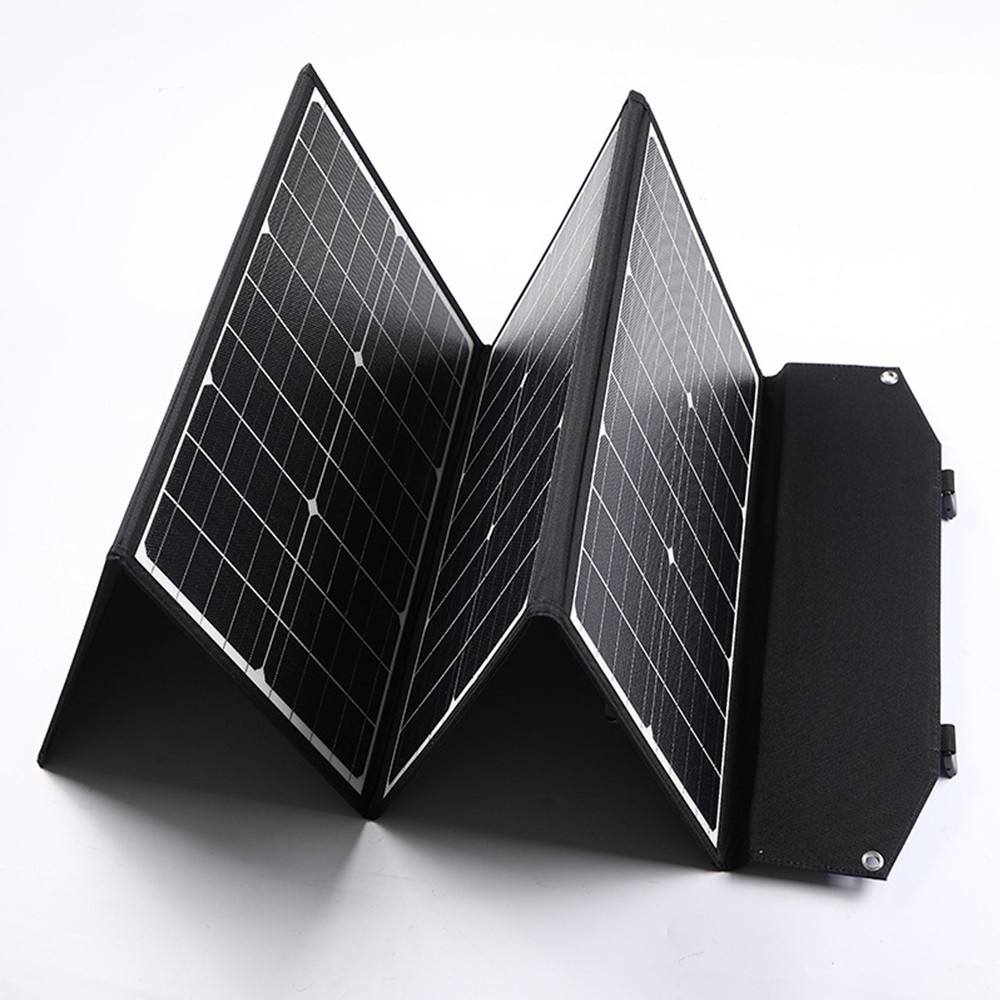

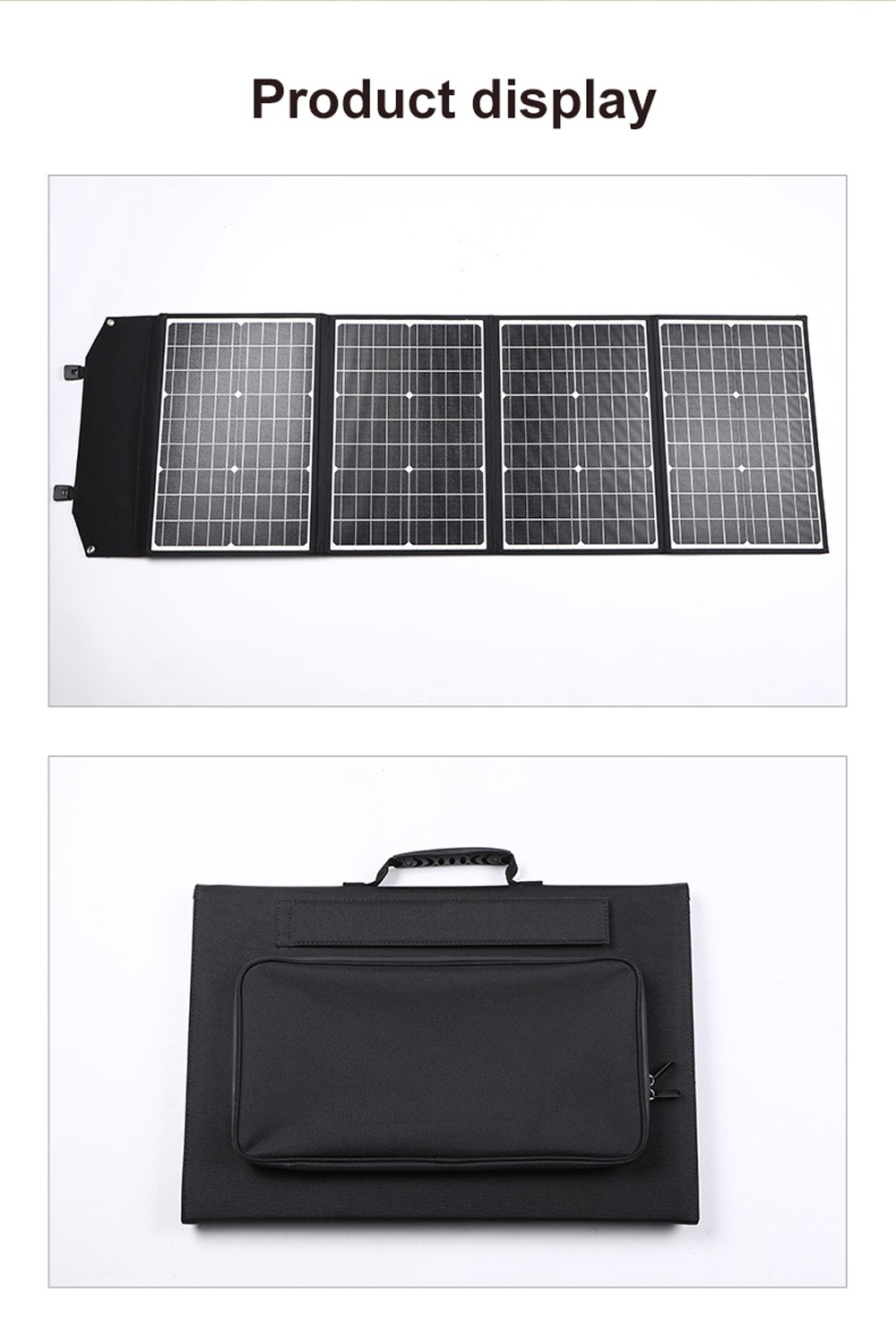

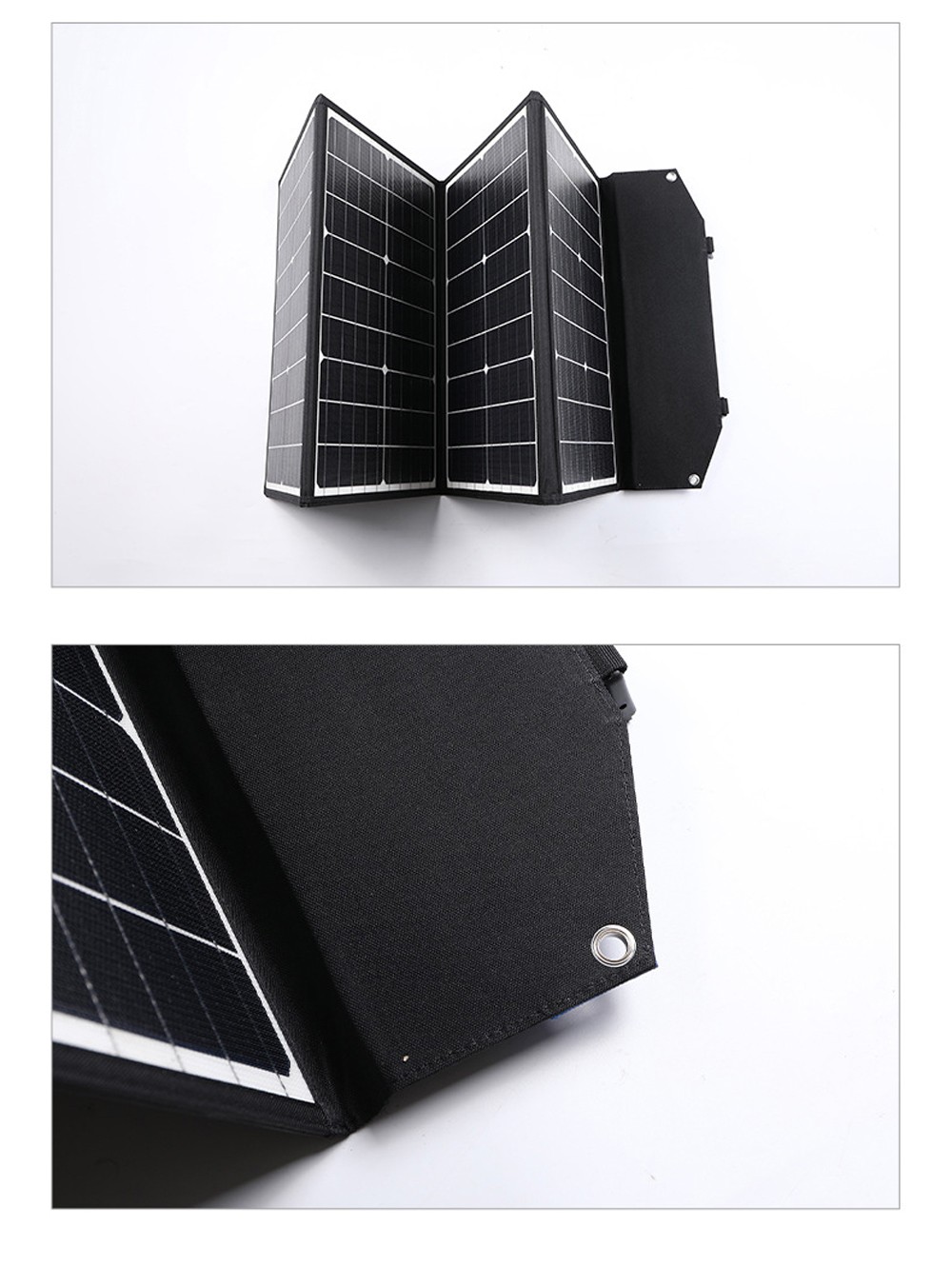

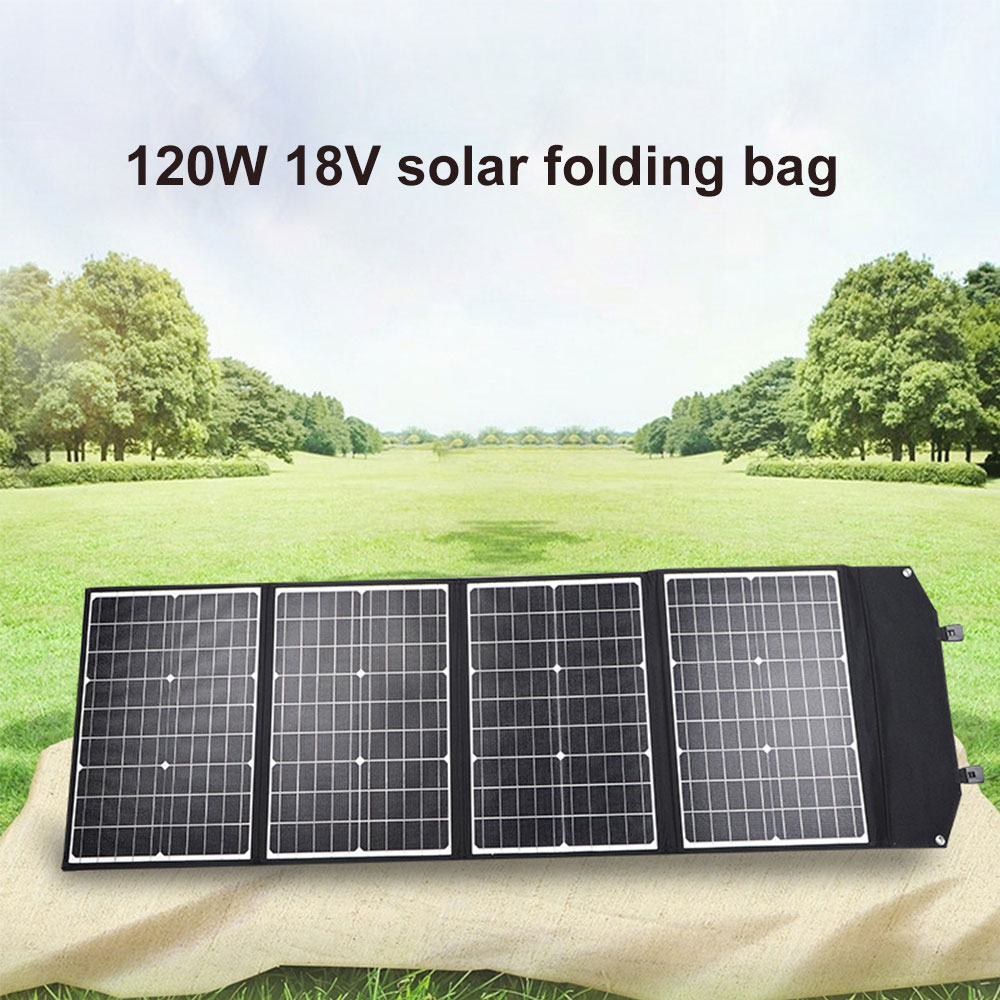

Solar Folding Bag 120W Dual USB 5V12V Outdoor Power Panel
Brand Teejoin
Product origin China
Delivery time 3-7days
Supply capacity 100000000000

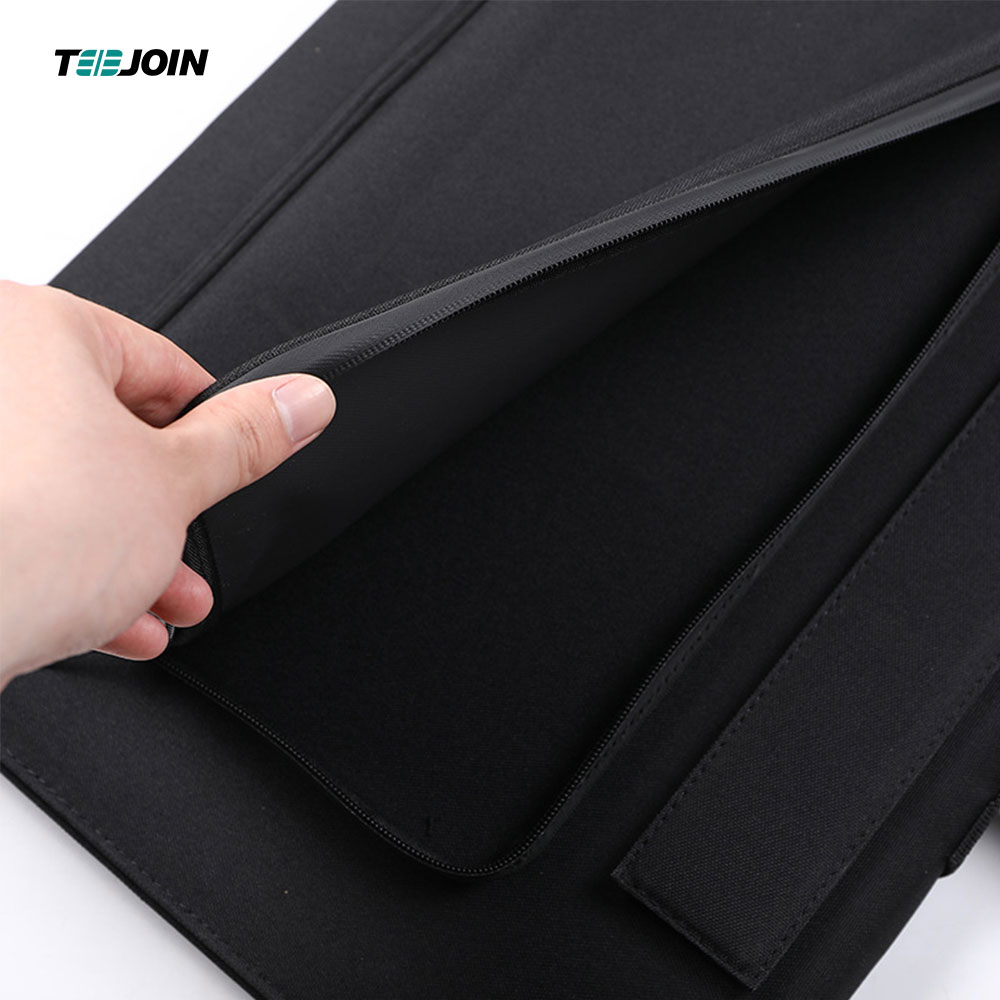

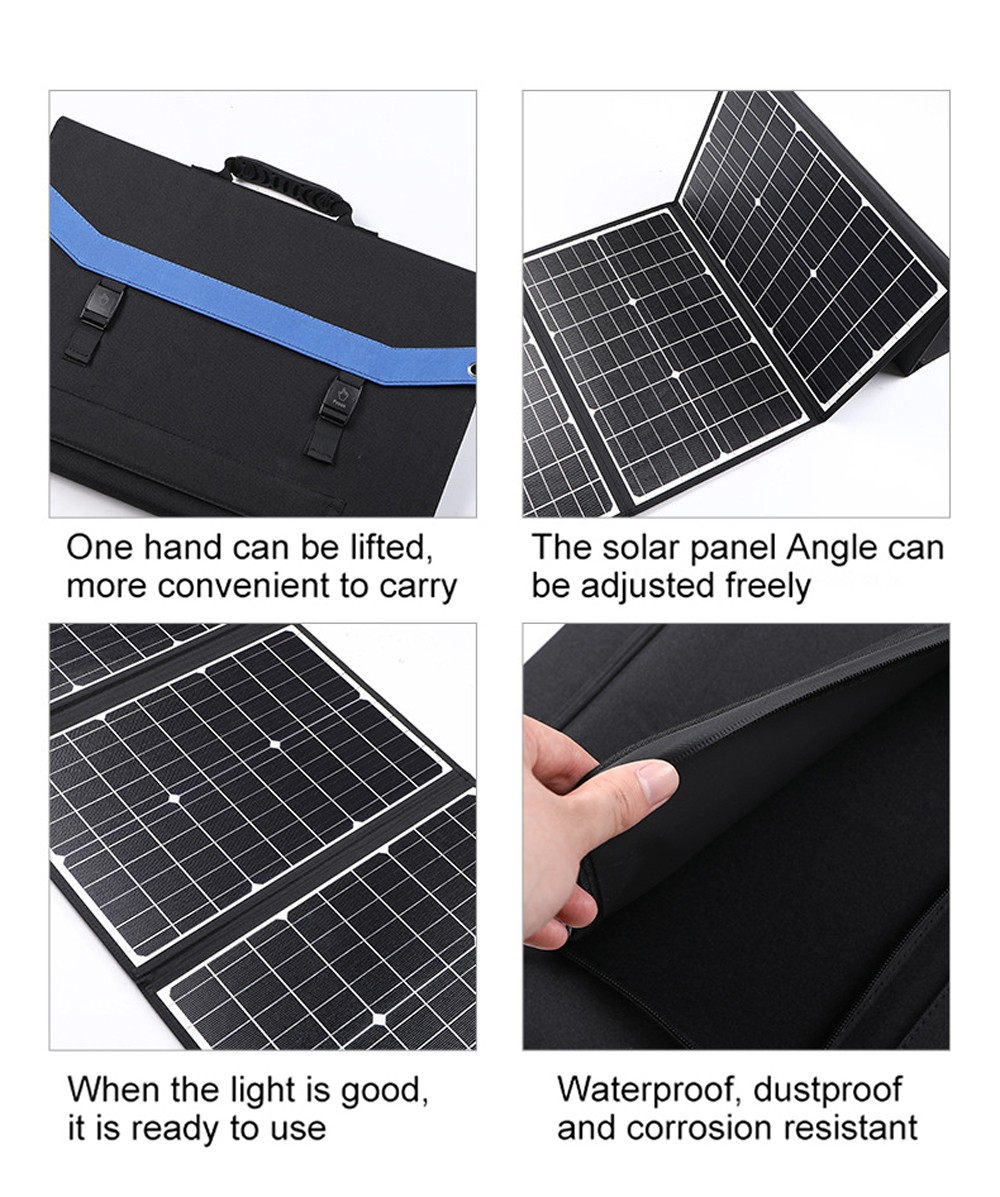

Adopting high efficiency imported monocrystalline silicon solar cells, the power generation efficiency is more than 1.2 times of conventional domestic monocrystalline. b. Adopting A-class component encapsulation technology, thinner, lighter and longer life. c. The surface is made of PET material, which is treated by special process, more wear-resistant and improves the efficiency of sunlight absorption. d. High light transmittance, safe and reliable, no danger of combustion and explosion. e. Portable folding bag design with USB regulator box output, can directly charge 5V devices, compatible with cell phones, digital cameras, MP3 and other 5V devices, can provide 12V device power supply. F. Portable foldable bag can be matched with controller and battery, suitable for RV, home, camping, yacht and many other outdoor scenes. G. Solar portable foldable charging bag with large capacity pockets to organize small mobile power and controller, avoid direct sunlight when charging.
120W Dual USB 5V12V Outdoor Power Panel
Specification

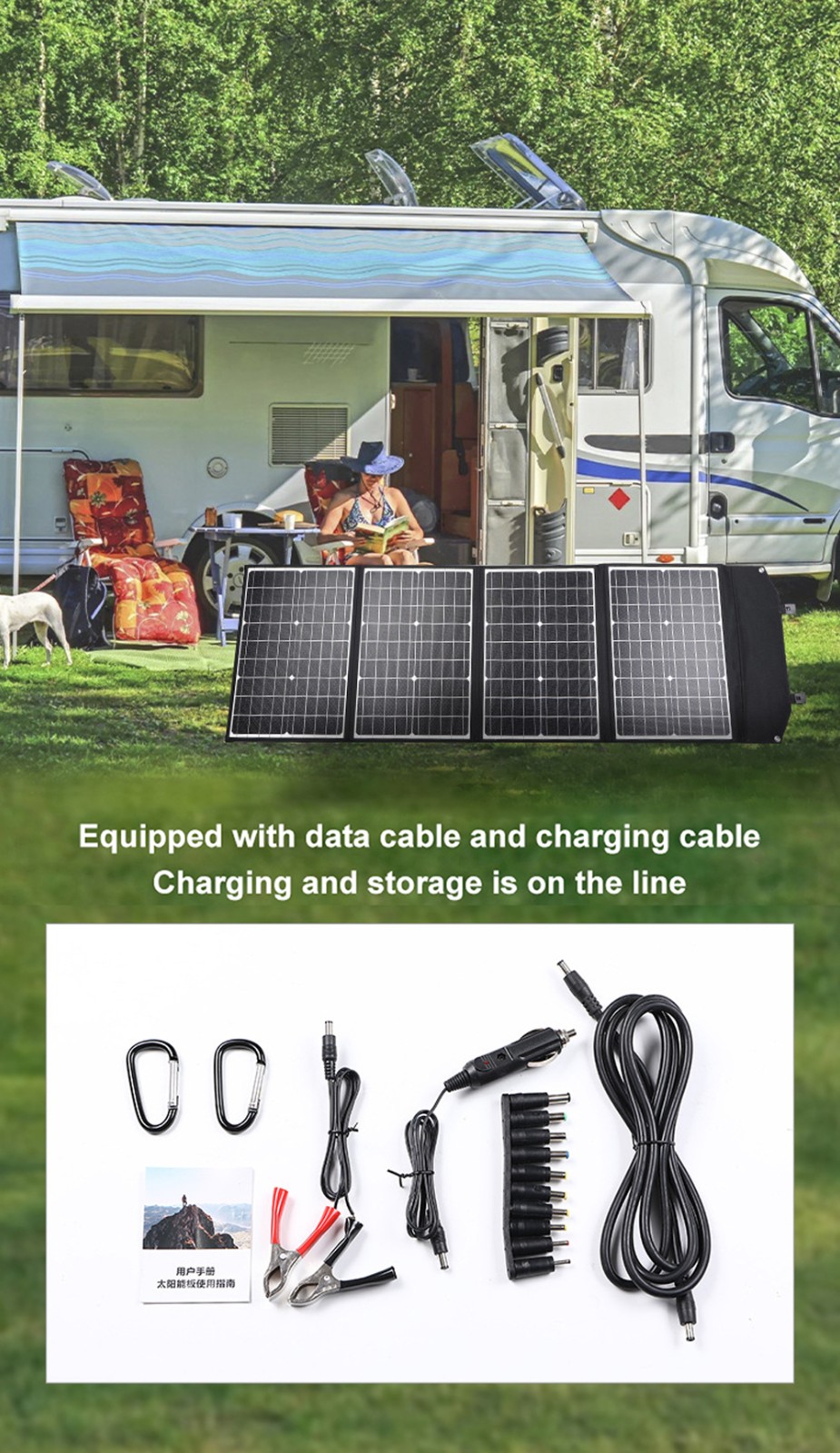

120W Dual USB 5V12V Outdoor Folding Solar Panels are Suitable for：

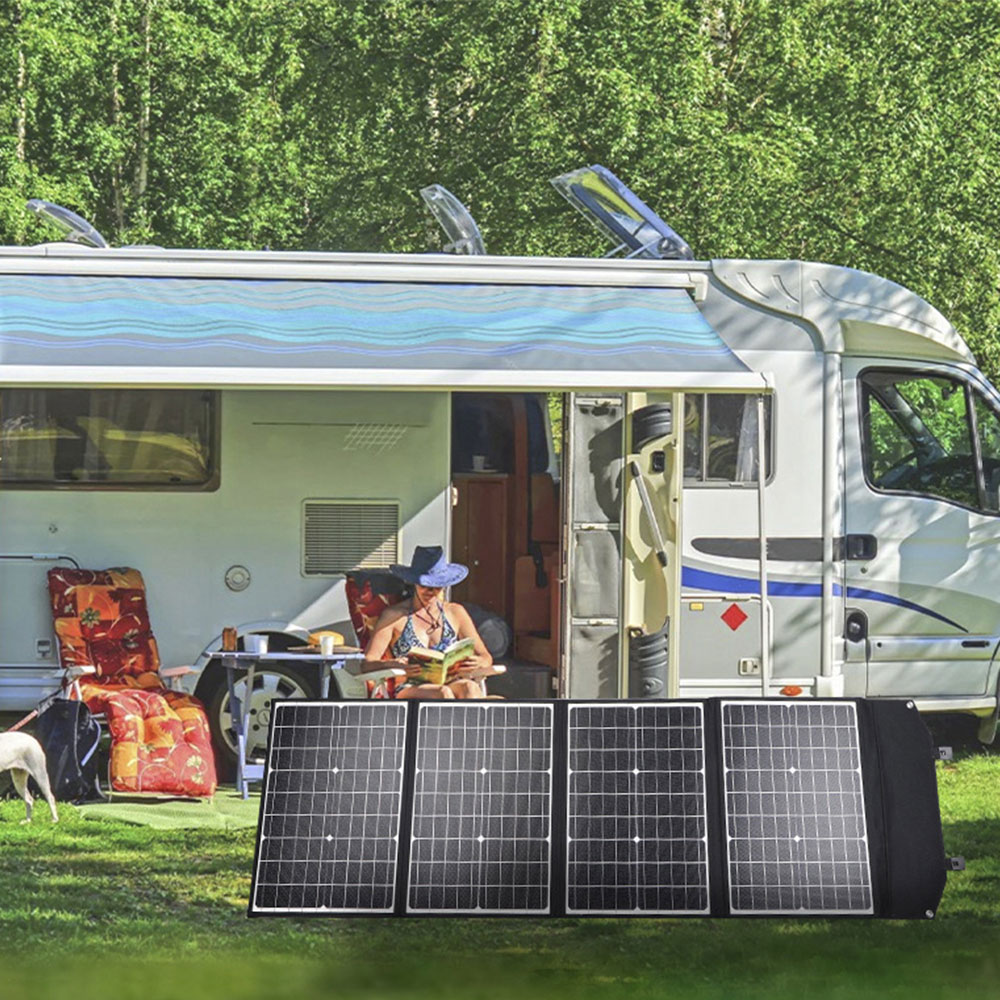

RVs, boats, sailboats, yachts, trucks, cars, coaches, cabins, campers, tents, trailers, pet houses.
Product Description
| Product Name | 120W18V Solar Folding Bag | Model | DJTJ(FSDZST)-412000180 |
| Cells | monocrystalline silicon Conversion rate: 21.5% | Solar encapsulation process | ETFE + EVA2 + crystalline silicon wafer + EVA2 + PCB (white) |
| Fabric | black 600D Oxford waterproof cloth | Power | 120W |
| Working voltage | 18V | Working current | 6.6A |
| Open circuit voltage | 20.34V | Short circuit current | 7.45A |
| Output | |||
USB1:5V/2.5A 9V/2A 12V/1.5A | USB2:5V/2.5A 9V/2A 12V/1.5 A(QC4+/QC4/QC3.0/QC2.0) | TYPE-C:5V/2.5A 9V/2A 12V/1.5A (SCP/FCP/AFC/APPLE/BC1.2) | DC:18V/5A |
| Number of cells | 72 small cells | Current TCR | ±0.05%°C |
| Voltage TCR | -0.33%°C | Module power temperature coefficient: | -0.23%°C |

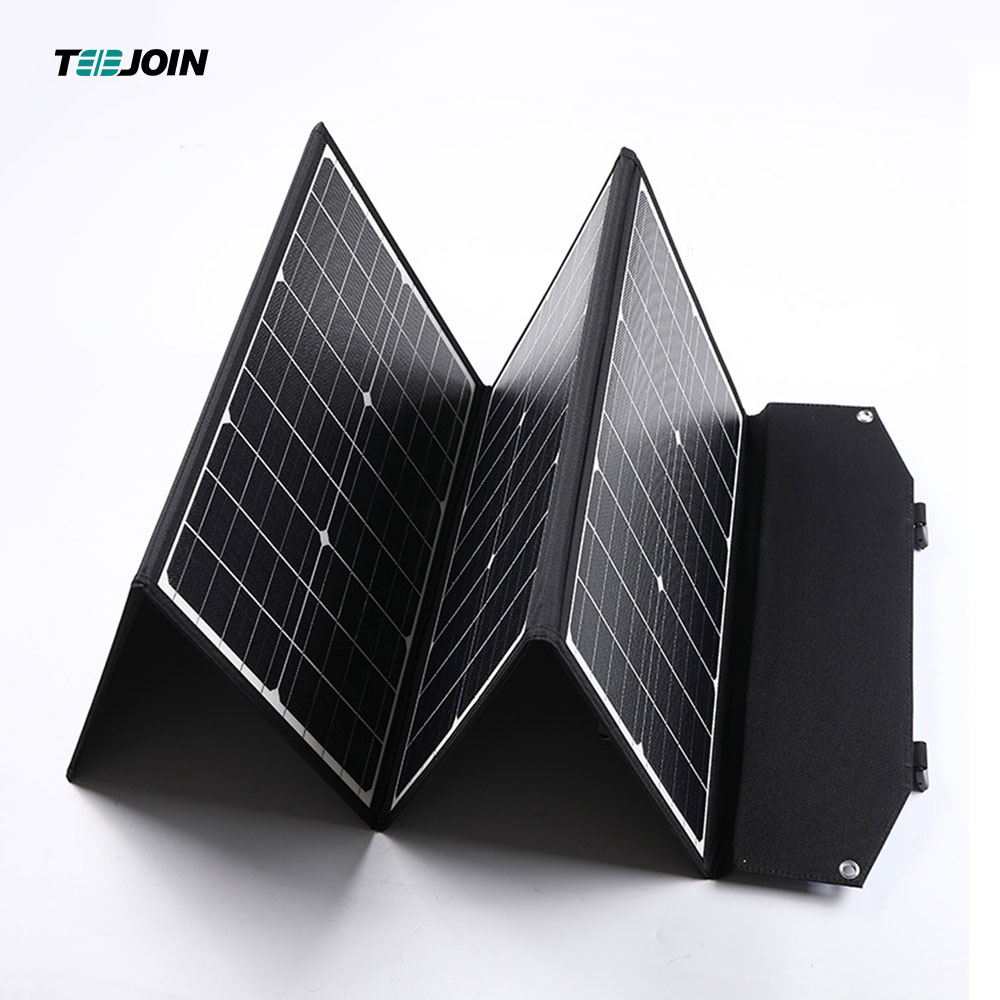

Module operating temperature coefficient | 45°C(±°C) | Folding number | four folds |

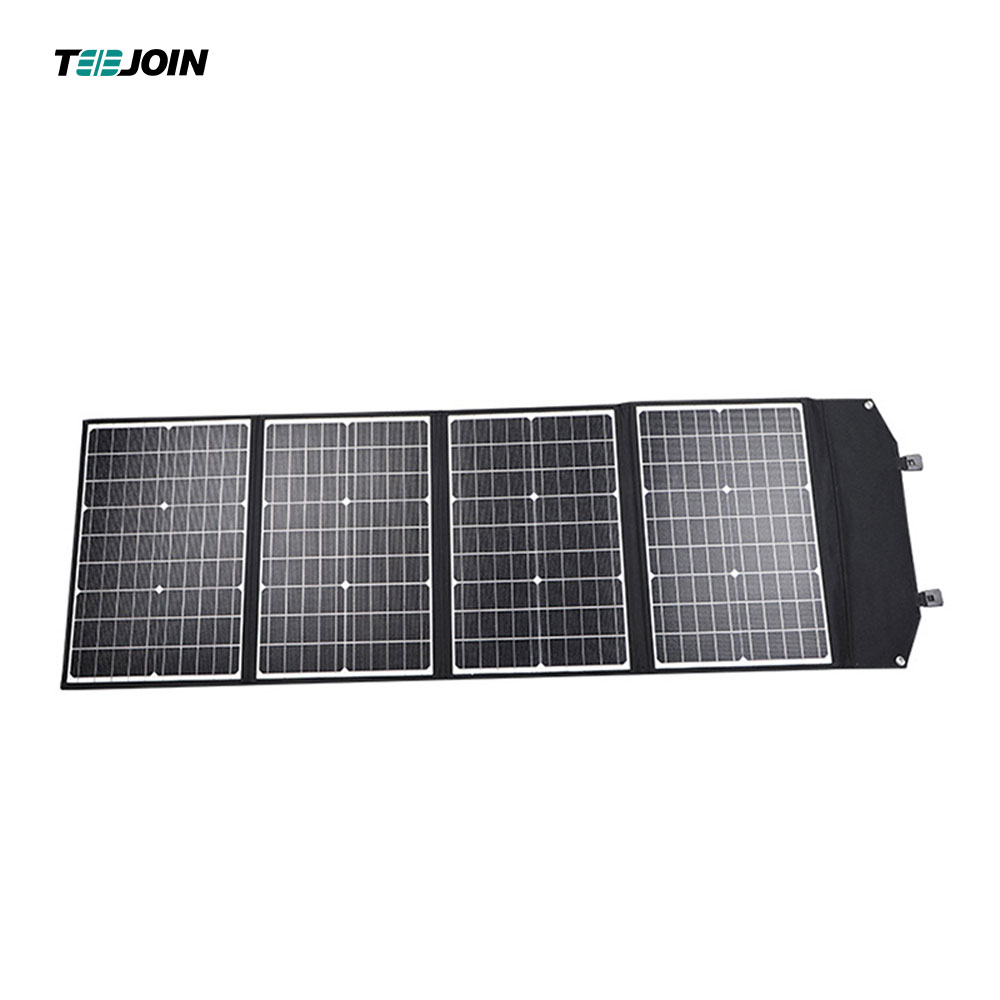

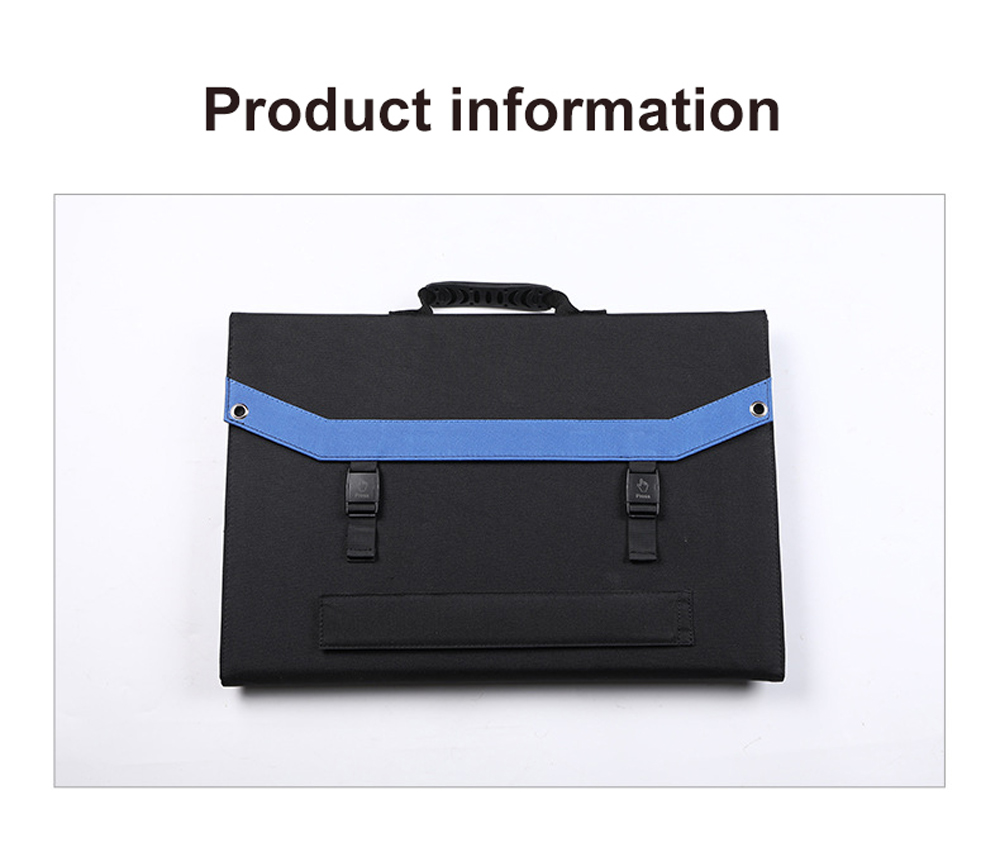

| Size: Expand | 1620*520*8mm | Folded | 520*360*55mm |
| Weight | 4.3kg | Packing size | 575*480*90mm |
| Packing weight | 5.1kg | ||
